In modern mechanical engineering and automation systems, precise linear motion is critical. Whether it’s CNC machining, industrial automation, or medical equipment, many machines rely on a component that can convert rotary motion into accurate, smooth linear movement. One of the most important components fulfilling this role is the ball screw. Understanding what a ball screw is used for can help engineers, buyers, and decision-makers choose the right motion solution for their applications.
This article explains what a ball screw is used for, how it works, its main advantages, and the industries where ball screws play a vital role.
What Is a Ball Screw?

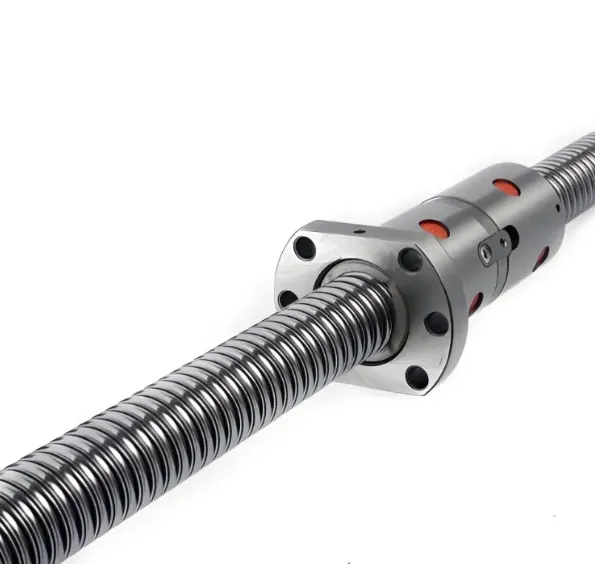

A ball screw is a mechanical linear actuator that converts rotational motion into linear motion with very high efficiency. It consists of three main parts: a screw shaft, a ball nut, and a set of steel balls that circulate between them. Unlike traditional lead screws, ball screws use rolling contact instead of sliding friction.
As the screw shaft rotates, the steel balls roll along the helical grooves between the nut and the screw, allowing the nut to move smoothly along the axis. This rolling motion dramatically reduces friction, resulting in higher efficiency, less wear, and better positioning accuracy.
What Is a Ball Screw Used For in Motion Control Systems?
The primary use of a ball screw is to achieve precise, repeatable, and efficient linear motion. Ball screws are commonly used in systems where accuracy, load capacity, and long service life are essential.
In motion control systems, ball screws are used to:
-
Convert motor rotation into linear displacement
-
Maintain high positioning accuracy
-
Support heavy axial loads
-
Enable smooth and stable movement at various speeds
Because of these characteristics, ball screws are widely adopted in both high-precision equipment and heavy-duty industrial machinery.
Common Applications of Ball Screws
CNC Machines and Machine Tools
One of the most common uses of ball screws is in CNC machines, including milling machines, lathes, and machining centers. In these applications, the ball screw CNC drives the X, Y, and Z axes, ensuring accurate tool positioning and repeatable movement.
High precision and minimal backlash are critical in CNC machining, and ball screws provide both. Their ability to handle high loads while maintaining tight tolerances makes them indispensable in metalworking and manufacturing environments.
Industrial Automation Equipment
Ball screws are widely used in industrial automation, such as:
-
Automated assembly lines
-
Pick-and-place robots
-
Packaging machinery
-
Conveyor positioning systems
In these systems, ball screws enable fast, precise, and synchronized linear motion. Their high efficiency reduces energy consumption, while their durability supports continuous operation in demanding production settings.
Robotics and Linear Actuators
In robotics, ball screws are often used in linear actuators that require high thrust and accuracy. Robotic arms, gantry robots, and Cartesian robots frequently rely on ball screws to control linear axes.
Ball screws allow robots to achieve smooth acceleration, accurate positioning, and stable movement, which are essential for tasks like welding, inspection, and material handling.
Semiconductor and Electronics Manufacturing
The semiconductor and electronics industries demand ultra-high precision. Ball screws are used in wafer handling systems, inspection platforms, and precision stages where micron-level accuracy is required.
Low vibration, minimal backlash, and consistent motion make ball screws ideal for cleanroom environments and sensitive manufacturing processes.
Medical and Laboratory Equipment
Ball screws are also used in medical devices and laboratory equipment, such as:
-
Medical imaging machines
-
Adjustable hospital beds
-
Automated testing equipment
-
Surgical positioning systems
In these applications, reliability, smooth motion, and quiet operation are especially important. Ball screws provide controlled linear movement while maintaining long-term stability.
Why Are Ball Screws Preferred Over Lead Screws?
Ball screws are often chosen over traditional lead screws because of several key advantages.
High Efficiency
Ball screws can achieve efficiency levels of up to 90% or more, compared to around 30–50% for lead screws. This means less energy loss and lower motor torque requirements.
High Precision and Accuracy
Thanks to rolling contact and tight manufacturing tolerances, ball screws offer excellent positioning accuracy and repeatability. This is crucial for precision machining and automated systems.
Low Friction and Long Service Life
Reduced friction leads to less heat generation and wear, extending the service life of the ball screw assembly and reducing maintenance costs.
High Load Capacity
Ball screws can support significant axial loads, making them suitable for both light-duty precision equipment and heavy industrial machinery.
What Industries Use Ball Screws the Most?
Ball screws are used across a wide range of industries, including:
-
Manufacturing and machine tools
-
Automation and robotics
-
Aerospace and defense
-
Semiconductor and electronics
-
Medical and healthcare equipment
-
Automotive production lines
Any industry that requires accurate, repeatable linear motion can benefit from ball screw technology.
How to Choose the Right Ball Screw for Your Application
When selecting a ball screw, several factors should be considered:
-
Required load capacity
-
Desired positioning accuracy
-
Speed and acceleration
-
Operating environment (dust, temperature, lubrication)
-
Service life and maintenance requirements
Choosing the correct ball screw size and configuration ensures optimal performance and long-term reliability.
Conclusion: What Is a Ball Screw Used For?
In summary, a ball screw is used to convert rotational motion into precise, efficient linear motion in a wide variety of mechanical and automated systems. From CNC machines and industrial automation to medical equipment and robotics, ball screws play a crucial role in modern engineering.
Their high efficiency, precision, and durability make them a preferred solution wherever accurate linear movement is required. As automation and precision manufacturing continue to advance, the importance of ball screws in industrial applications will only continue to grow.
