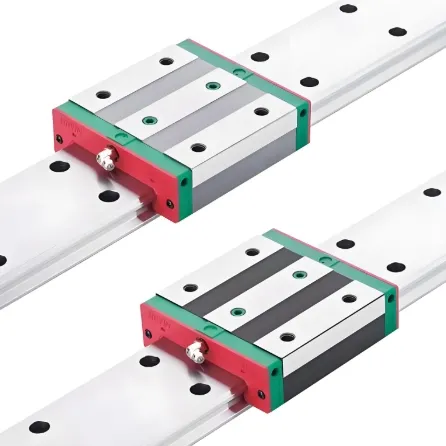

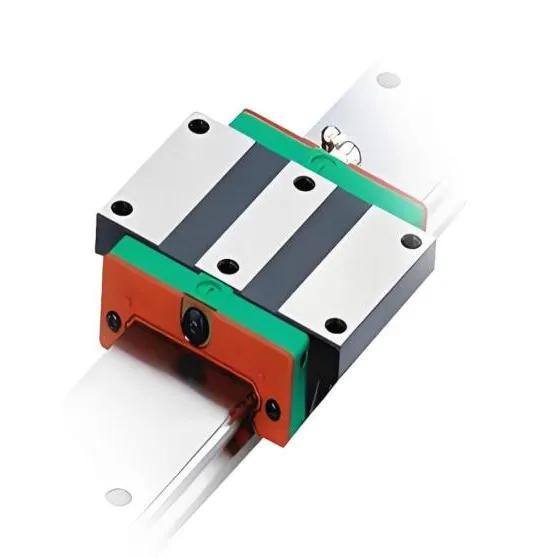

We Series Linear Guides We15 We20 Heavy Duty Linear Bearing Slides

Four column steel ball 45 ° contact design:

Adopting a four column steel ball to bear the load, with a 45 ° contact angle to achieve radial, anti radial, and lateral load characteristics, and with automatic centering function, it can absorb installation surface assembly errors and ensure high-precision operation.

Optimization of Wide Gauge Low Height Structure:

By increasing the width of the slide rail (about 1.5 times the standard) and reducing the combination height, the torsional impedance capability is significantly improved, supporting single axis high torque loads and adapting to space limited scenarios.

Strengthen installation stability:

The slide rail adopts a two row installation bolt fixing design, greatly improving the overall installation strength and reducing the risk of deformation during operation.

Low friction and long lifespan:

The rolling friction method significantly reduces the friction coefficient, reduces ineffective motion, improves equipment accuracy and mechanical efficiency, has high hardness and corrosion resistance, and is suitable for long-term high load working conditions.

Precision equipment: precision measuring instruments, semiconductor manufacturing equipment (such as chip positioning and handling).

Industrial automation: single axis robotic arms, automated production lines.

Heavy load transportation: devices such as material transportation systems and rotating workbenches that require single axis torque bearing.
