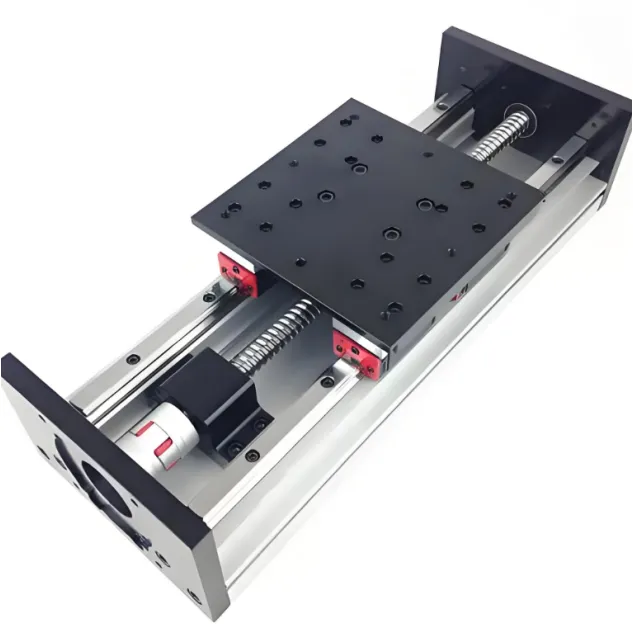

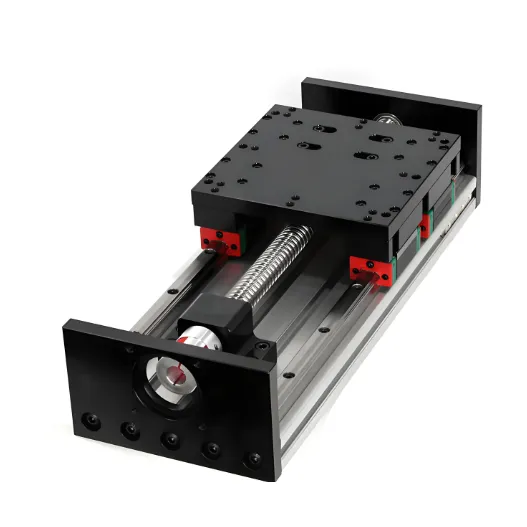

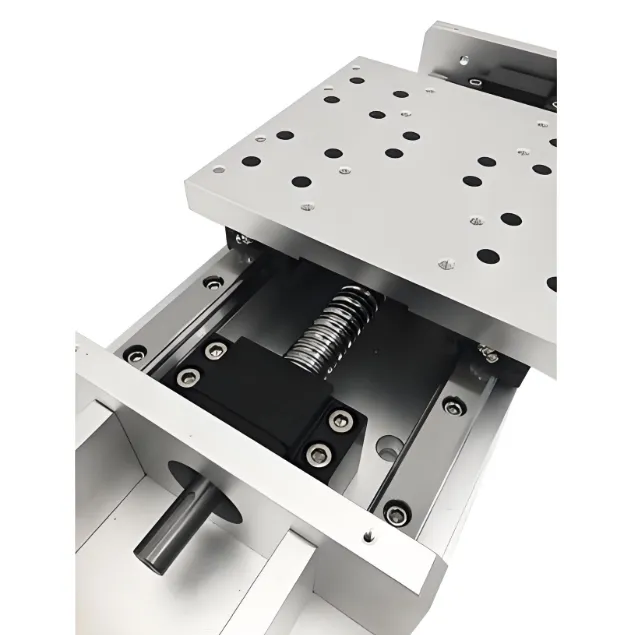

Heavy Duty Double Rail LDG16 Horizontal /Vertical Ball Screw And Linear Guide Sliding Table Linear Module

1.High precision transmission

Using ball screw drive, the repeated positioning accuracy reaches ± 0.02mm, meeting the requirements of micrometer level machining. Four directional equal load design ensures stability under multi-directional loads.

2.Modularity and flexibility

Support single axis or multi axis combination, expandable to XYZ Cartesian coordinate system. Provide two driving modes: screw drive and belt drive, suitable for different speeds and load requirements.

3.Efficient sports performance

The fastest speed can reach 0.5m/s (screw type), with fast acceleration and sensitive dynamic response. The effective travel range is 1-500mm (longer travel can be customized), with vertical and horizontal loads.

4.Environmental adaptability

Optional dust-proof sealing design, suitable for clean rooms or industrial environments. The lubrication system supports manual or automatic forced lubrication to extend its service life.

Precision machining: processes that require high-precision positioning, such as laser cutting and PCB drilling.

Automated detection: Equipped with visual sensors to achieve surface defect detection of products.

Logistics sorting: rapid positioning tasks such as barcode scanning and small component assembly.
