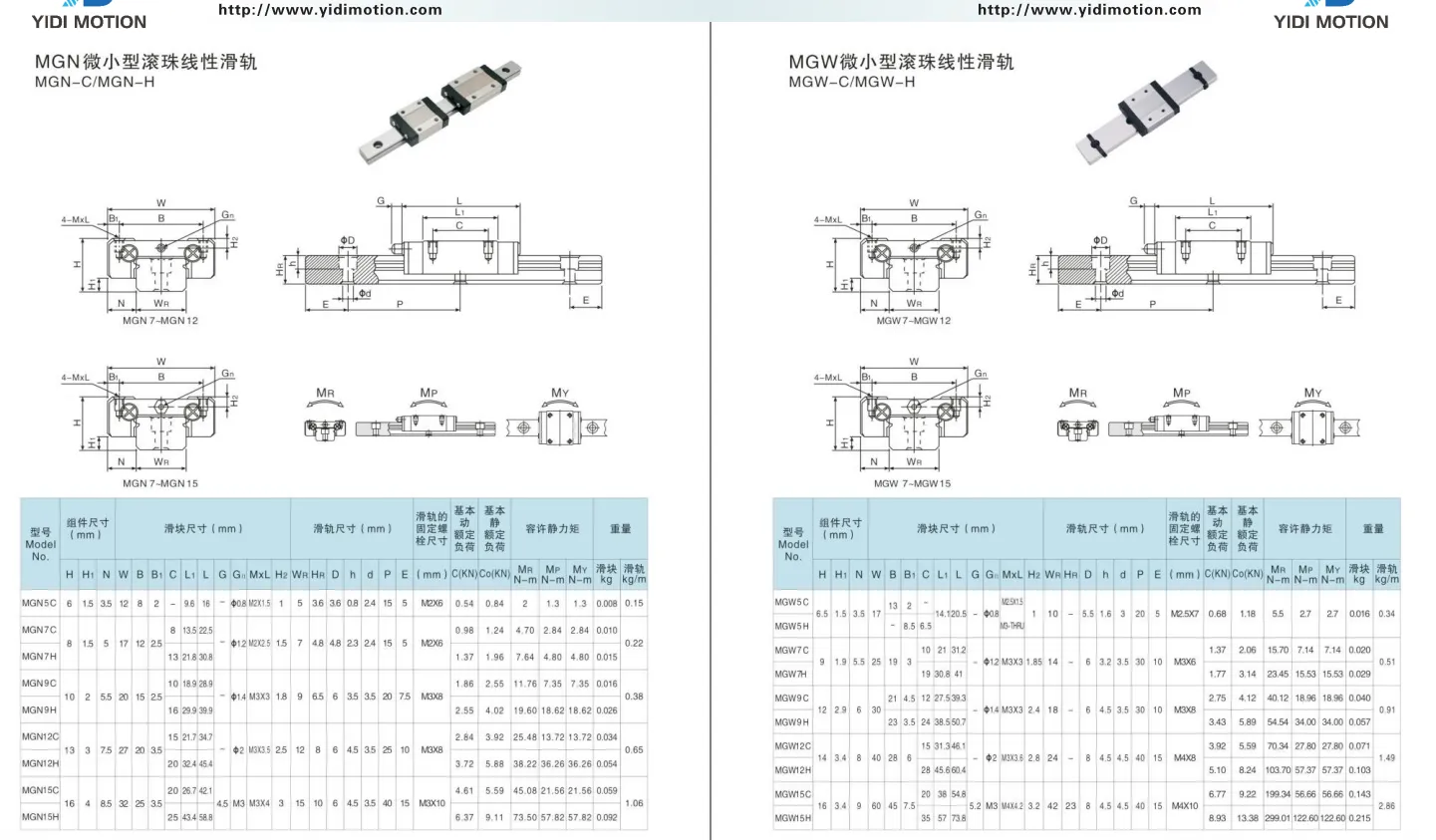

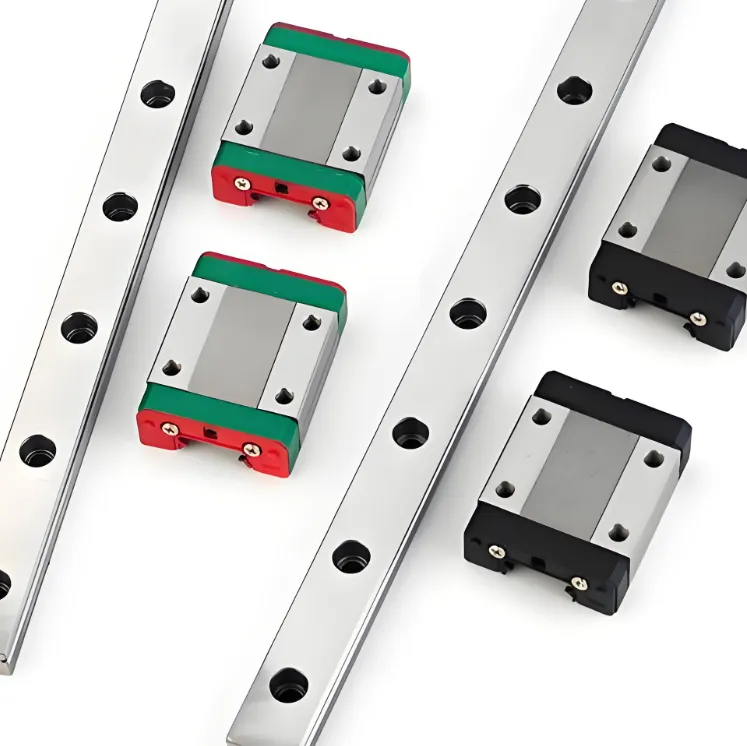

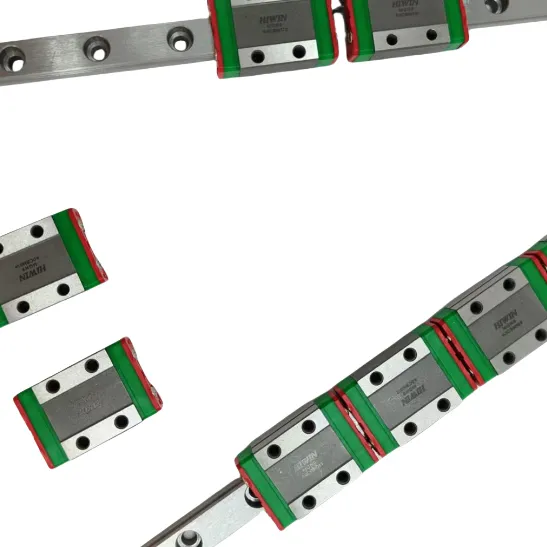

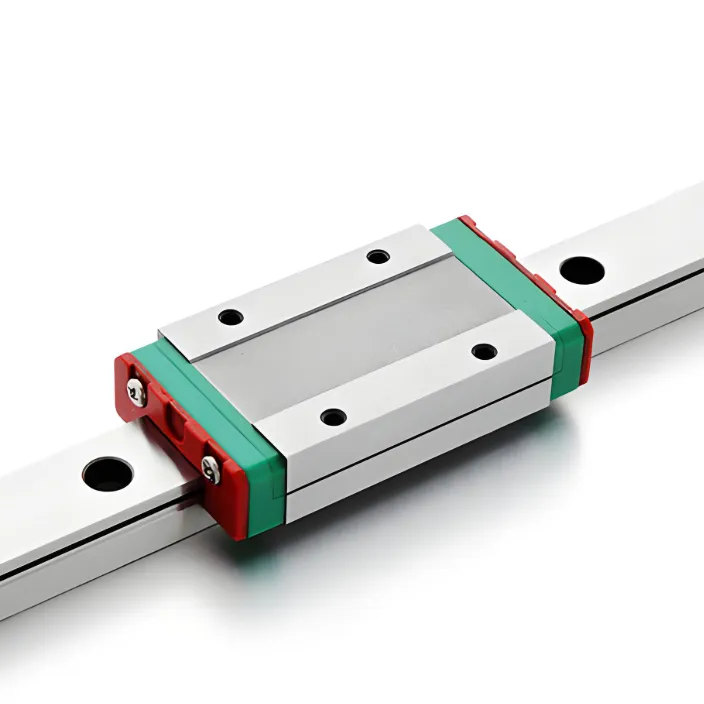

MG Series Micro Bearing Linear Guide Mgn7 Mgn9 Stainless Steel Linear Guide Rails

Lightweight structure: The slider and slide rail adopt ultra-thin design, reducing weight by more than 20% and suitable for miniaturized devices;

Four directional equal load: 45 ° Goethe style groove+four point contact steel ball design, can evenly bear radial, anti radial, and transverse longitudinal loads, with strong resistance to eccentric loads;

Rust prevention and material selection: available in stainless steel (slider/slide rail/steel ball all series rust prevention) version to meet different environmental requirements;

Low noise and high lubrication: Optimized the steel ball return path and oil circuit design, reduced friction resistance, and significantly lower operating noise than conventional guide rails.

Electronic manufacturing: IC packaging machine, PCB placement machine positioning platform

Medical equipment: Endoscopic robotic arm, microinjection mechanism

Robots: Collaborative robot joints, SCARA end effectors

Testing instruments: optical testing platform, wafer probe platform
