Product Features
High load capacity:
Due to the fact that the rolling surface of the steel ball is processed into a circular groove shape that is approximately equal to the curvature radius of the steel ball, and is constructed with angular contact, it has a large load capacity in both radial and torque directions.
The clearance in the rotation direction is "zero":
By using two opposite steel ball rows with a contact angle of 20 °, the protruding part of the spline shaft is clamped and a pre pressed angular contact structure is applied, so that the clearance in the rotation direction can be zero, thereby improving rigidity.
High rigidity:
Due to the large contact angle and appropriate preloading, high torque rigidity and torque rigidity can be achieved.
Easy maintenance:
The ball retainer structure supports the spline shaft to be pulled away without scattering the steel balls
-
Product Application
Industrial robots' robotic arms and frame columns
Spot welding machine
Riveting machine
Binding machine
Automatic filling machine
Various XY recorders
Automatic twisting machine
Optical measuring equipment
-
Product Detail
-
-

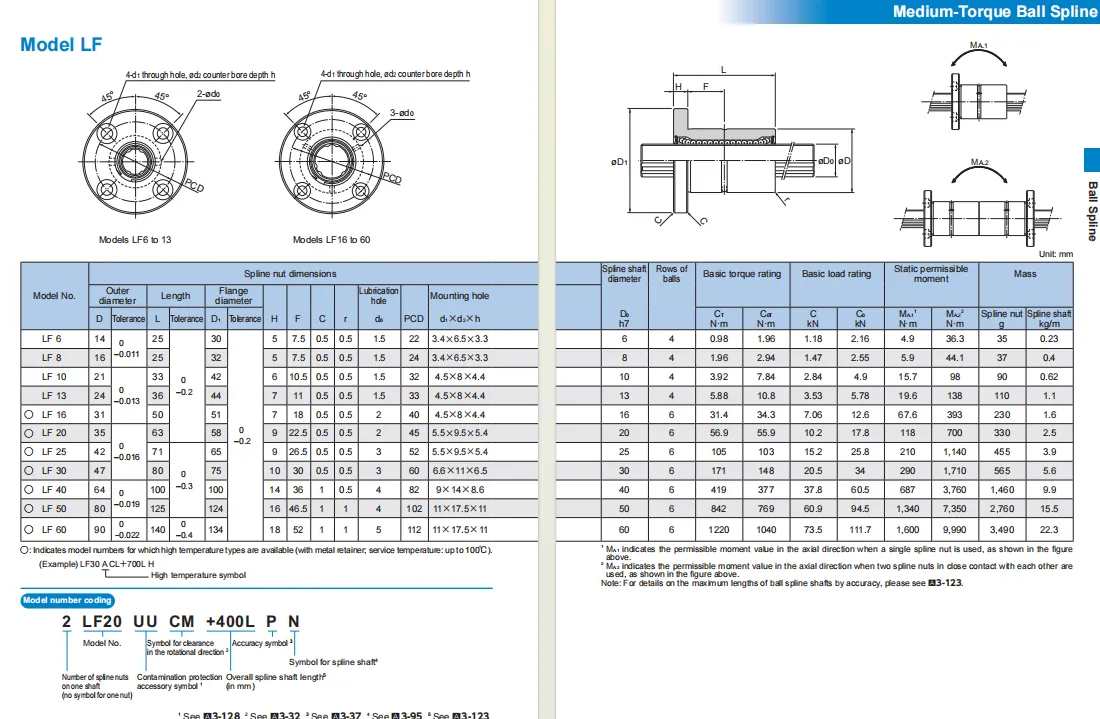

Product Parameters
-
