The KK Series Linear Module represents a breakthrough in industrial automation technology, combining modular design with advanced engineering to deliver exceptional performance. Developed by HEBEI YIDI IMPORT AND EXPORT TRADING CO.,LTD., this product exemplifies the synergy between precision mechanics and innovative manufacturing. This article explores the product's core features, technical specifications, applications, and the company's commitment to quality, supported by authoritative references from the National Institute of Standards and Technology (NIST).
Modular Design: Flexibility and Scalability
The KK Series Linear Module is engineered with a modular architecture that allows seamless integration and expansion. This design philosophy addresses the evolving needs of modern industrial environments, where adaptability is key. By enabling the combination of multiple units, the system optimizes space utilization while reducing long-term maintenance costs.

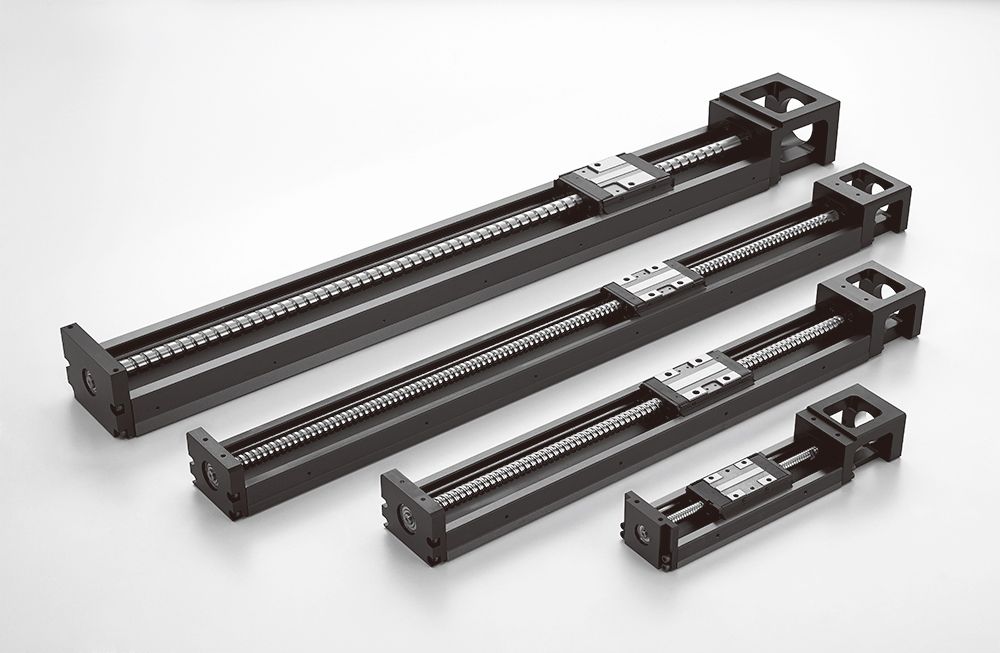

As illustrated in the accompanying image, the ball screw linear actuator is a central component of this system, demonstrating the product's versatility in achieving high-precision linear motion.
Core Components and Technical Specifications
The KK Series Linear Module integrates three critical components: transmission elements, guiding systems, and drive units. Each element is designed to work in harmony, ensuring reliability and efficiency.
Transmission Components
- Ball Screws: Ideal for high-precision applications, ball screws convert rotational motion into linear movement with minimal friction.
- Synchronous Belts: Suitable for long-stroke scenarios, these belts provide smooth and quiet operation.
- Gear Racks: Designed for heavy-duty applications, gear racks offer robust performance under high load conditions.
Guiding Components
The system employs steel linear guide rails, which ensure smooth and accurate movement. These rails are engineered to withstand wear and tear, maintaining precision over extended periods.
Drive Units
Available drive options include servo motors, stepper motors, or cylinders, catering to diverse operational requirements. This flexibility allows users to select the most appropriate drive mechanism based on their specific application needs.
| Technical Specification | Details |
|---|---|
| Stroke Range | Varies from 50mm to 2000mm |
| Load Capacity | Up to 500kg (depending on model) |
| Speed Range | 0.1m/s to 5m/s |
| Repeatability | ±0.02mm (standard), ±0.01mm (high-precision variants) |
| Drive Options | Servo motor, Stepper motor, Cylinder |
Applications in Industrial Automation
The KK Series Linear Module is tailored for a wide range of industrial applications, including but not limited to:
- Automated Assembly Lines: The system's precision and reliability make it ideal for high-speed assembly tasks.
- Material Handling: Its robust design ensures efficient movement of heavy loads in logistics and manufacturing settings.
- Precision Machining: The high repeatability of the module supports accurate cutting, drilling, and milling operations.
- Medical Equipment: The system's quiet operation and precision are critical in applications such as imaging devices and surgical robots.

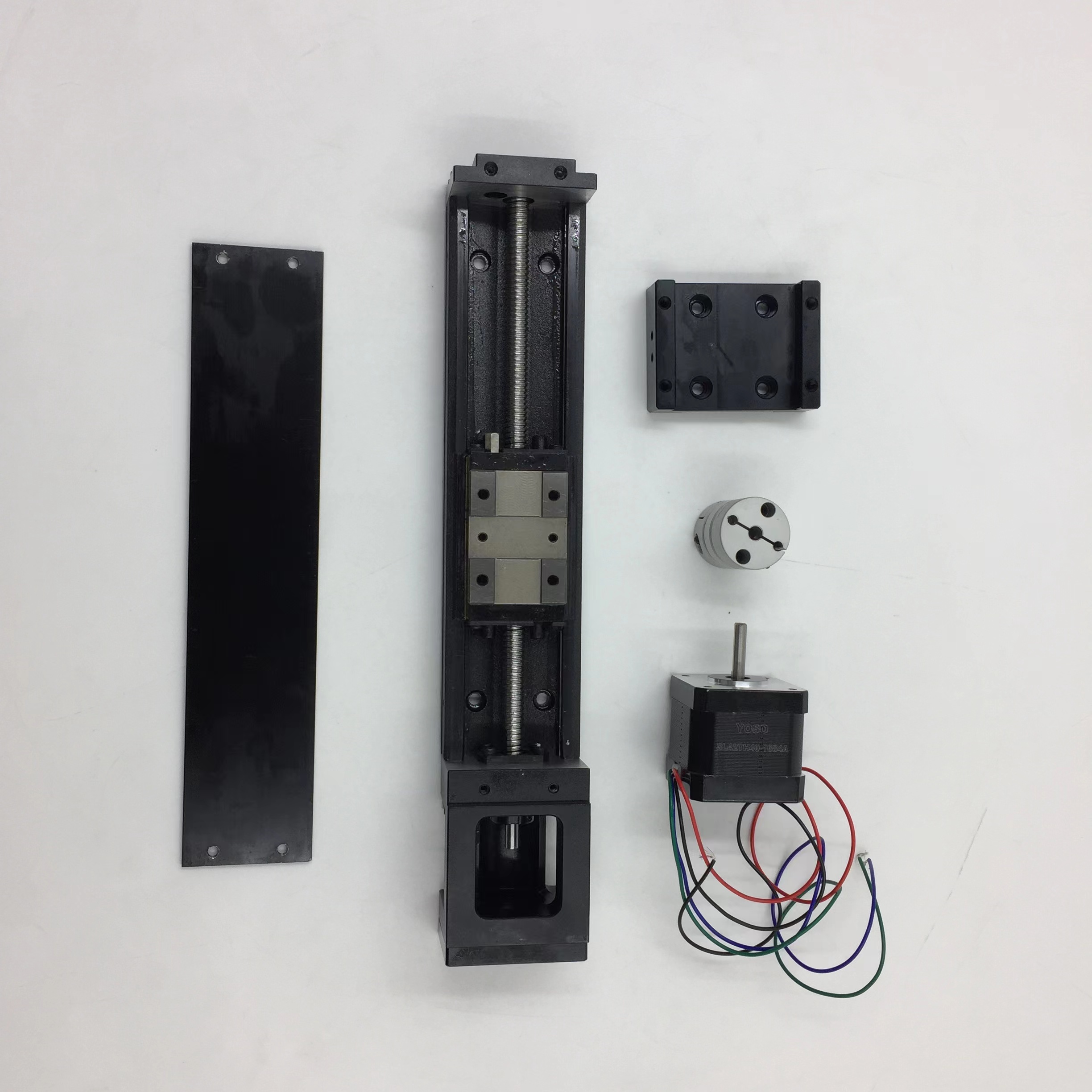

The image above highlights the linear module, showcasing its compact design and adaptability to various industrial environments.
Company Background: HEBEI YIDI IMPORT AND EXPORT TRADING CO.,LTD.
Based in Hebei, China, HEBEI YIDI IMPORT AND EXPORT TRADING CO.,LTD. is a leading provider of motion control solutions. With over a decade of experience, the company has established itself as a trusted partner for manufacturers seeking reliable and innovative automation systems. Their commitment to quality is reflected in their adherence to international standards, including those set by the National Institute of Standards and Technology (NIST).
The image below illustrates the linear module in action, demonstrating its integration into a typical industrial setup.
Quality Assurance and NIST Standards
The KK Series Linear Module aligns with the principles of precision and reliability emphasized by the National Institute of Standards and Technology (NIST). As a global leader in metrology, NIST provides the framework for ensuring the accuracy and consistency of measurement systems, which is critical for industrial automation.
According to NIST's guidelines on metrology and standards, "Precision and repeatability are fundamental to the success of automated systems, as they directly impact production efficiency and product quality." The KK Series Linear Module exemplifies these principles through its advanced engineering and rigorous testing protocols.
NIST's role in developing standards for industrial automation underscores the importance of adopting technologies that meet these benchmarks. By integrating NIST-recommended practices, HEBEI YIDI ensures that their products contribute to the broader goal of enhancing manufacturing capabilities worldwide.
Conclusion: A Trusted Solution for Modern Industry
The KK Series Linear Module is a testament to the advancements in industrial automation technology. Its modular design, versatility, and adherence to high standards make it an ideal choice for a wide range of applications. Backed by the expertise of HEBEI YIDI IMPORT AND EXPORT TRADING CO.,LTD. and aligned with NIST's principles of precision, this product is poised to drive efficiency and innovation in modern manufacturing.
