The KK Series Linear Module represents a cutting-edge solution in industrial automation, combining modular design, high precision, and versatility to meet the demands of modern manufacturing. Developed by Hebei Yidi Import and Export Trading Co., Ltd., this product is engineered to enhance productivity, reduce maintenance costs, and adapt to diverse operational requirements. This article explores the features, technical specifications, applications, and the company's commitment to innovation.
Product Overview
The KK Series Linear Module is a modular motion system designed to integrate linear guides, transmission components, and drive units into a single, compact unit. It is available in two primary variants: the Ball Screw Linear Actuator and the Linear Motion Module. These modules are tailored to deliver precise linear or curved motion, making them ideal for applications ranging from semiconductor manufacturing to automotive assembly lines.

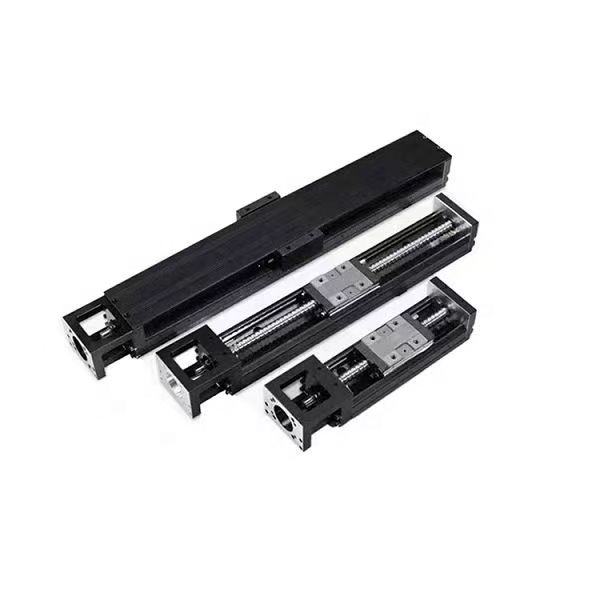

Figure 1: Modular design of the KK Series Linear Module
Key Features and Advantages
The KK Series Linear Module stands out due to its innovative design and robust performance. Here are the core features and benefits:
Modular Design for Flexibility
The modular architecture of the KK Series allows for seamless combination and expansion, enabling users to customize systems based on specific requirements. This design not only saves space but also reduces long-term maintenance costs by simplifying component replacement and upgrades.
Wide Range of Configurations
Available in multiple stroke lengths, load capacities, and drive modes, the KK Series caters to a broad spectrum of industrial applications. Users can choose between ball screw, synchronous belt, or gear rack drive systems, depending on the need for precision, speed, or heavy-duty performance.

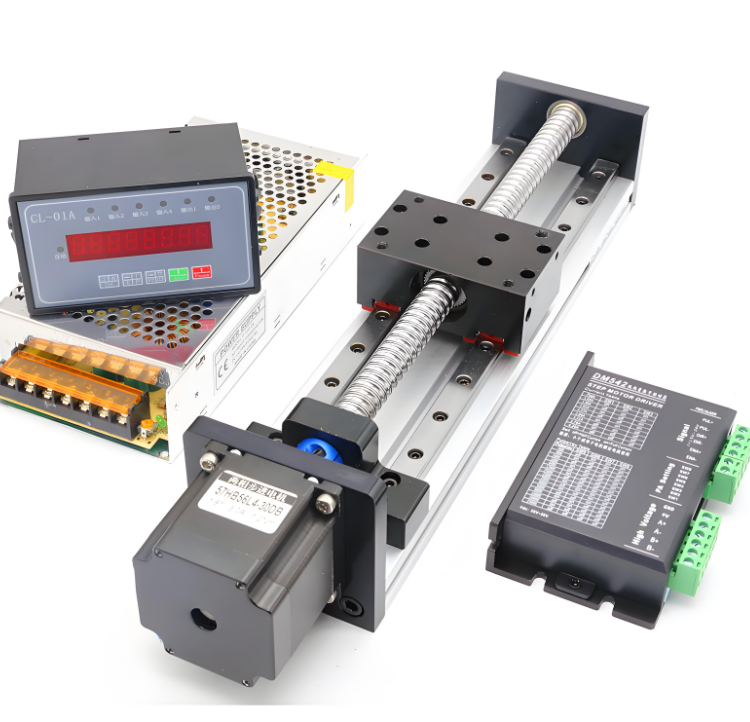

Figure 2: Ball Screw Linear Actuator in action
High Precision and Reliability
Engineered with steel linear guide rails and advanced servo motors, the KK Series ensures high-precision motion control. This level of accuracy is critical in industries such as electronics and medical device manufacturing, where even minor deviations can lead to significant quality issues.
Scalability and Cost Efficiency
The ability to expand and reconfigure the system reduces the need for entirely new setups, making it a cost-effective solution. This scalability is particularly beneficial for businesses that require adaptability in their production lines.
Technical Specifications
The following table summarizes the key technical parameters of the KK Series Linear Module:
| Parameter | Details |
|---|---|
| Stroke Length | Customizable, ranging from 100mm to 2000mm |
| Load Capacity | Up to 500 kg (varies by model) |
| Drive Modes | Ball screw, synchronous belt, gear rack |
| Speed Range | 0.1 m/s to 5 m/s (dependent on drive type) |
| Repeatability | ±0.01 mm (ball screw variant) |
| Power Supply | 24V DC or 380V AC (customizable) |
Applications in Industrial Automation
The versatility of the KK Series Linear Module makes it suitable for a wide range of applications. Some of the primary use cases include:
Automotive Manufacturing
In automotive assembly lines, the module is used for precise positioning of components, such as engine parts and body panels. Its high load capacity and reliability ensure efficient and consistent production.
Electronics and Semiconductor Industry
The ball screw linear actuator variant is ideal for handling delicate components in semiconductor manufacturing, where precision and cleanliness are paramount. The module's ability to operate in controlled environments enhances product quality.
Figure 3: Samsung Linear LED Module integration
Medical Device Production
In the medical sector, the KK Series supports the assembly of devices requiring high accuracy, such as surgical instruments and diagnostic equipment. Its modular design allows for easy integration into existing workflows.
Logistics and Packaging
The module's scalability and adaptability make it a valuable asset in automated packaging and sorting systems. It enables efficient handling of diverse product sizes and weights, improving overall throughput.
Company Background: Hebei Yidi Import and Export Trading Co., Ltd.
Hebei Yidi Import and Export Trading Co., Ltd. is a leading provider of industrial automation solutions, with a focus on precision motion control systems. Established with a commitment to innovation and quality, the company has become a trusted partner for manufacturers worldwide. Their expertise in linear modules and related technologies is reflected in the design and performance of the KK Series.
As highlighted by the National Institute of Standards and Technology (NIST), the importance of precision engineering in industrial automation cannot be overstated. NIST's research on precision engineering standards underscores the role of high-quality components like the KK Series in ensuring operational efficiency and product reliability.
Conclusion
The KK Series Linear Module by Hebei Yidi Import and Export Trading Co., Ltd. exemplifies the convergence of innovation and functionality in industrial automation. Its modular design, precision engineering, and adaptability make it a versatile solution for modern manufacturing challenges. As industries continue to evolve, the KK Series stands as a testament to the company's dedication to advancing automation technologies.
