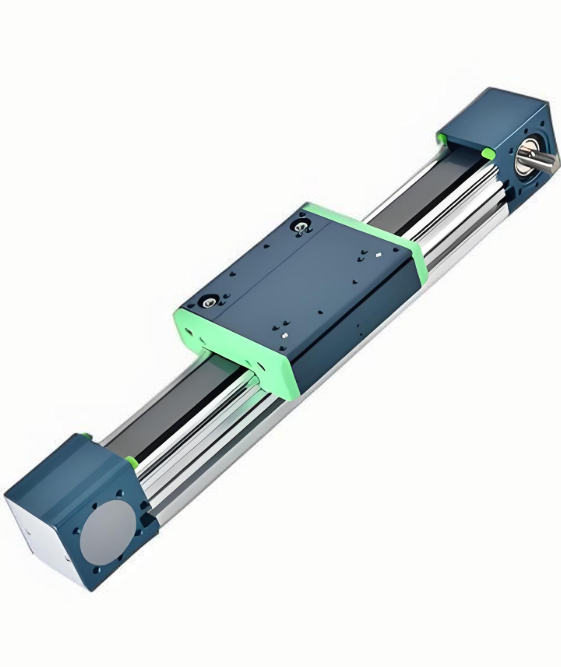

‌Engineers' Choice: LD4010 Silent belt module for 24/7 Precision

Industry Trends in Precision Motion Control

The global market for linear motion systems is experiencing significant growth, driven by an accelerating trend towards automation, robotics, and advanced manufacturing. Key drivers include the need for increased productivity, reduced operational costs, and enhanced precision in production lines. According to recent market analysis, the global industrial automation market is projected to reach USD 395.7 billion by 2027, growing at a CAGR of 9.3% from 2020 to 2027. This expansion fuels demand for sophisticated linear modules that offer not only speed and accuracy but also specialized features such as silent operation and compact design for integration into confined spaces.

Specific trends influencing the development of products like the Silent Belt Module LD4015 Single-Axis Linear Module include:

• Miniaturization and Compact Design: As industrial equipment becomes more sophisticated, there is a persistent demand for smaller, more integrated components that do not compromise on performance.
• Energy Efficiency: Reducing power consumption remains a critical objective for manufacturers, leading to a preference for modules designed for lower energy usage without sacrificing force or speed.
• Silent Operation: Noise pollution is a growing concern in many industrial and laboratory environments. Modules that offer significantly reduced operational noise enhance worker comfort and are crucial for sensitive applications.
• Enhanced Precision and Repeatability: Advanced manufacturing processes, particularly in electronics, medical, and semiconductor industries, require ever-higher levels of positioning accuracy and repeatability.
• Smart Manufacturing and IoT Integration: The push for Industry 4.0 demands components capable of seamless integration into broader automation networks, with potential for real-time monitoring and predictive maintenance.

These trends underscore the importance of innovative linear motion solutions that can adapt to evolving industrial requirements, providing a foundation for the strategic development of advanced modules.

Manufacturing Process of the Silent Belt Module LD4015

The production of the Silent Belt Module LD4015 Single-Axis Linear Module involves a meticulously controlled process, combining cutting-edge engineering with robust material selection to ensure superior performance and longevity. Each stage is designed to meet stringent quality standards.

Materials Specification

• Structural Extrusions: High-strength aluminum alloy (typically 6063-T5 or 6061-T6) is used for the main body, chosen for its excellent strength-to-weight ratio, corrosion resistance, and thermal conductivity. Anodizing provides an additional protective and aesthetic finish.
• Driving Belt: Precision-engineered polyurethane (PU) belt with steel tension members. This choice ensures high tensile strength, minimal elongation, excellent wear resistance, and crucially, quiet operation due to its material properties and tooth profile design.
• Bearings & Guiding Elements: High-precision linear guide rails and blocks are typically constructed from hardened stainless steel or alloy steel, ensuring smooth motion, high load capacity, and extended service life. Sealed bearings minimize maintenance requirements.
• Pulleys: Machined aluminum or steel, often with a specialized coating to reduce friction and enhance belt grip, contributing to overall system efficiency and silent operation.

Key Manufacturing Stages (Process Flow)

• CNC Machining: Core components are precision-machined using multi-axis CNC machines to achieve micron-level tolerances, critical for ensuring smooth movement, minimal backlash, and long-term accuracy.
• Surface Treatment: Anodizing of aluminum profiles enhances hardness, wear resistance, and corrosion resistance, particularly important for applications in harsh environments such as those found in petrochemical or metallurgy.
• Precision Assembly: Carried out in cleanroom conditions, where linear guides, bearings, and the belt drive system are meticulously integrated. Special attention is paid to belt tensioning and parallelism of guide rails to prevent premature wear and ensure silent, smooth operation.

Quality Control & Testing Standards

Every Silent Belt Module LD4015 Single-Axis Linear Module undergoes rigorous testing to comply with international standards. This includes adherence to ISO 9001 quality management systems. Individual modules are subjected to:

• Geometric Accuracy Tests: Straightness, parallelism, and flatness are measured to sub-micron levels, conforming to ISO 230-2 standards for machine tool accuracy.
• Dynamic Performance Tests: Velocity, acceleration, and deceleration profiles are verified under various load conditions to ensure consistent performance. Noise levels are measured using specialized acoustical equipment to confirm silent operation.
• Life Cycle & Endurance Testing: Modules are run through millions of cycles to simulate extended use, evaluating wear characteristics and predicting service life (MTBF - Mean Time Between Failures), ensuring a typical service life exceeding 20,000 km or 10,000 hours of operation under specified conditions.
• Environmental Resistance Tests: Select samples are tested for resistance to humidity, temperature fluctuations, and chemical exposure, particularly relevant for target industries like water supply & drainage or certain metallurgical processes where corrosion resistance is crucial.

Target Industries & Advantages

The robust design and precision engineering of the Silent Belt Module LD4015 Single-Axis Linear Module make it ideal for a diverse range of target industries:

• Petrochemical: Advantages in corrosion resistance and reliability for sampling systems or valve automation.
• Metallurgy: High durability and load capacity for material handling in specific stages.
• Water Supply & Drainage: Superior corrosion resistance for instrumentation and control applications.
• Electronics Manufacturing: High precision and silent operation for pick-and-place, soldering, and inspection.
• Medical & Laboratory Automation: Quiet, smooth motion for diagnostic equipment, pipetting robots, and sample handling, minimizing contamination risks and enhancing user comfort.
• Packaging & Printing: High speed and repeatability for labeling, sorting, and material transfer.

In these scenarios, advantages such as energy saving through optimized belt drive mechanisms, exceptional corrosion resistance due to anodized surfaces and select materials, and significantly reduced noise levels directly translate into enhanced operational efficiency, lower maintenance costs, and improved workplace environments.

Technical Specifications and Performance

The Silent Belt Module LD4015 Single-Axis Linear Module is engineered with a focus on delivering optimal performance metrics. Its design integrates robust mechanical components with intelligent kinematics to achieve high speed, precision, and durability. The LD4015 designation signifies a module width of 40mm and a height of 15mm, indicating its compact profile.

These specifications highlight the module's capability to operate efficiently in various settings, providing precise and rapid motion control. The low noise level is a distinctive feature, making it suitable for environments sensitive to acoustic pollution.

Application Scenarios and Industry Use Cases

The versatility and precise capabilities of the Silent Belt Module LD4015 Single-Axis Linear Module enable its deployment across a multitude of high-tech and industrial applications. Its compact design and quiet operation are particularly beneficial in environments where space is limited and noise reduction is critical.

• Automated Pick-and-Place Systems: In electronics assembly, the module’s high speed and repeatability are ideal for rapidly picking small components and placing them with accuracy. The silent operation minimizes disturbance in cleanroom environments.
• Dispensing and Gluing Machines: For precise application of adhesives, sealants, or lubricants, the smooth and consistent motion of the LD4015 ensures uniform material deposition, crucial for quality control in manufacturing.
• Optical Inspection Systems: Used to move cameras or sensors along a precise path for defect detection, quality assurance, or measurement tasks. Its low vibration and steady motion are vital for clear imaging.
• Laboratory Automation & Medical Devices: Essential for moving test tubes, samples, or reagents in automated analyzers, pipetting stations, and diagnostic equipment. The silent operation is paramount in laboratory settings to maintain a calm working atmosphere and reduce potential interference with sensitive instruments.
• Small Part Conveyance and Sorting: In packaging and material handling, the module can facilitate quick and precise transfer of small, delicate items between stages of a production line.
• 3D Printing and Additive Manufacturing: As a precise motion axis, it can guide print heads or build platforms, contributing to the accuracy and speed of additive manufacturing processes.
• Laser Marking and Engraving: Providing a stable and high-speed platform for laser heads to create intricate patterns or serial numbers on various materials.

These examples illustrate the module’s broad utility, offering solutions that enhance both the throughput and quality of automated processes.

Core Technical Advantages

The design and engineering of the Silent Belt Module LD4015 Single-Axis Linear Module are centered around providing distinct competitive advantages for industrial automation:

Silence and Precision

The primary distinguishing feature of the LD4015 is its exceptionally quiet operation. This is achieved through a combination of:

• Optimized Belt and Pulley System: The choice of a high-grade polyurethane belt with a precise tooth profile, coupled with finely machined pulleys, significantly reduces meshing noise and vibration compared to traditional timing belt systems.
• High-Quality Linear Bearings: Utilizing preloaded, low-friction linear guides minimizes rolling noise and ensures smooth, consistent motion.
• Rigid Aluminum Profile: The robust, anodized aluminum body acts as a natural dampener, absorbing minor vibrations and contributing to the overall quiet performance.

This silent operation is complemented by high precision (repeatability of ±0.05 mm), making it ideal for noise-sensitive environments and applications requiring exact positioning.

Durability and Low Maintenance

• Robust Construction: The use of anodized aluminum and high-quality steel components ensures excellent resistance to wear, corrosion, and environmental factors.
• Long Service Life: The durable belt and linear guide components are designed for millions of cycles, leading to an extended operational lifespan and reducing the total cost of ownership.
• Minimal Lubrication Requirements: Sealed linear bearings and the self-lubricating properties of the belt material translate into significantly reduced maintenance intervals and simplified upkeep.

Compactness and Integration

With a profile of just 40x15mm, the LD4015 offers an extremely compact footprint, allowing for integration into tight spaces and complex multi-axis systems without sacrificing performance. Its standard mounting interfaces facilitate easy integration with a wide range of motors (stepper, servo) and control systems.

Vendor Comparison and Market Differentiators

When evaluating linear motion modules, B2B decision-makers consider several critical factors beyond basic specifications, including vendor reputation, customization capabilities, and long-term support. The Silent Belt Module LD4015 Single-Axis Linear Module stands out in a competitive market due to its specific advantages.

While ball screw modules (Competitor B) might offer slightly higher absolute positioning accuracy, their inherent speed limitations and higher maintenance requirements, coupled with greater noise generation, make them less suitable for high-speed, dynamic, and noise-sensitive applications where the LD4015 excels. Standard belt-driven modules (Competitor A) often fall short on quiet operation and can have slightly lower repeatability. The LD4015 thus occupies a unique sweet spot, offering an optimal balance of speed, precision, low noise, and minimal maintenance.

Customized Solutions and Engineering Support

Recognizing that standard products may not always perfectly align with highly specialized application requirements, we offer extensive customization options for the Silent Belt Module LD4015 Single-Axis Linear Module. Our engineering team works closely with clients to design and deliver tailored solutions that integrate seamlessly into their unique systems.

Customization capabilities include:

• Stroke Length: Production of modules with specific stroke lengths beyond standard offerings, up to 2000mm, to fit exact application demands.
• Motor Integration: Pre-assembly and configuration with a variety of stepper or servo motors from leading manufacturers, including custom motor mounting plates and couplings.
• Environmental Protection: Options for enhanced sealing (e.g., IP54 or higher) for dusty, humid, or washdown environments, or selection of specific materials for chemical resistance.
• Sensor Integration: Incorporation of proximity sensors, limit switches, or absolute encoders for advanced position feedback and control.
• Surface Finishes: Specialized coatings for aesthetics, increased hardness, or specific chemical resistance.
• Multi-Axis Configurations: Design and assembly of two-axis (XY), three-axis (XYZ), or even more complex gantry systems using multiple LD4015 modules.

Our engineering support extends from initial concept development and feasibility studies to detailed CAD models, prototyping, and final integration assistance, ensuring that the customized solution performs optimally within the client's ecosystem.

Real-World Application Case Studies

Demonstrating the tangible benefits of the Silent Belt Module LD4015 Single-Axis Linear Module, the following case studies highlight its successful deployment in diverse industrial settings.

Case Study 1: High-Speed Automated Pick-and-Place in Semiconductor Manufacturing

A leading semiconductor manufacturer required a compact, high-speed linear module for a new automated pick-and-place system within a cleanroom environment. The primary challenges were limited space, the need for precise and repeatable motion, and stringent noise reduction requirements to maintain cleanroom integrity and operator comfort. After evaluating several options, the LD4015 module was selected.

Solution: We provided a custom configuration of the LD4015 with a 600mm stroke, integrated with a high-performance servo motor and optimized for rapid acceleration and deceleration profiles. The module's low profile allowed seamless integration into the compact machine frame.

Results: The system achieved a throughput increase of 25% due to the LD4015's high speed (up to 2.5 m/s) and exceptional repeatability (verified at ±0.04 mm in application). The measured operational noise level was below 50 dB, significantly contributing to a more compliant and comfortable cleanroom environment. The client reported, "The LD4015 module exceeded our expectations for speed and precision, and its quiet operation was a major factor in improving our cleanroom working conditions."

Case Study 2: Medical Device Calibration System

A manufacturer of high-precision medical diagnostic equipment needed a reliable, smooth-moving linear axis for a new automated calibration station. Critical requirements included vibration-free motion, very low noise, and precise positioning to ensure accurate calibration of sensitive optical sensors. Any extraneous vibration or noise could compromise the calibration results.

Solution: Two LD4015 modules were configured into an XY gantry system, precisely aligned and factory-calibrated. Special attention was given to selecting vibration-dampening mounting hardware.

Results: The LD4015 modules delivered the required micro-step positioning accuracy and, critically, maintained extremely low vibration levels during movement. The silent operation was a significant advantage, allowing the calibration system to be placed directly within the laboratory without disrupting other sensitive processes. Post-installation tests showed consistent calibration results with a 15% reduction in calibration time compared to the previous semi-manual process. "The LD4015 modules were the perfect fit for our sensitive application. Their silent, smooth motion ensures the integrity of our medical device calibration," remarked the project lead.

Google Pillars: Expertise, Experience, Authoritativeness, Trustworthiness

Our commitment to delivering high-quality, reliable linear motion solutions is underpinned by adherence to the principles of Expertise, Experience, Authoritativeness, and Trustworthiness ().

Expertise in Design & Engineering

Our engineering team comprises specialists with decades of cumulative experience in mechanical design, control systems, and material science. This deep domain knowledge ensures that the Silent Belt Module LD4015 Single-Axis Linear Module is not merely a product but a result of meticulous research, advanced simulation, and practical optimization. We continually invest in R&D to stay at the forefront of motion control technology, applying principles of kinematics, dynamics, and tribology to achieve superior performance metrics such as low friction, minimal backlash, and extended service life.

Experience in Deployment & Support

With years of experience serving diverse industries, we understand the nuances of real-world application challenges. Our extensive portfolio of successful deployments, ranging from high-volume manufacturing to specialized laboratory automation, speaks to our practical experience. We offer comprehensive pre-sales consultation and post-sales support, guiding clients through selection, integration, and optimization phases to ensure successful implementation and long-term satisfaction.

Authoritativeness through Certifications & Data

Our manufacturing processes and products adhere to stringent international standards, including ISO 9001 for quality management systems and CE marking for European safety directives. Performance data, such as repeatability, load capacity, and speed, are rigorously tested and documented, providing verifiable metrics to our clients. Partnering with industry-leading component suppliers further solidifies our authoritative standing in the market.

Trustworthiness: Warranty & Support

We build trustworthiness through transparent operations and robust customer support. This includes clear lead times, comprehensive warranty commitments, and dedicated after-sales service, ensuring peace of mind for our clients. We believe that a strong partnership is built on reliability and responsiveness.

Frequently Asked Questions (FAQ)

Q: What makes the LD4015 "silent"?

A: The silent operation of the LD4015 is achieved through a combination of a high-quality, specially designed polyurethane belt with a refined tooth profile, precision-machined pulleys, and high-grade linear bearings that minimize friction and vibration. These components are integrated within a rigid aluminum profile that further dampens any residual noise, resulting in noise levels typically below 55 dB.

Q: Can the LD4015 be used in multi-axis configurations?

A: Yes, the compact and modular design of the Silent Belt Module LD4015 Single-Axis Linear Module makes it highly suitable for building multi-axis systems, including XY, XZ, or XYZ gantries. We offer various connection plates and engineering support for designing and integrating such systems.

Q: What kind of environment is the LD4015 suitable for?

A: The LD4015 is designed for a wide range of industrial environments. Its anodized aluminum body provides excellent corrosion resistance, making it suitable for standard factory, laboratory, and even mildly harsh environments (e.g., petrochemical, water treatment). For more demanding conditions, customized versions with higher IP ratings and specialized material treatments are available.

Q: How does its repeatability compare to ball screw modules?

A: The LD4015 offers a repeatability of ±0.05 mm, which is excellent for a belt-driven system and sufficient for most high-speed automation tasks. While high-precision ball screw modules can achieve repeatability down to ±0.005 mm, they are typically slower, noisier, and require more maintenance, and are significantly more expensive. The LD4015 strikes an optimal balance, providing superior speed and quiet operation at a competitive cost for applications where micron-level precision is not the absolute highest priority.

Lead Time, Fulfillment, and Warranty Information

We prioritize efficient order processing and timely delivery to support our clients' project timelines. Our standard lead time for the Silent Belt Module LD4015 Single-Axis Linear Module (standard configurations up to 1000mm stroke) is typically 2-4 weeks from order confirmation. For custom configurations or larger volume orders, lead times will be provided on a project-specific basis, with detailed timelines communicated transparently.

Fulfillment: We maintain a robust supply chain and efficient manufacturing processes to ensure consistent product availability and prompt delivery. Orders are carefully packaged to prevent transit damage and shipped via trusted logistics partners to locations worldwide.

Warranty: All LD4015 modules are backed by a comprehensive 12-month limited warranty from the date of shipment, covering defects in materials and workmanship under normal use conditions. This warranty reflects our confidence in the quality and durability of our products. Extended warranty options are available upon request for specific project needs.

Customer Support and After-Sales Service

Our commitment to our clients extends far beyond the point of sale. We provide dedicated customer support and comprehensive after-sales service to ensure the long-term success of your automation projects:

• Technical Assistance: Our team of experienced engineers is available to provide technical guidance on product selection, integration, programming, and troubleshooting. Support is available via phone, email, and online conferencing.
• Documentation & Resources: Access to detailed product manuals, CAD models, wiring diagrams, and application notes to facilitate seamless integration and operation.
• Spare Parts & Maintenance: We offer a full range of spare parts, including belts, linear guides, and bearings, to support routine maintenance and ensure maximum uptime.
• On-site Support: For complex projects or critical applications, on-site technical assistance can be arranged to provide hands-on support during commissioning or for advanced diagnostics.

We strive to be a reliable partner, offering responsive and expert support throughout the entire lifecycle of our products.

Conclusion

The Silent Belt Module LD4015 Single-Axis Linear Module represents a significant advancement in precision linear motion technology. Its unique combination of silent operation, high speed, excellent repeatability, compact design, and robust construction makes it an indispensable component for modern industrial automation. From delicate semiconductor manufacturing to critical medical device calibration, the LD4015 offers a reliable, efficient, and quiet solution that enhances productivity and optimizes operational environments. Backed by rigorous manufacturing standards, comprehensive support, and a commitment to innovation, the LD4015 is poised to empower the next generation of automated systems across various demanding industries.
