Linear module speed optimization

In the realm of industrial automation, precision motion control is the backbone of efficient and reliable operations. Among the key components driving this precision are linear module, ball screw linear actuator, and single axis linear modules—integrated solutions that have revolutionized how automated systems achieve linear motion. From manufacturing lines to medical equipment, these modular units play a critical role in enhancing productivity, accuracy, and flexibility.

Linear Module: The Foundation of Automated Motion Systems

Linear module is an automated motion unit that integrates linear guides, ball screws (or synchronous belts), and drive units, achieving high-precision linear or curved motion through modular design. The core components include:

• Transmission components: ball screw, synchronous belt (suitable for long stroke) or gear rack (heavy-duty scenario);
• Guiding components: steel linear guide rail;
• Drive unit: servo motor, stepper motor or cylinder.

Our company has mastered the art of engineering linear modules that balance performance and practicality. Their modules are designed to simplify automation setups, offering "easy to design and install" features, "small size and light weight" for space-constrained environments, and "high-precision" motion critical for tasks like electronic component assembly and laser cutting. With optimal structural design, our company’s linear modules ensure rigidity and stability, even under varying loads, making them a trusted choice across industries.

Ball Screw Linear Actuator: High-Precision Transmission for Critical Tasks

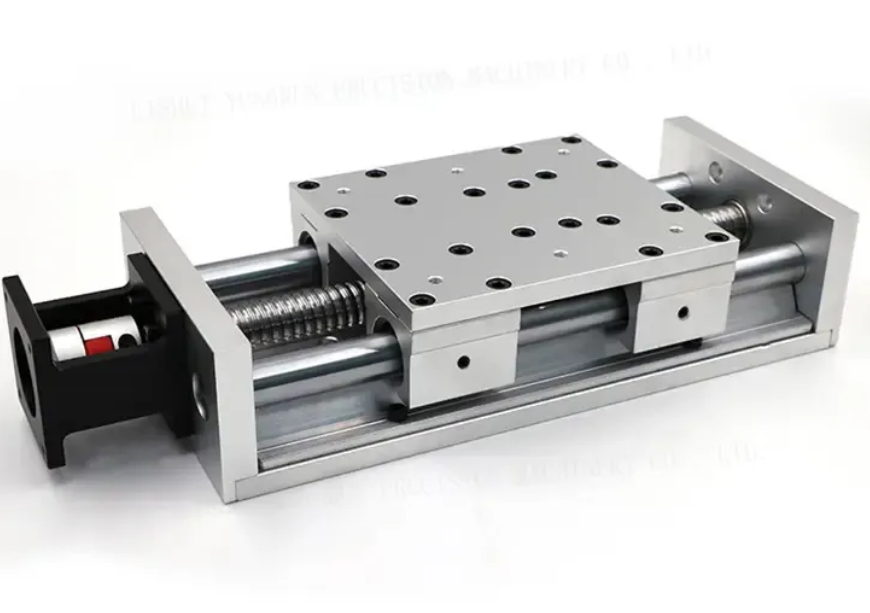

A ball screw linear actuator is a type of linear module that leverages ball screw technology to convert rotational motion into precise linear motion. As highlighted in our company’s product classifications, this variant stands out for its "high rigidity, low friction, and strong torsional resistance"—qualities that make it indispensable in applications demanding tight tolerances, such as semiconductor manufacturing and precision inspection equipment.

The ball screw’s design, which uses recirculating balls between the screw and nut, minimizes friction and wear, ensuring consistent performance over extended periods. Our company’s ball screw linear actuators are engineered to deliver exceptional stability, even during frequent start-stop cycles, thanks to their dual-axis guide rail and chrome-plated axis design. This results in lower noise compared to traditional transmission devices, enhancing workplace comfort while maintaining operational efficiency.

Single Axis Linear Modules: Versatile Building Blocks for Automation

Single axis linear modules serve as the fundamental units for linear motion in automation systems, providing a compact and efficient solution for single-dimensional movement. our company’s KK single axis module is a prime example, offering modular customization that supports separate supply of slide rail sliders and load expansion components. This design not only reduces maintenance costs but also allows for flexible integration into existing systems.

These modules excel in scenarios where space is limited but precision is non-negotiable. Their "small size and light weight" make them ideal for desktop automation, pick-and-place machines, and small-scale assembly lines. our company’s single axis linear modules also benefit from the company’s optimal design philosophy, ensuring they are fully equipped with all necessary components for quick installation and seamless operation.

Linear Module Classification: Tailoring Solutions to Specific Needs

our company recognizes that no two industrial applications are identical, which is why their linear modules are categorized to address diverse requirements. The following classifications, derived from our company’s product expertise, help customers select the right module for their needs:

1. Classified by Transmission Mode

2. Classified by Protective Structure

3. Special Functional Classification

Our company’s Linear Module Advantages: Engineering Excellence in Automation

our company’s linear modules, including ball screw linear actuators and single axis linear modules, are built on a foundation of engineering excellence, offering a range of features and performance benefits:

Key Features

• Easy to design and install
• Small size and light weight
• High precision
• Strong rigidity
• Fully equipped with essential components
• Optimal design for specific applications

Performance Advantages

1. High speed response and stability: Supported by low-friction, high-rigidity components for smooth operation.
2. Protection and durability:Fully enclosed dust-proof technology with sealing tape and contact components to prevent dust ingress, extending service life.
3. Corrosion resistance: Anodized aluminum and chrome-plated shafts make modules suitable for acidic and alkaline environments.
4. Customization flexibility:Modular design allows for tailored solutions, from single axis modules to multi-axis combinations.
5. Cost-effectiveness: Standardized structural design reduces production costs while covering light to heavy-duty scenarios.

FAQs about Linear Modules, Ball Screw Linear Actuators, and Single Axis Linear Modules

What are the core components of a linear module?

A linear module integrates linear guides, ball screws (or synchronous belts), and drive units. Its core components include:

• Transmission components: ball screw, synchronous belt (long stroke), or gear rack (heavy-duty).
• Guiding components: steel linear guide rail.
• Drive unit: servo motor, stepper motor, or cylinder.

Why choose a ball screw linear actuator for high-precision tasks?

A ball screw linear actuator offers high rigidity, low friction, and strong torsional resistance, making it ideal for high-precision applications. Its ball screw design minimizes wear and ensures consistent performance, critical for tasks like semiconductor manufacturing and precision inspection.

How do single axis linear modules reduce maintenance costs?

Single axis linear modules (e.g., our company’s KK module) support separate supply of slide rail sliders and load expansion components. This modular design allows targeted replacement of worn parts, reducing overall maintenance expenses compared to replacing entire systems.

What protective structure options are available for linear modules?

Linear modules are classified by protective structure into:

• Fully enclosed: Stainless steel strip dustproof design for harsh environments.
• Semi closed: Aluminum profile molding, dustproof/splash proof, easy maintenance.
• Open: No dust-proof structure, small size, flexible installation.

Can linear modules be combined for 3D motion?

Yes, linear modules can be combined into multi-axis systems. our company’s multi axis combination linear modules achieve 3D motion through XYZ axis combinations or gantry setups, catering to complex automation needs like 3D printing and robotic assembly.

At our company, we are committed to delivering high-quality linear motion solutions that drive industrial innovation. Our extensive range of linear modules—including ball screw linear actuators and single axis linear modules—are engineered to meet the most demanding requirements, from high-precision electronics to heavy-duty manufacturing.

We invite you to visit our facility or explore our product lineup at https://www.our company.com/linear-module-and-ball-screw-linear-actuator.html to discover how our customized solutions can enhance your automation systems. Our team of experts is ready to assist you in selecting the perfect linear module for your application, ensuring optimal performance, durability, and cost-effectiveness. Partner with our company and elevate your automation capabilities today.
