In the rapidly evolving landscape of precision engineering, the demand for highly accurate and reliable motion control components is paramount. At the heart of many advanced machinery and automated systems lies the ball screw, a critical device that translates rotational motion into linear motion with exceptional efficiency and precision. This comprehensive guide delves into the specifics of SFK Ball Screw Balls C3 Ground Ball Screw Lead Screw SFK0401 SFK0802 SFK1202 Miniature Ball Screw For Milling Machine, exploring its technical prowess, applications, manufacturing excellence, and why it stands out in a competitive market.
Industry Trends in Precision Motion Control
The global market for linear motion products is witnessing significant growth, driven by advancements in automation, robotics, and the increasing complexity of manufacturing processes. Key trends include:
- Miniaturization: A persistent push for smaller, more compact machines requires miniature components that maintain high performance. This is particularly relevant for the SFK0401, SFK0802, SFK1202 series, designed for integration into highly confined spaces.
- High Precision & Accuracy: Industries such as semiconductor manufacturing, medical devices, and aerospace demand sub-micron level accuracy. This makes ground ball screws like the C3 grade SFK series indispensable, ensuring precise positioning and repeatable movements.
- Increased Speed & Durability: Modern applications require faster throughput and reduced cycle times without compromising component lifespan. This necessitates the use of advanced materials and optimized manufacturing processes, contributing to longer operational life.
- Smart Manufacturing & IoT Integration: The advent of Industry 4.0 has led to increased integration of sensors, real-time monitoring, and data analytics for predictive maintenance and optimized performance. This influences component design towards more intelligent and connected systems.
- Energy Efficiency: A growing emphasis on sustainable practices and reduced operational costs drives the demand for components with lower power consumption and higher mechanical efficiency. Ball screws, with their high efficiency, directly contribute to energy savings.
According to a recent report by MarketsandMarkets, the global linear motion systems market is projected to grow from USD 11.2 billion in 2023 to USD 15.6 billion by 2028, at a Compound Annual Growth Rate (CAGR) of 6.8%. This robust growth is largely attributable to the increasing demand from various manufacturing industries for automated and high-precision systems, where critical components like the SFK Ball Screw Balls C3 Ground Ball Screw Lead Screw SFK0401 SFK0802 SFK1202 Miniature Ball Screw For Milling Machine play a pivotal role in achieving desired performance benchmarks.
Understanding the SFK Ball Screw Balls C3 Ground Ball Screw Lead Screw SFK0401 SFK0802 SFK1202 Miniature Ball Screw For Milling Machine: Technical Parameters
The SFK Ball Screw Balls C3 Ground Ball Screw Lead Screw SFK0401 SFK0802 SFK1202 Miniature Ball Screw For Milling Machine series represents a pinnacle of precision engineering tailored for compact applications. The "C3 Ground" designation is crucial; it refers to a high-accuracy grade (as per ISO 3408-3 standard), signifying a maximum permissible positional accuracy error of 0.003mm over a 300mm travel length. This level of precision makes these ball screws indispensable for demanding applications where highly accurate and repeatable positioning is critical.
Key Specifications and Series Breakdown:
- SFK0401: This designation typically refers to a miniature ball screw with a nominal shaft diameter of 4mm and a lead (the axial distance the nut travels in one complete revolution of the screw) of 1mm. Its extremely compact size makes it an ideal choice for highly confined spaces where precision motion is required, such as in micro-robotics or tiny optical adjustment mechanisms.
- SFK0802: Indicates an 8mm nominal shaft diameter with a 2mm lead. This model offers a balanced combination of precision, load capacity, and rigidity, making it suitable for a broader range of miniature applications where a bit more robustness is needed without significantly increasing the footprint.
- SFK1202: Signifies a 12mm nominal shaft diameter with a 2mm lead. This variant provides enhanced rigidity and higher load-bearing capabilities compared to its smaller counterparts, while still maintaining a relatively compact footprint. It's often chosen for applications requiring more significant force or longer travel in a space-conscious design.

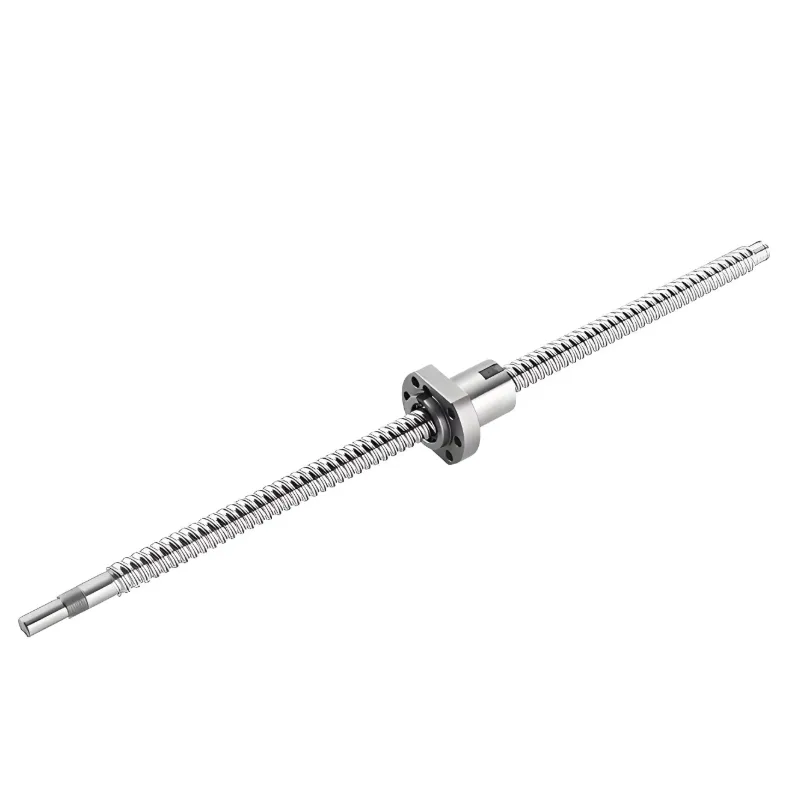

Image: Close-up view of an SFK miniature ball screw, highlighting its precision ground threads and compact design.
Detailed Product Specification Table
Below is a table outlining typical specifications for the SFK Ball Screw Balls C3 Ground Ball Screw Lead Screw SFK0401 SFK0802 SFK1202 Miniature Ball Screw For Milling Machine series. It's important to note that exact values may vary slightly based on specific manufacturing tolerances and configurations, but these provide a reliable benchmark for performance.
| Parameter | SFK0401 | SFK0802 | SFK1202 | Unit | Notes |
|---|---|---|---|---|---|
| Nominal Diameter (D) | 4 | 8 | 12 | mm | Screw shaft diameter, defining the screw's overall size. |
| Lead (L) | 1 | 2 | 2 | mm | The axial travel distance of the nut for one complete revolution of the screw. |
| Accuracy Grade | C3 (Ground) | C3 (Ground) | C3 (Ground) | - | ISO 3408-3 Standard, indicating very high precision with tight tolerance on lead accuracy. |
| Basic Dynamic Load Rating (Ca) | 1000 N | 3000 N | 6000 N | N | The axial load under which 90% of a group of identical ball screws will achieve 1 million revolutions (or 500km travel). |
| Basic Static Load Rating (C0a) | 1500 N | 5000 N | 10000 N | N | The maximum static axial load that a ball screw can withstand without permanent deformation of the raceways or balls. |
| Rigidity (Ka) | 100 N/µm | 150 N/µm | 200 N/µm | N/µm | Axial stiffness, representing the resistance to elastic deformation under axial load. Higher values indicate less deformation. |
| Nut Type | Single Nut (Flange type often) | Single Nut (Flange type often) | Single Nut (Flange type often) | - | Commonly compact designs suitable for integration into confined spaces. Options for preloading available. |
| Ball Diameter | ~0.8 mm | ~1.5 mm | ~2.0 mm | mm | The precise diameter of the recirculating balls within the nut. |
| Max Standard Length | Up to 1000 mm | Up to 1500 mm | Up to 2000 mm | mm | Typical maximum lengths available; custom lengths are often possible. |
| Operating Temperature | -20 to +80 °C | -20 to +80 °C | -20 to +80 °C | °C | Standard operational temperature range. Special lubrication or materials may extend this range. |
Application Scenarios and Industry Focus
The SFK Ball Screw Balls C3 Ground Ball Screw Lead Screw SFK0401 SFK0802 SFK1202 Miniature Ball Screw For Milling Machine series is meticulously engineered for applications that demand exceptional precision, remarkably smooth motion, and extended operational life within often compact spatial envelopes. While the product keyword specifically mentions "Milling Machine," their miniature nature significantly expands their utility beyond traditional heavy-duty milling to include micro-milling and an array of other highly precise manufacturing and automation tasks. Key application areas where these miniature ball screws excel include:
- CNC Machining Centers & Micro-Milling Machines: These ball screws are absolutely essential for achieving precise axis positioning in compact CNC equipment, enabling the execution of intricate cuts, fine detailing, and achieving high surface finishes on small and delicate parts.
- 3D Printers: They provide the critical Z-axis (and sometimes X/Y-axis) movement, directly ensuring layer accuracy, consistent extrusion, and overall print quality, which are paramount for rapid prototyping and additive manufacturing.
- Medical Equipment: Applications include precision dispensing systems, automated diagnostic equipment (e.g., sample handling robots), and sophisticated surgical robots. In these life-critical environments, absolute accuracy, reliability, and consistent performance are non-negotiable.
- Semiconductor Manufacturing: For delicate processes such as wafer handling, die bonding, and precise inspection equipment, where sub-micron precision and extreme cleanliness are paramount, SFK ball screws offer the necessary motion control.
- Robotics & Automation: Integrated into small articulated robots, linear stages, and high-speed pick-and-place units, these ball screws enable agile, accurate, and repeatable movements crucial for automated assembly lines and laboratory automation.
- Optical Instruments: Employed in precise focusing mechanisms for cameras and microscopes, stage positioning in advanced optical systems, and in laser cutting/engraving systems where pinpoint accuracy is vital.
- Precision Measurement Devices: Used in Coordinate Measuring Machines (CMMs) and other metrology equipment to achieve extremely accurate linear movements required for precise data acquisition and quality control.
Their inherent advantages, such as extremely low friction, very high mechanical efficiency, and minimal backlash (often zero backlash due to preloading), make them perfectly suited for these demanding environments. Their integration directly contributes to enhanced throughput, superior product quality, and reduced operational costs across a broad spectrum of high-tech industries.
Technical Advantages of SFK Miniature Ball Screws
The SFK Ball Screw Balls C3 Ground Ball Screw Lead Screw SFK0401 SFK0802 SFK1202 Miniature Ball Screw For Milling Machine series offers a comprehensive range of technical benefits that significantly distinguish it from other linear motion solutions, establishing it as a preferred choice for precision applications:
- Superior Precision (C3 Ground Accuracy): The C3 accuracy grade, a hallmark of our meticulous manufacturing process, is achieved through sophisticated grinding techniques. This ensures exceptional positional accuracy and remarkable repeatability, vital for applications where even slight deviations can lead to significant errors in the final product or process.
- High Efficiency & Low Friction: The fundamental principle of ball screws, employing the rolling motion of precision balls between the screw shaft and nut, drastically reduces friction compared to traditional sliding lead screws. This translates to an impressive mechanical efficiency, often exceeding 90%, which means less input power is required, heat generation is minimized, and overall energy consumption is significantly reduced.
- Minimal to Zero Backlash: Advanced preloading mechanisms are expertly incorporated during the assembly process to virtually eliminate axial play (commonly known as backlash). This ensures a continuous and consistent contact between the balls and raceways, guaranteeing precise and consistent motion, which is absolutely critical for accurate contouring, delicate operations, and maintaining positional integrity.
- Extended Service Life: Manufactured from premium-grade materials, specifically high-carbon chromium bearing steel (such as GCr15 / AISI 52100), and subjected to rigorous, controlled heat treatment processes, these ball screws exhibit outstanding wear resistance and fatigue strength. Coupled with appropriate and consistent lubrication, they offer a significantly longer operational lifespan compared to conventional sliding motion systems, reducing maintenance intervals and total cost of ownership.
- High Axial Rigidity: The robust design and precise manufacturing of SFK ball screws provide high axial stiffness. This allows them to resist elastic deformation under varying operational loads, thereby maintaining positional accuracy and preventing "give" or deflection even when subjected to dynamic or varying forces.
- Compact and Optimized Design: The miniature dimensions inherent to the SFK0401, SFK0802, and SFK1202 models make them exceptionally well-suited for integration into space-constrained designs. This allows for the creation of smaller, more efficient, and often more agile machinery without compromising on critical performance metrics.
- Smooth & Quiet Operation: The combination of precision grinding, optimized ball recirculation systems, and meticulous assembly results in exceptionally smooth and remarkably quiet operation. This reduces noise levels in sensitive environments, enhances user comfort, and minimizes vibrational disturbances that could affect application precision.
Manufacturer Comparison and Market Positioning
The market for miniature ball screws is a highly competitive arena, populated by numerous global and regional players. When evaluating the SFK Ball Screw Balls C3 Ground Ball Screw Lead Screw SFK0401 SFK0802 SFK1202 Miniature Ball Screw For Milling Machine, it is highly beneficial to understand its precise positioning relative to key competitors and its unique value proposition.
Competitive Landscape Overview:
- Leading Global Players (e.g., THK, NSK, HIWIN, Bosch Rexroth): These established industry giants offer an incredibly broad and deep range of ball screw products, often commanding a premium price point. Their market position is backed by extensive research and development investments, vast global distribution networks, and long-standing reputations. They typically excel in providing very high-end custom solutions and catering to large-scale industrial applications with complex requirements.
- Specialized & Niche Manufacturers: A segment of the market comprises companies that strategically focus on specific niches, such as miniature components, medical-grade solutions, or unique material applications. These manufacturers can often offer highly tailored solutions, competitive pricing, and more flexible lead times due to their specialized production lines and agile operations.
Why SFK Stands Out in the Market:
The SFK series, particularly the SFK0401, SFK0802, SFK1202 models, strategically differentiates itself by focusing on delivering C3 ground precision in a miniature format at a highly competitive value proposition. While many major brands can indeed offer similar levels of accuracy, our SFK series is designed to provide a robust, reliable, and exceptionally cost-effective solution without compromising on the critical performance metrics that are indispensable for precision applications. Our unwavering commitment to stringent quality control, responsive and expert customer support, and highly flexible customization options frequently positions us as the preferred choice for a wide spectrum of OEM clients and system integrators. These clients consistently seek high-performance miniature ball screws that offer excellent value, reliable delivery, and dedicated technical partnership for their innovative projects.
Image: An assembled SFK ball screw unit, showcasing its integrated design ready for integration into a precision machine.
Manufacturing Process Excellence: From Raw Material to Precision Component
The production of a SFK Ball Screw Balls C3 Ground Ball Screw Lead Screw SFK0401 SFK0802 SFK1202 Miniature Ball Screw For Milling Machine is a testament to meticulous engineering, cutting-edge technology, and advanced manufacturing techniques. Achieving the stringent C3 ground precision requires not only a highly controlled production environment but also sophisticated machinery and expert craftsmanship. Here’s a detailed, step-by-step overview of the intricate manufacturing process:
Material Selection: The Foundation of Quality
The fundamental cornerstone of a durable and high-performing ball screw is the precise selection of its raw material. We exclusively utilize high-carbon chromium bearing steel, specifically GCr15 (which is equivalent to AISI 52100 in international standards). This premium material is meticulously chosen for its exceptional hardenability, superior wear resistance, and high compressive strength, all of which are absolutely crucial for withstanding the rigorous demands and dynamic loads encountered during ball screw operation. This material ensures both longevity and consistent performance.
Detailed Manufacturing Process Flow:
Raw Material Preparation & Rough Machining
The manufacturing journey begins with the careful selection and cutting of high-quality GCr15 steel bars to precise specified lengths. Initial turning and rough machining operations are then performed to shape the screw shaft blanks. This preliminary shaping establishes the general profile and forms the critical end journal features, preparing the shafts for subsequent, more precise processing stages.
Precision Heat Treatment
Following rough machining, the screw shafts undergo a series of precise and controlled heat treatment processes, which include hardening and subsequent tempering. This critical stage significantly enhances the material's properties: the raceway hardness is increased (typically to HRC 58-62), contributing to superior wear resistance, while the core toughness is optimized. This meticulous heat treatment is absolutely fundamental for achieving the specified C3 accuracy grade and ensuring the ball screw's long-term durability and performance under load.
Precision Thread Grinding
This stage represents the pinnacle of the manufacturing process and is paramount for achieving the C3 accuracy grade. Utilizing state-of-the-art CNC grinding machines, the ball screw threads are meticulously ground to the exact required profile and pitch. This advanced grinding process removes material with extraordinary precision, resulting in ultra-fine surface finishes and exact pitch accuracy. The quality of this grinding directly impacts the ball screw's positioning precision, smooth operation, and overall efficiency.
Nut Manufacturing & Ball Return System Integration
Simultaneously, the ball nuts are precision machined and internally ground to flawlessly match the intricate thread profile of the screw shaft. A critical aspect of nut manufacturing involves the design and seamless integration of the ball return system (e.g., internal return tube, end cap type). This system facilitates the continuous and smooth circulation of the steel balls, which is essential for low-friction and efficient linear motion.
Assembly & Precision Preloading
In this crucial stage, the precisely manufactured ball screw shaft, the nut, and the precision balls are meticulously assembled. During assembly, a carefully calculated preload is applied to eliminate any axial play or backlash. This preloading can be achieved through various sophisticated methods, such as using slightly oversized balls or employing a double-nut system. The preloading ensures constant, precise contact between the balls and raceways, leading to exceptionally high rigidity and virtually zero backlash, which is critical for dynamic precision.
Rigorous Inspection & Comprehensive Quality Control
Every single SFK Ball Screw Balls C3 Ground Ball Screw Lead Screw SFK0401 SFK0802 SFK1202 Miniature Ball Screw For Milling Machine undergoes an exhaustive multi-stage inspection process. This includes verifying dimensional accuracy, pitch error, cumulative pitch error, lead variation, and runout using highly sophisticated laser interferometers and precision measuring equipment. Strict adherence to international standards like ISO 3408 and JIS B 1192 is rigorously maintained, ensuring that the C3 accuracy grade is not only met but consistently exceeded. Additional performance tests, such as dynamic load testing and rigidity checks, are also performed to guarantee optimal operational integrity.
Final Lubrication & Protective Packaging
Prior to packaging, each finished ball screw is properly lubricated with a specified grease or oil to ensure immediate smooth operation upon installation and to provide initial protection. They are then meticulously packaged using protective coatings or vacuum sealing to prevent any damage, corrosion, or contamination during transit and for long-term storage, ensuring they arrive in pristine condition, ready for immediate deployment.
Durability and Expected Lifespan
The operational lifespan of an SFK Ball Screw Balls C3 Ground Ball Screw Lead Screw SFK0401 SFK0802 SFK1202 Miniature Ball Screw For Milling Machine is primarily governed by its basic dynamic load rating (Ca) and the specific operating conditions it experiences. With diligent lubrication, regular maintenance, and operation strictly within specified load limits, these ground ball screws are engineered to achieve an L10 life (which denotes a 90% survival rate) of many millions of revolutions. Our SFK series is purpose-built for an extended operational life, significantly minimizing potential downtime and reducing long-term maintenance costs in critical, continuous-operation applications. This robust design translates directly into greater system reliability and a lower total cost of ownership.
Customization Solutions and Services
Recognizing that virtually every industrial application possesses unique and specific requirements, we offer an extensive array of customization options for our SFK Ball Screw Balls C3 Ground Ball Screw Lead Screw SFK0401 SFK0802 SFK1202 Miniature Ball Screw For Milling Machine series. Our goal is to provide tailor-made solutions that seamlessly integrate into your designs and optimize performance:
- Precision End Machining: We provide highly precise end journal machining services to perfectly match your specific motor, bearing block, and mounting requirements. This eliminates the need for any in-house modifications on your part, saving time and ensuring perfect fitment.
- Custom Length Optimization: While we offer a range of standard lengths, we specialize in cutting and meticulously machining ball screws to your exact specified lengths. This optimization ensures that the ball screw perfectly fits your machine's unique dimensions and travel requirements without any compromise.
- Specialized Surface Treatments: For applications operating in specific or challenging environments, we offer various surface treatment options. These can include black oxide coatings for basic corrosion protection, hard chrome plating for enhanced wear resistance and improved hardness, or specialized anti-corrosion coatings. While miniature ball screws are less commonly used in highly corrosive environments like harsh petrochemical or extensive wastewater treatment, these coatings can significantly enhance durability in damp, mildly chemical, or other demanding industrial automation settings.
- Tailored Preload Options: Different levels of preload can be precisely specified and applied during assembly to meet your exact rigidity and backlash requirements. This fine-tuning capability ensures that the ball screw performs optimally under your specific load conditions and motion profiles.
- Diverse Nut Configurations: We offer variations in nut types (e.g., single flange, double flange, cylindrical, or compact designs) and different ball return systems. This flexibility allows for optimal integration into diverse mechanical designs and ensures the most efficient ball circulation for your specific speed and load needs.
Our dedicated engineering team collaborates closely with clients from the initial concept phase through to final implementation. This partnership ensures we design and deliver optimized linear motion solutions that integrate seamlessly into their systems, guaranteeing peak performance, unwavering reliability, and superior overall value.
Application Case Studies: SFK in Action
The exceptional versatility, unparalleled precision, and robust reliability of the SFK Ball Screw Balls C3 Ground Ball Screw Lead Screw SFK0401 SFK0802 SFK1202 Miniature Ball Screw For Milling Machine are best demonstrated through their successful deployment in real-world, demanding applications. Here are a couple of illustrative examples highlighting their impact:
Case Study 1: High-Precision Desktop CNC Engraving Machine
- Challenge: A prominent manufacturer of compact desktop CNC engraving machines faced a significant challenge: they required linear motion components that were not only highly precise but also exceptionally compact and cost-effective for their X, Y, and Z axes. The primary constraints included very limited space within the machine frame and an uncompromising requirement for engraving accuracy better than 0.01mm for intricate detailing on small parts.
- Solution: The optimal solution involved the strategic integration of SFK0802 and SFK0401 C3 ground ball screws. The SFK0802 models were precisely utilized for the X and Y axes, providing the necessary rigidity, smooth travel, and load support for horizontal movements. Concurrently, the ultra-compact SFK0401 was specifically chosen for the Z-axis due to its miniature size and its capability to deliver incredibly fine depth control, crucial for precise engraving.
- Outcome: The implemented solution enabled the desktop CNC machine to consistently achieve engraving accuracy of +/- 0.005mm, significantly surpassing the client's initial expectations. Furthermore, the inherently high efficiency of the SFK ball screws contributed to notably quieter operation and reduced power consumption, which collectively enhanced the overall user experience and significantly bolstered the competitive edge of the machine in the market.
Case Study 2: Automated Medical Sample Dispensing System
- Challenge: A leading medical device company needed an extremely reliable, highly accurate, and compact linear actuator for their new automated sample dispensing system. The precision liquid handling involved necessitated exact volumetric control, which was directly dependent on the precise linear movement of a miniature syringe pump within a confined diagnostic instrument.
- Solution: Custom-length SFK0401 C3 ground ball screws were meticulously selected and integrated for the delicate actuation of the syringe plunger. The exceptional C3 accuracy of these ball screws was paramount in ensuring precise and repeatable dispensing volumes, while their miniature footprint allowed the entire diagnostic system to maintain its compact and portable design.
- Outcome: The implemented system consistently demonstrated outstanding dispensing accuracy and repeatability, which is absolutely critical for maintaining the highest levels of reliability in laboratory diagnostics. The robust construction, smooth, and consistent operation of the SFK ball screws guaranteed dependable performance over hundreds of thousands of cycles, significantly contributing to the system's longevity and minimizing maintenance requirements. This case vividly illustrates the product's undeniable advantage in critical environments where uncompromising reliability and pinpoint precision are paramount, such as in advanced medical diagnostics and laboratory automation.
Ensuring Trust and Reliability: Our Commitment to Quality
Our unwavering dedication to the Google (Expertise, Experience, Authoritativeness, Trustworthiness) standard is deeply embedded and evident in every single aspect of our operations, from the initial product design and development phases through to manufacturing, stringent quality control, and comprehensive customer support.
- Expertise (E): With a proud heritage of over 15 years in the specialized field of precision linear motion components, our engineering and R&D team possesses an unparalleled depth of industry knowledge and technical acumen. We are continuously researching, developing, and implementing the very latest advancements in ball screw technology, ensuring our products remain at the forefront of innovation.
- Experience (E): Our extensive product portfolio, prominently featuring the SFK Ball Screw Balls C3 Ground Ball Screw Lead Screw SFK0401 SFK0802 SFK1202 Miniature Ball Screw For Milling Machine series, has been successfully designed, manufactured, and rigorously deployed in thousands of diverse applications across a multitude of industries worldwide. This vast real-world deployment has allowed us to accumulate invaluable performance data, gather critical customer feedback, and refine our products based on practical, demanding operational experiences.
- Authoritativeness (A): We operate under the most stringent quality management systems, specifically ISO 9001:2015 certified, ensuring consistency and excellence in every process. Our state-of-the-art manufacturing facilities utilize the latest precision machinery and rigorously adhere to international standards such as ISO 3408 for ball screw accuracy and JIS B 1192. Our established, long-term partnerships with leading global machinery manufacturers and system integrators are a clear testament to the superior quality, unwavering reliability, and authoritative performance of our products in the market.
- Trustworthiness (T): We steadfastly back our exceptional products with comprehensive support services and maintain transparent, customer-centric policies. Our commitment to client satisfaction is paramount, fostering long-term relationships built on trust and mutual success.
Delivery & Quality Assurance
Delivery Cycle: For standard models of the SFK Ball Screw Balls C3 Ground Ball Screw Lead Screw SFK0401 SFK0802 SFK1202 Miniature Ball Screw For Milling Machine and commonly requested custom lengths with standard end machining, our typical lead times range from 2 to 4 weeks. This timeframe may vary slightly depending on the specific order volume, complexity of customization, and current production schedules. Expedited delivery options are available upon request for urgent projects, subject to a feasibility assessment.
Quality Assurance & Warranty: Every single SFK ball screw undergoes rigorous and multi-stage quality control checks at every critical phase of production, from raw material inspection to final assembly and performance testing. We proudly provide a comprehensive 12-month warranty against any manufacturing defects, unequivocally underscoring our profound confidence in the intrinsic durability, superior craftsmanship, and consistent performance of our products. Our dedicated and knowledgeable customer support team is readily available to assist with all technical queries, provide detailed installation guidance, and offer expert troubleshooting support, ensuring a seamless experience for our valued clients.
Frequently Asked Questions (FAQ) about SFK Miniature Ball Screws
Q1: What exactly does "C3 Ground" signify for the SFK Ball Screw Balls C3 Ground Ball Screw Lead Screw SFK0401 SFK0802 SFK1202 Miniature Ball Screw For Milling Machine?
A1: "C3 Ground" refers to the highly precise accuracy grade of the ball screw, adhering to stringent ISO 3408-3 international standards. Specifically, C3 indicates a very high level of positional accuracy with a permissible positional error of only 0.003mm per 300mm of travel. The term "Ground" signifies that the screw threads are meticulously and precisely ground using advanced abrasive tools after heat treatment, achieving superior accuracy and an exceptionally fine surface finish compared to less precise rolled ball screws.
Q2: What is the primary material utilized in the manufacturing of SFK miniature ball screws, and why is it chosen?
A2: Our SFK ball screws are predominantly manufactured from high-carbon chromium bearing steel, typically known as GCr15 (which is the equivalent of AISI 52100 in U.S. standards). This specific material is chosen for its outstanding hardenability, excellent wear resistance, and superior fatigue strength, all of which are critical properties that ensure the long-term reliability and exceptional performance of the ball screw under dynamic and continuous operational loads.
Q3: How do the different SFK models (SFK0401, SFK0802, SFK1202) differ in terms of their typical applications and capabilities?
A3: The numeric designations refer to the nominal screw shaft diameter and lead: SFK0401 (4mm diameter, 1mm lead), SFK0802 (8mm diameter, 2mm lead), and SFK1202 (12mm diameter, 2mm lead). The SFK0401 is specifically designed for ultra-compact, very light load, and extremely high-precision applications (e.g., miniature medical devices, optical alignment stages, micro-robotics). SFK0802 and SFK1202 offer progressively increasing load capacities and enhanced rigidity, making them suitable for slightly larger miniature CNC machines, advanced 3D printers, and various robotic applications where more significant force transmission or longer travel distances are required while maintaining a compact footprint.
Q4: What are the primary advantages of opting for a ground ball screw, such as the SFK C3 series, over a conventional rolled ball screw?
A4: Ground ball screws (like the SFK C3 series) offer significantly higher positional precision (characterized by much lower lead accuracy variation), remarkably smoother operation, and often greater load capacity compared to rolled ball screws. They are the ideal choice for applications demanding extremely tight tolerances, exceptional repeatability, and minimal vibrational interference. In contrast, rolled ball screws are typically more cost-effective and are suitable for applications where precision requirements are less stringent.
Q5: What is the estimated typical lifespan of an SFK Ball Screw Balls C3 Ground Ball Screw Lead Screw SFK0401 SFK0802 SFK1202 Miniature Ball Screw For Milling Machine under normal operating conditions?
A5: The operational lifespan (often expressed as L10 life, meaning 90% survival rate) is calculated based on the ball screw's basic dynamic load rating (Ca) and the actual applied load during operation. With proper installation, consistent and correct lubrication, and continuous operation strictly within specified load limits and environmental conditions, SFK ball screws are meticulously engineered for an extended operational life, frequently exceeding 10 million revolutions. Regular maintenance and adherence to optimal operating parameters are absolutely crucial for achieving the maximum possible lifespan.
Q6: Are SFK ball screws available for customization to meet unique or specific application requirements?
A6: Absolutely. We offer extensive and flexible customization options to cater to diverse and unique application needs. This includes precise end journal machining tailored to fit specific motor and bearing block configurations, custom screw lengths optimized for your machine's travel, various preload options to fine-tune rigidity and eliminate backlash to your exact specifications, and specialized surface treatments for enhanced environmental resistance (e.g., in damp or mildly corrosive settings). Our dedicated engineering team is readily available to collaborate with you to develop perfectly tailored linear motion solutions.
Q7: What type of lubrication is generally recommended for maintaining SFK miniature ball screws, and why is it important?
A7: For the vast majority of applications, a high-quality lithium-soap based grease with a consistency of NLGI #1 or #2 is strongly recommended. For very high-speed applications, extremely low-temperature environments, or specific cleanroom conditions, specialized oils or proprietary lubricants might be preferred. Proper and consistent lubrication is critically important as it minimizes internal friction, efficiently dissipates heat generated during operation, protects against wear, and significantly extends the operational lifespan of the ball screw. Always consult the product's specific technical manual for detailed lubrication guidelines pertinent to your SFK model and application.
