In the realm of industrial automation and precision machinery, the **ball screw** stands as a pivotal component, transforming rotational motion into linear motion with exceptional accuracy and efficiency. This critical mechanism, comprising a threaded shaft and a nut equipped with recirculating balls, minimizes friction and maximizes power transmission, making it indispensable across a myriad of high-performance applications. Our focus today is on understanding the intricacies of this technology, with a special emphasis on the SFU1605 C3 Ball Screw Ground Ball Screw, a product renowned for its precision and reliability, available at YDMotion.com.
The Evolving Landscape: Industry Trends in **Ball Screw** Technology
The demand for higher precision, increased efficiency, and greater reliability continues to drive innovation in the **ball screw** industry. We are witnessing several key trends:
- Miniaturization & High-Speed Performance: As industries like medical devices and semiconductor manufacturing require smaller, faster, and more precise components, the development of compact yet robust **ball screw**s capable of high-speed operation is paramount.
- Enhanced Durability & Lifespan: Innovations in material science and surface treatments are leading to **ball screw**s with extended operational lifespans, reducing maintenance costs and downtime.
- Energy Efficiency: With global emphasis on sustainability, manufacturers are developing **ball screw**s that offer lower friction and higher mechanical efficiency, contributing to reduced energy consumption in machinery.
- Smart Integration: The advent of Industry 4.0 is integrating sensors and data analytics with mechanical components, allowing for predictive maintenance and real-time performance monitoring of **ball screw** systems.
- Customization: The rise of specialized applications necessitates custom ball screw solutions, tailored to unique load capacities, travel lengths, and environmental conditions.

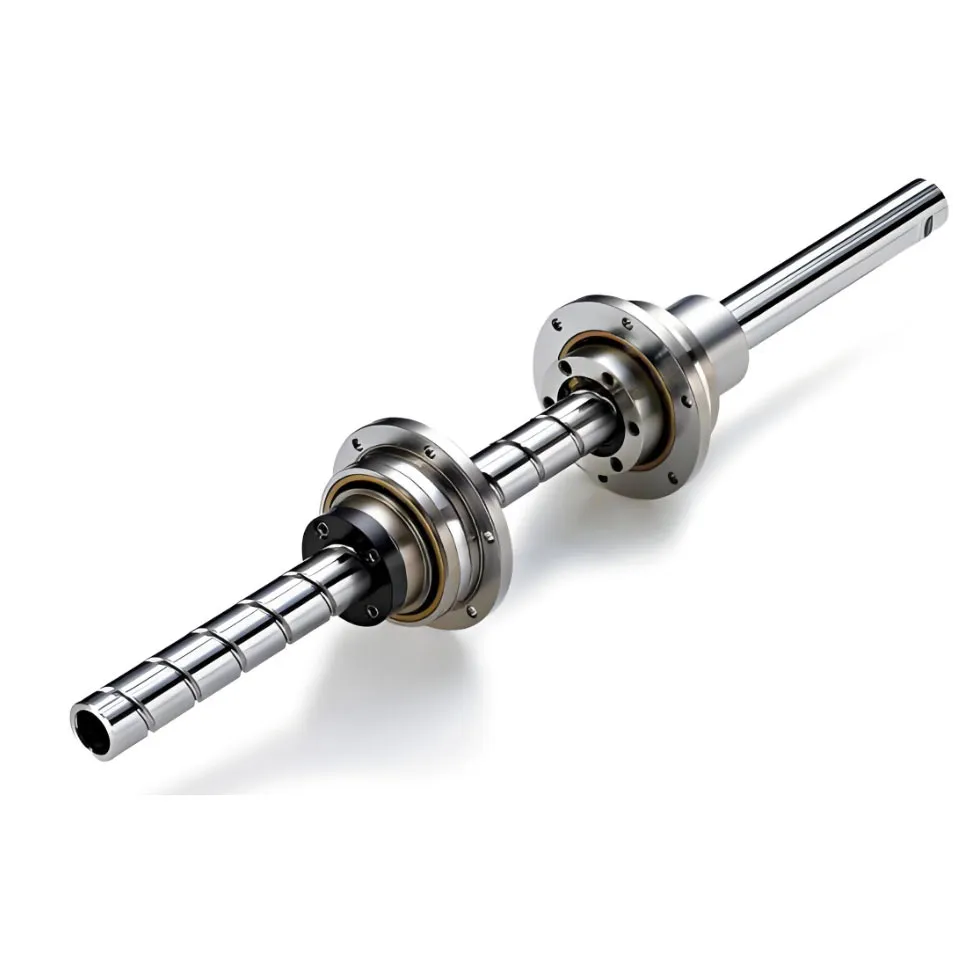

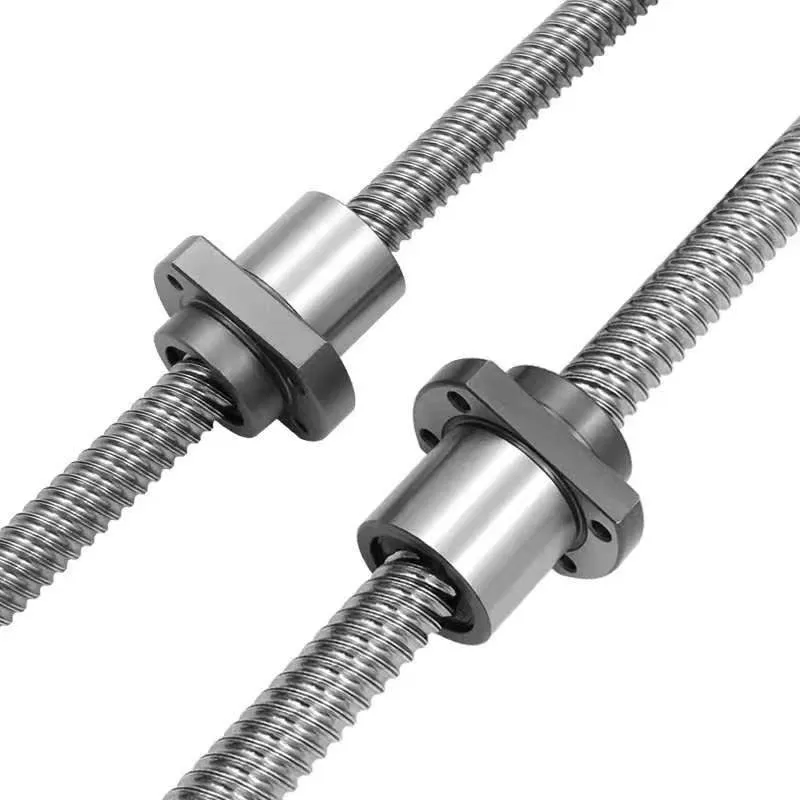

Figure 1: High-precision **ball screw** assembly critical for modern automation.
Technical Parameters & Specifications of **Ball Screw**s
Understanding the key technical parameters is crucial when selecting the right **ball screw** for a specific application. These parameters define its performance, accuracy, and suitability.
General **Ball Screw** Parameter Comparison
| Parameter | Description | Typical Range / Value | Impact on Performance |
|---|---|---|---|
| Nominal Diameter (D) | Outer diameter of the screw shaft. | 8mm - 120mm | Affects rigidity and load capacity. Larger diameter, higher rigidity. |
| Lead (P) | Axial travel for one revolution of the screw. | 1mm - 60mm | Determines travel speed and resolution. Larger lead, faster speed but lower resolution. |
| Accuracy Class | Precision of the lead and form accuracy, per ISO 3408. | C0 (highest) to C10 (lowest). C3, C5, C7 common. | Critical for positioning accuracy. Lower number (e.g., C3), higher precision. |
| Dynamic Load Rating (Ca) | Axial load at which 90% of identical **ball screw**s will reach 1 million revolutions. | Varies widely (e.g., 5 kN to 200 kN) | Used for calculating expected lifespan under dynamic loads. |
| Static Load Rating (C0a) | Maximum permissible static axial load without causing permanent deformation. | Varies widely (e.g., 10 kN to 400 kN) | Critical for applications with intermittent high loads or stationary loads. |
| Preload | Axial force applied to the **ball screw** nut assembly to eliminate axial clearance (backlash). | Typically 5-10% of Dynamic Load Rating | Improves rigidity, accuracy, and reduces vibration. Essential for precision applications. |
| Max Length | Maximum achievable length for the **ball screw** shaft. | Up to 6-8 meters (depending on manufacturing method) | Constrained by manufacturing capabilities and critical speed considerations. |
Introducing SFU1605 C3 **Ball Screw** Ground **Ball Screw**
The SFU1605 C3 **Ball Screw** Ground **Ball Screw** is a prime example of precision engineering. The "SFU" designation indicates a single flanged nut, external circulation type. "1605" refers to a nominal diameter of 16mm and a lead of 5mm. The "C3" signifies its exceptional accuracy class, meaning it meets very stringent standards for lead variation and axial play, typically within ±0.008 mm / 300 mm. This ground ball screw variant, as opposed to rolled **ball screw**s, undergoes a meticulous grinding process after heat treatment, resulting in superior accuracy and surface finish. Its attributes make it highly sought after for demanding applications where precision and repeatability are non-negotiable.

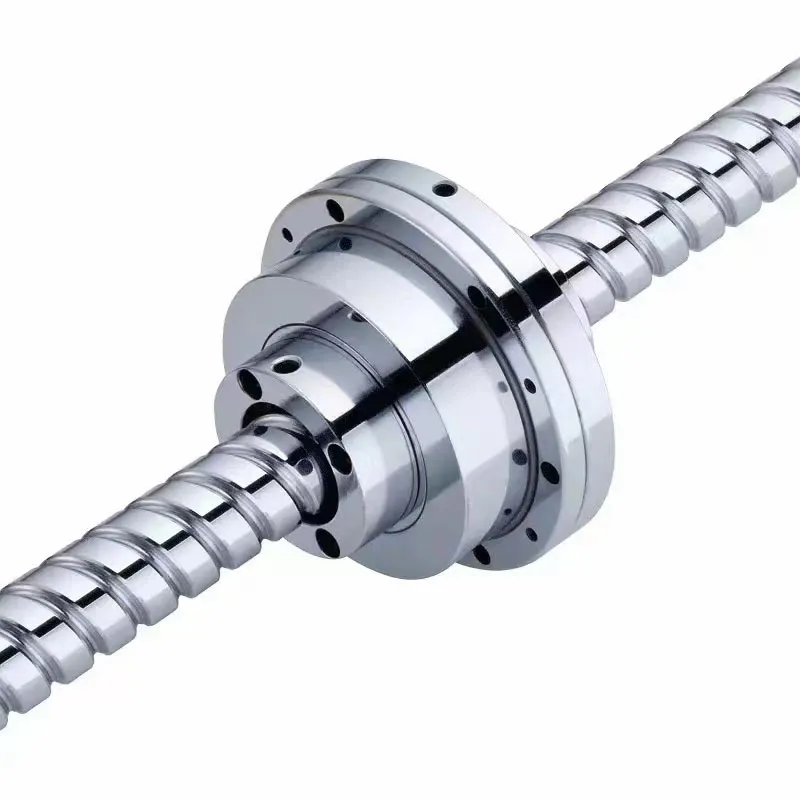

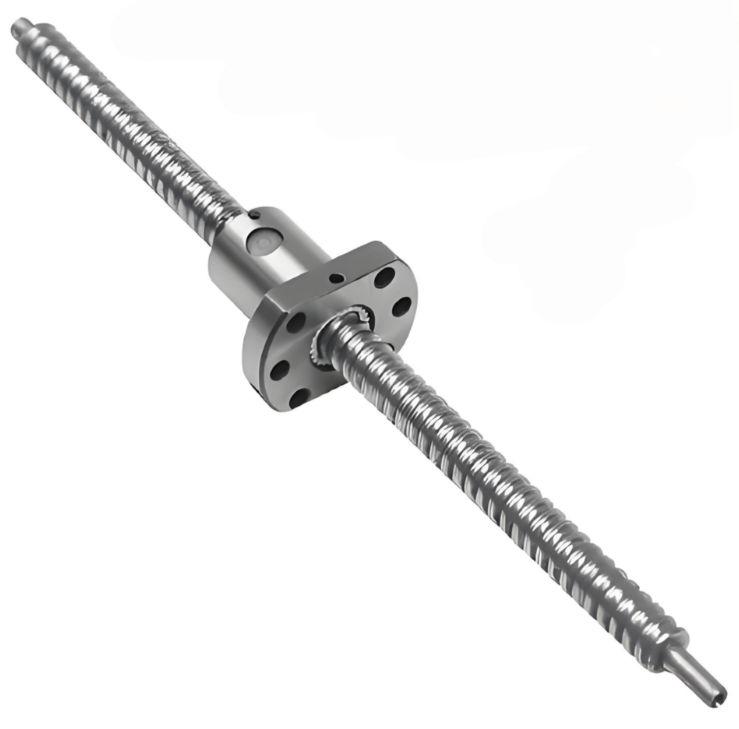

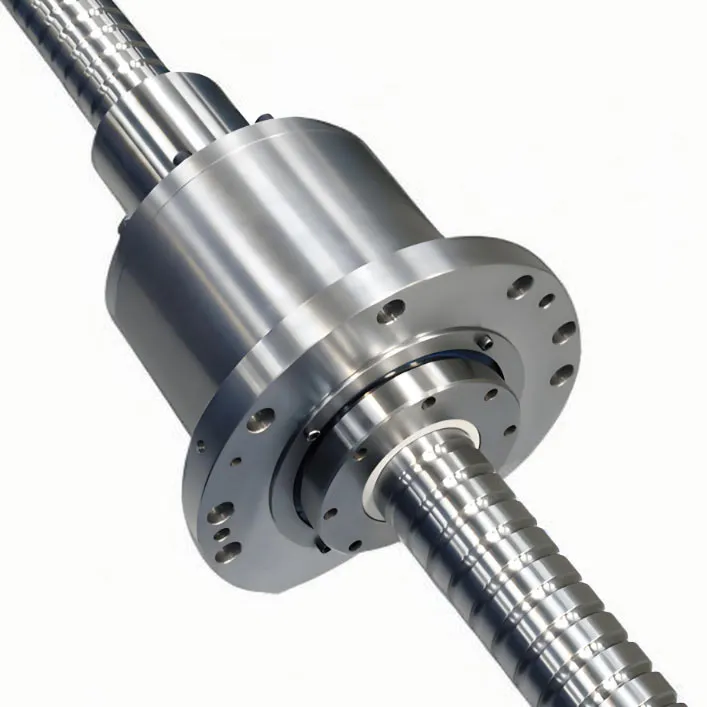

Figure 2: The SFU1605 C3 **Ball Screw**, a hallmark of precision.
The Art and Science: Manufacturing Process of **Ball Screw**s
The creation of a high-quality **ball screw** like the SFU1605 C3 is a testament to sophisticated engineering and manufacturing prowess. It involves a multi-stage process, each step critical for the final product's performance, durability, and accuracy.
Detailed Manufacturing Workflow:
- Material Selection: The journey begins with selecting high-grade alloy steel, typically SCM415 or similar chromium-molybdenum steel for the screw shaft and SUJ2 for the ball screw balls. These materials are chosen for their excellent wear resistance, hardness, and machinability, ensuring the longevity and performance of the **ball screw**.
- Rough Machining & Blanking: The steel bars are cut to approximate length (blanking) and undergo rough machining (turning) to prepare the basic shaft shape.
- Thread Forming (Grinding for C3 Accuracy):
- Rolled **Ball Screw**s: For lower accuracy grades (e.g., C7, C10), threads are formed by cold rolling, which deforms the material to create the helix. This method is cost-effective and provides good strength.
- Ground **Ball Screw**s (like SFU1605 C3): For high-precision applications, the threads are meticulously ground after heat treatment using specialized CNC grinding machines. This process removes material with extreme accuracy, ensuring precise lead error and smooth surface finish. This is where the "ground **ball screw**" distinction comes from, providing superior accuracy over rolled types.
- Heat Treatment: The screw shaft and nut are subjected to a precise heat treatment process (e.g., induction hardening or through hardening, followed by tempering). This hardens the material to withstand high loads and wear, increasing the overall durability and lifespan. For SFU1605 C3, the hardening process is meticulously controlled to achieve optimal hardness (typically HRC 58-62) without compromising toughness.
- Straightening: Post-heat treatment, the shafts may experience slight deformation. They are then precision straightened to ensure perfect linearity, crucial for maintaining accuracy and preventing vibration.
- Surface Treatment (Optional but Beneficial): Depending on the application, surfaces may receive treatments like black oxide, chrome plating, or specialized anti-corrosion coatings to enhance resistance to rust and environmental factors, extending the product's life, especially in harsh conditions (e.g., petrochemical, wastewater treatment).
- End Machining: The ends of the **ball screw** shaft are machined to specific designs (e.g., journal ends, threaded ends) to fit into bearing supports and motor couplings. This typically involves CNC turning, milling, and grinding.
- Assembly of **Ball Screw** and **Ball Nut**: The precision ball screw and ball nut are assembled with the recirculating ball screw balls. The balls are precisely sized and graded to ensure smooth operation and minimal friction. Preload is often applied at this stage to eliminate backlash and enhance rigidity.
- Inspection & Quality Control: Every **ball screw** undergoes rigorous inspection at various stages and a final comprehensive quality control check. This includes lead accuracy measurement (using laser interferometers or precision encoders), runout checks, hardness testing, and noise/vibration analysis. Compliance with international standards such as ISO 3408 (for **ball screw**s), ANSI, and JIS is strictly adhered to, ensuring traceability and guaranteed performance.
The meticulous nature of the manufacturing process for a ground **ball screw** like the SFU1605 C3 ensures its superior precision and extended operational lifespan, making it a reliable choice for critical applications.
Figure 3: Advanced CNC grinding for superior ball screw thread accuracy.
Key Technical Advantages of Our **Ball Screw**s
Our **ball screw** products, especially the SFU1605 C3, offer distinct advantages that contribute significantly to the performance and longevity of industrial machinery:
- High Efficiency & Low Friction: The design principle of ball and screw mechanisms replaces sliding friction with rolling friction (via the ball screw balls). This significantly reduces friction, leading to mechanical efficiencies often exceeding 90%. This translates directly into lower power consumption and less heat generation, contributing to energy savings and reduced wear on components.
- Superior Precision & Repeatability: Thanks to advanced manufacturing techniques like grinding and stringent quality control, our **ball screw**s achieve high accuracy grades (like C3). This ensures precise positioning and excellent repeatability, vital for CNC machining, robotics, and measurement systems.
- High Load Capacity: Despite their precision, **ball screw**s are designed to handle substantial axial loads, both dynamic and static. The multiple contact points of the balls distribute the load efficiently, extending lifespan.
- Long Service Life & Durability: With proper material selection, heat treatment, and lubrication, our **ball screw**s boast an impressive service life. The ground surfaces and hardened threads resist wear effectively, maintaining performance over prolonged periods.
- Reduced Backlash: Our **ball screw** assemblies can be preloaded to virtually eliminate backlash, which is crucial for applications requiring absolute accuracy and stiffness, preventing unwanted motion or vibration.
- Low Noise Operation: The smooth rolling motion of the balls minimizes noise compared to traditional lead screws, making them suitable for environments where acoustics are a concern.
Applications Across Diverse Industries
The versatility and performance of **ball screw**s make them ideal for a wide range of industries:
- CNC Machine Tools: The primary application, providing precise axis movement for milling, turning, grinding, and EDM machines.
- Industrial Automation & Robotics: Used in pick-and-place robots, automated assembly lines, and material handling systems for accurate and repeatable motion.
- Semiconductor Manufacturing: Essential for wafer handling, inspection equipment, and cleanroom robots where ultra-precision and minimal contamination are critical.
- Medical Equipment: Found in MRI machines, CT scanners, surgical robots, and laboratory automation, requiring smooth, precise, and reliable motion.
- Aerospace & Defense: Utilized in flight control surfaces, satellite positioning systems, and ground support equipment.
- Packaging Machinery: For precise product placement, sealing, and cutting operations.
- Printing & Paper Processing: Ensuring accurate paper feeding and print head positioning.
- Specialized Industries: In environments like petrochemicals (for valve actuation, resistant to corrosive fluids if treated), metallurgy (in rolling mills for precise gap control), and wastewater treatment (in sluice gates, emphasizing corrosion resistance), **ball screw**s are chosen for their reliability and ability to withstand harsh conditions, often incorporating specialized coatings for anti-corrosion properties and ensuring longevity and reduced maintenance costs.

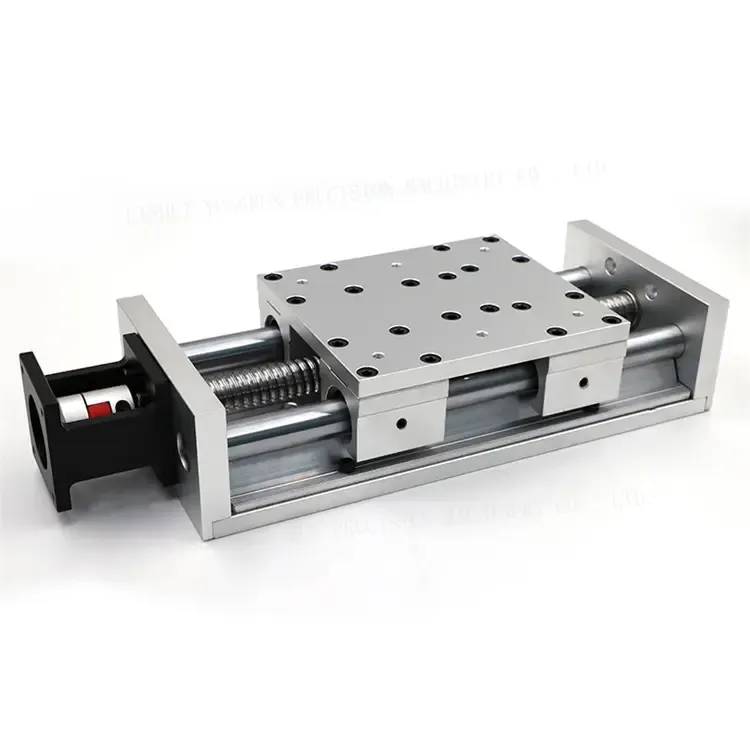

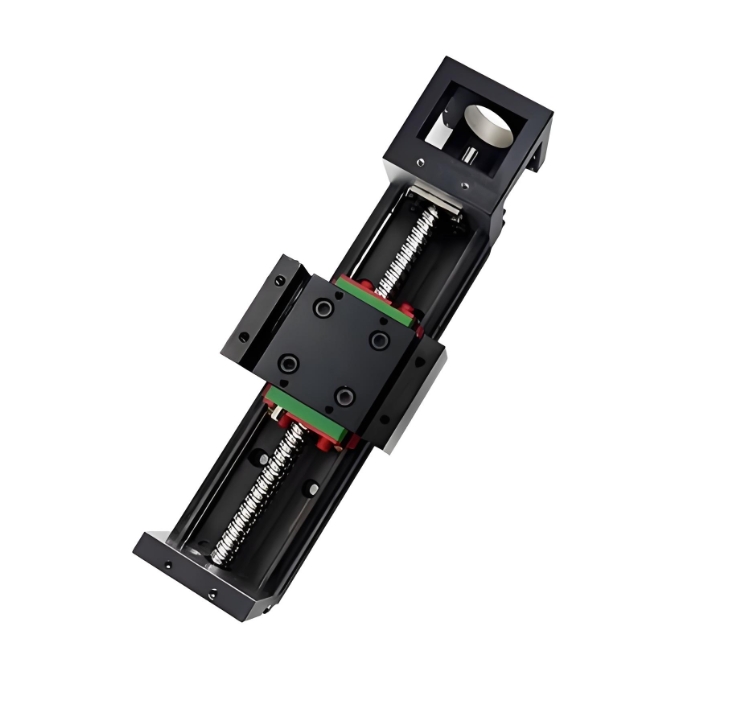

Figure 4: A **ball screw** integrated into an industrial automation system.
Choosing Your Partner: Manufacturer Comparison and Why YDMotion Excels
When sourcing **ball screw**s, selecting the right manufacturer is as crucial as selecting the right product. Reputable manufacturers distinguish themselves through several key attributes:
- Manufacturing Expertise: Look for manufacturers with extensive experience and state-of-the-art facilities for grinding, heat treatment, and quality control. For instance, well-known brands like ball screw THK, NSK, and Bosch Rexroth are recognized for their deep expertise and high standards.
- Quality Certifications: Adherence to international standards such as ISO 9001 for quality management and ISO 3408 for **ball screw** specifications signifies a commitment to consistent quality.
- Material Quality & Traceability: A transparent supply chain for raw materials ensures the integrity and performance of the final product.
- Testing & Validation: Manufacturers should have robust testing protocols, including lead error mapping, hardness testing, and endurance testing, to validate product performance and lifespan.
- Customer Support & Customization Capabilities: The ability to provide technical support, offer customization, and ensure timely delivery are critical for long-term partnerships.
YDMotion.com stands out in this competitive landscape. Our commitment to producing high-quality **ball screw**s like the SFU1605 C3 is backed by:
- Decades of Experience: Our team possesses profound expertise in linear motion solutions, understanding the nuanced demands of various industries.
- Precision Manufacturing: We utilize advanced CNC grinding and inspection equipment to achieve C3 and higher accuracy grades consistently.
- Rigorous Quality Control: Every product undergoes a multi-stage inspection process, including adherence to ISO 3408 standards, ensuring defect-free and high-performance components.
- Robust Customer Feedback Loop: We actively integrate customer feedback into our R&D, continuously refining our products. Clients often commend our **ball screw**s for their seamless integration and extended operational life in their critical machinery, contributing to enhanced uptime and reduced maintenance costs. One notable example includes a precision optics manufacturer who reported a 15% increase in production throughput after switching to our ball screws due to their superior accuracy and longevity.
- Comprehensive Support: From initial consultation to after-sales service, we provide comprehensive technical support and guidance.
Figure 5: Advanced inspection systems ensure the highest quality of every ball screw bearing assembly.
Tailored Solutions: Custom Ball Screw Offerings
While standard **ball screw**s like the SFU1605 C3 meet most industrial needs, many specialized applications require unique solutions. This is where custom ball screw services become invaluable. We offer comprehensive customization capabilities to meet your precise requirements, ensuring optimal performance for highly specialized or challenging environments.
- Tailored Dimensions: From specific diameters and leads to custom lengths and end machining configurations.
- Special Materials & Coatings: For applications in corrosive environments (e.g., marine, chemical processing), extreme temperatures, or vacuum conditions, we can provide stainless steel **ball screw**s or apply specialized coatings like PTFE, hard chrome, or black oxide.
- Enhanced Accuracy Grades: Beyond C3, we can offer even higher precision grades for ultra-demanding applications like metrology.
- Integrated Solutions: Development of complete linear modules incorporating our **ball screw**s, ball screw bearing supports, and drive mechanisms.
- Specific Preload Requirements: Custom preloading to achieve desired rigidity and zero-backlash performance for your unique system.
Our engineering team works closely with clients from concept to completion, providing design assistance, prototyping, and rigorous testing to ensure the custom ball screw solution perfectly integrates with their machinery and performs beyond expectations.
Figure 6: Precision machining for custom ball screw solutions.
Real-World Application Cases & Success Stories
The practical impact of a reliable **ball screw** is best illustrated through real-world applications:
- High-Speed Machining Centers: A leading manufacturer of aerospace components implemented our SFU1605 C3 **ball screw**s in their new generation of 5-axis CNC machining centers. The superior precision and rigidity (due to preloading and ground threads) of our ball screws allowed them to achieve tighter tolerances on complex parts, reducing scrap rates by 10% and improving surface finish significantly.
- Automated Medical Diagnostics Platform: For a critical motion axis in an automated blood analysis machine, a medical device company required extremely smooth and quiet operation with high positional accuracy. Our specially treated ball screws with optimized preload were chosen, ensuring precise sample handling and reliable performance for hundreds of thousands of cycles, contributing to faster and more accurate diagnostic results.
- Robotic Welding Arm: In a demanding automotive production line, a robotic welding arm needed a robust linear actuator capable of handling heavy loads with precise positioning. Our larger diameter **ball screw**s, paired with a specialized **ball screw bearing** assembly, provided the necessary strength and accuracy, leading to consistent weld quality and reduced maintenance intervals even under continuous 24/7 operation. The system demonstrated a remarkable 20% reduction in energy consumption compared to its predecessor, thanks to the high efficiency of our **ball screw**s.
- Precision Laser Cutting Machine: A high-power laser cutting system required rapid and highly accurate movement across a large work envelope. The integration of our long-stroke custom ball screws with integrated cooling features enabled the machine to maintain thermal stability and positional accuracy even during prolonged, high-speed cutting operations, resulting in improved cut quality and throughput.

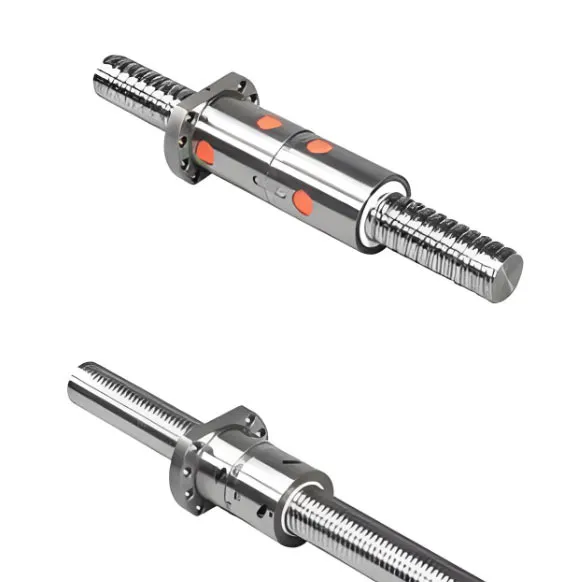

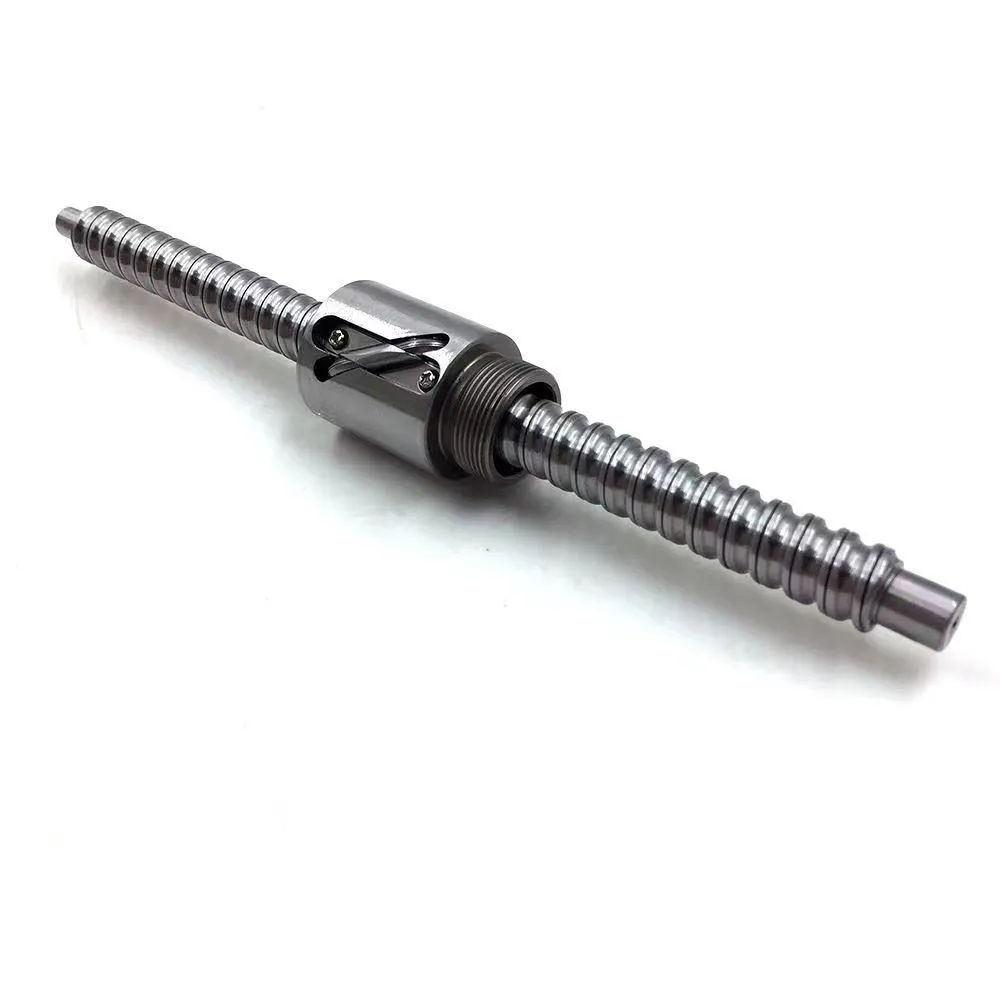

Figure 7: A complete ball screw assembly ready for integration into machinery.
Frequently Asked Questions (FAQ) about **Ball Screw**s
1. What is the difference between a ground **ball screw** and a rolled **ball screw**?
A ground ball screw (like SFU1605 C3) has its threads precisely ground after heat treatment, resulting in superior accuracy (typically C0-C5) and a finer surface finish. Rolled **ball screw**s have their threads formed by cold rolling, which is more cost-effective but generally yields lower accuracy (C7-C10). Ground **ball screw**s are preferred for high-precision applications.
2. What does "C3" accuracy class mean for a **ball screw**?
"C3" refers to the accuracy class of the **ball screw** according to ISO 3408 standards. It indicates a very high level of precision for lead error, typically allowing for a lead deviation of ±0.008 mm per 300 mm of travel. Lower numbers (C0 being the highest) denote greater precision, crucial for demanding applications like machine tools and measurement equipment.
3. How is backlash eliminated in a **ball screw** assembly?
Backlash (axial clearance) in a ball screw assembly is typically eliminated through preloading. This involves applying an axial force to the ball nut to create a slight compression between the balls and the raceways. Common methods include using oversized balls, double nuts with a spacer, or a single nut with a preloaded **ball screw bearing** arrangement. Preloading increases rigidity and accuracy.
4. What materials are typically used for **ball screw** manufacturing, and why?
High-grade alloy steels like SCM415 (for the screw shaft) and SUJ2 (for ball screw balls and ball screw bearing components) are commonly used. These materials are chosen for their excellent hardenability, wear resistance, and fatigue strength, ensuring the **ball screw** can withstand high loads and repeated cycles over a long lifespan. They can be precisely heat-treated to achieve optimal hardness and toughness.
5. What factors affect the lifespan of a **ball screw**?
The lifespan of a ball screw is primarily affected by applied load (dynamic and static), operating speed, lubrication quality, environmental conditions (temperature, dust, moisture), alignment, and proper installation. Adhering to manufacturer specifications for load, speed, and maintenance significantly extends its life.
6. Can **ball screw**s operate in harsh environments?
Yes, with appropriate modifications. For corrosive environments (e.g., petrochemical, marine), stainless steel **ball screw**s or those with specialized protective coatings (like black oxide, chrome plating, or specific anti-corrosion treatments) are available. For dusty or wet environments, bellows or seals can be incorporated to protect the working mechanism. Temperature extremes require special lubrication and material considerations. We offer custom ball screw solutions for such challenging conditions.
7. What is the importance of proper lubrication for a **ball screw**?
Proper lubrication is paramount for the optimal performance and extended lifespan of a **ball screw**. It reduces friction, dissipates heat, prevents corrosion, and flushes away contaminants. Without adequate and correct lubrication, the balls and raceways will experience premature wear, leading to increased friction, reduced accuracy, higher operating temperatures, and ultimately, catastrophic failure. Regular maintenance schedules and the use of recommended lubricants (grease or oil) are essential.
Commitment to Our Customers: Delivery, Warranty & Support
At YDMotion, we understand that product quality extends beyond manufacturing to comprehensive customer service:
- Delivery Lead Time: For standard products like the SFU1605 C3 **Ball Screw**, typical lead times range from 1-3 weeks depending on stock availability and quantity. Custom ball screw orders will have specific lead times communicated upon order confirmation, factoring in design, material sourcing, and specialized manufacturing processes. We strive for efficient logistics to minimize downtime for your projects.
- Quality Assurance & Warranty: All our **ball screw** products are backed by a comprehensive 12-month warranty against manufacturing defects from the date of purchase. Our commitment to ISO-certified manufacturing processes and rigorous testing ensures that every product meets the highest performance and durability standards. We stand behind our products' reliability.
- Customer Support: Our dedicated technical support team is available to assist with product selection, installation guidance, troubleshooting, and maintenance advice. We offer multiple channels for support, including phone, email, and online inquiry forms, ensuring you receive timely and expert assistance. Your operational success is our priority.
Conclusion: The Future of Precision with **Ball Screw** Technology
The **ball screw**, particularly advanced variants like the SFU1605 C3 Ground Ball Screw, remains an unparalleled component in the pursuit of precision, efficiency, and reliability in linear motion systems. As industries continue to push boundaries for faster, more accurate, and more robust machinery, the evolution of **ball screw** technology will undoubtedly play a central role.
Our dedication to engineering excellence, stringent quality control, and comprehensive customer support ensures that YDMotion.com provides not just components, but solutions that empower industries. From standard high-precision products to bespoke custom ball screw designs, we are committed to driving innovation and delivering the performance you demand. Trust in the robust design, meticulous manufacturing, and proven reliability of our **ball screw**s to propel your next project forward.
References & Further Reading:
- 1. International Organization for Standardization (ISO). (2009). *ISO 3408-1:2009: Ball screws – Part 1: Vocabulary and designation*. Retrieved from https://www.iso.org/standard/44622.html
- 2. National Standards Association (ANSI). (Various). *ANSI B5.48-1988 (R1995) - Ball Screws*. (Note: This is an older standard, often referenced in the context of industrial machinery specifications).
- 3. Gao, Y., & Li, Y. (2018). Research on Accuracy Prediction Method of Ball Screw Based on Machine Learning. *Journal of Mechanical Science and Technology*, 32(8), 3907-3914. https://link.springer.com/article/10.1007/s12206-018-0738-9
- 4. THK. (n.d.). *Technical Information - Ball Screws*. Retrieved from https://www.thk.com/usr/download/catalog/eng_a_2400.pdf (This is a general catalog example often used for technical references on **ball screw**s by THK, a leading manufacturer).
