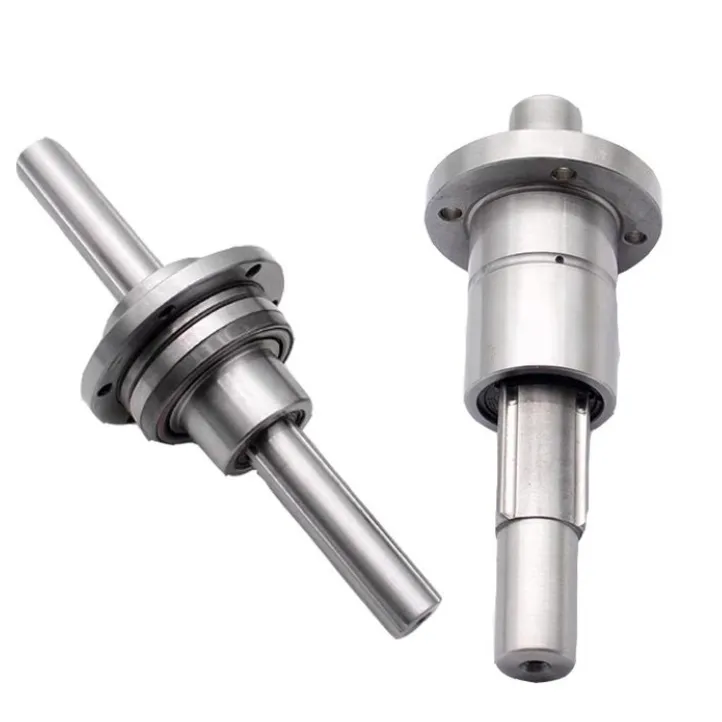

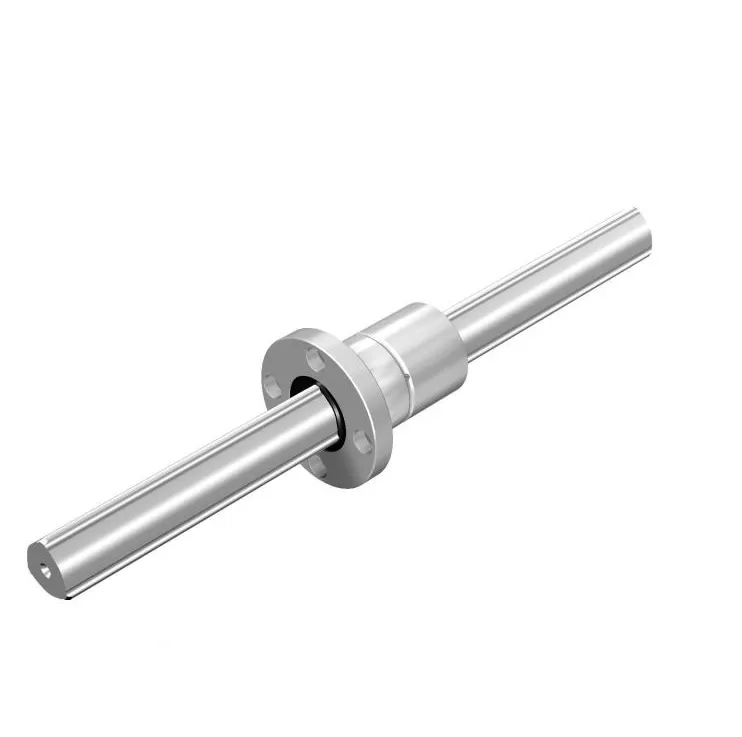

LBF Ball Spline Thk Ball Spline Shaft and Ball Screw Spline for Precision Motion

The LBF Ball Spline Thk Ball Spline Shaft And Ball Screw Spline is an advanced motion component designed primarily for compact environments requiring both high rigidity and torque. Its rolling rail spline structure provides excellent precision and stability in transmission, making it a robust choice for automation, robotics, medical equipment, and CNC machinery that demand advanced linear motion and positioning.

Product Introduction: Ball spline LBF is a high torque rolling rail spline designed specifically for scenarios where space is limited and high rigidity transmission is required.
Key Features Include:

• High load carrying capacity with minimal backlash
• Compact, space-saving design for dense mechanical systems
• Excellent resistance to vibration and long service life

The global demand for precision transmission solutions is rapidly expanding, driven by the flourishing automation and robotics market (Statista: Robotics Industry Data). LBF Ball Spline Thk Ball Spline Shaft And Ball Screw Spline variants, with their unique structure supporting simultaneous rotation and linear movement, are favored in sectors that value compactness and reliability (MachineBuilding.net: Ball Splines Guide).

Recent technical forums (e.g., ENG-TIPS Ball Spline Forum) show increasing focus on:

• High torque performance in limited spaces
• Advanced material engineering for longer lifespan
• Custom adaptability to specialized industrial applications

• Automation & Robotics: Integrated into robotic arms, manipulators, and automated production lines requiring high repeatability and compact assembly (Robots.com: Robot Arm Components).
• Medical Equipment: Used in precision diagnostic/therapeutic machinery for superior control and minimized footprint (see: ScienceDirect: Ball Guide Applications).
• CNC Machines & Semiconductor: Essential for precise axis drive, wafer processing, tool changers, and handling devices where high accuracy is fundamental.
• Packaging & Textile: Widely adopted in fast, synchronized movements in high-throughput lines.
• Automotive Systems: Utilized in steering mechanisms, transmission control, and electromechanical actuators.
• Special Machinery: Custom applications in research, aviation, and military for their reliability under extraordinary demands.

Q1. What materials are commonly used for the LBF Ball Spline Thk Ball Spline Shaft And Ball Screw Spline?

A1. The most common materials include GCr15 (bearing steel), 20CrMnTi (alloy structural steel), and SUJ2. These materials ensure high hardness, wear resistance, and stability. Source: THK Ball Spline Materials

Q2. What accuracy grades are available for these ball splines?

A2. Industry standard grades are C5 (high precision), C7 (precision), and C10 (standard). The grade impacts running smoothness and positioning accuracy. Source: Bearing-News: Ball Spline Grades

Q3. Which installation standards are relevant for industrial usage?

A3. Compliant with JIS B 1192, ISO 3408, and DIN standards. Proper mounting ensures long service life and reliability. Guidance provided in technical datasheets from major manufacturers.

Q4. How do I select the appropriate shaft diameter and load rating?

A4. Selection depends on your application's static/dynamic loading requirements and space constraints. Refer to rated load tables and request expert evaluation—contact our engineers for tailored advice.

Q5. What is the typical lifespan and required maintenance?

A5. With proper lubrication and alignment, LBF ball splines can exceed 20,000 hours in industrial use. Regular inspection and grease interval servicing are recommended. Source: Machine Design: Ball Spline Maintenance

Q6. Can the LBF Ball Spline Thk Ball Spline Shaft And Ball Screw Spline be custom-engineered?

A6. Absolutely. Custom modifications (length, mounting, coating, preload, special alloys) are available by request—contact HEBEI YIDI for project engineering.

Q7. What is the difference between ball spline and ball screw spline?

A7. Ball spline allows simultaneous torque and linear movement, while ball screw spline integrates linear motion with screw driving force, enabling both rotational and translational actuation. See: igus: Spline Shaft Basics

• Industry Expertise: Over 15 years of linear motion solution experience, renowned for product quality and precision engineering.
• Customization: Personalized engineering support for bespoke shaft diameters, lengths, and integration with automation controls.
• Global Distribution: Fast delivery, comprehensive after-sales service, and technical documentation in English and Chinese.
• Quality Assurance: Stringent multi-stage inspection, sourced high-grade steel, certified under ISO 9001 and CE standards.

By leveraging cutting-edge rail-spline technology, LBF Ball Spline Thk Ball Spline Shaft And Ball Screw Spline offers unmatched performance in the most space-challenged and dynamically demanding environments. Their combination of rigidity, high torque tolerance, and modular manufacturing assures seamless integration into your projects.

• Low Friction, High Precision: Ensured by steel ball circulation for smoother rotation and rapid motion without backlash.
• Wide Range of Sizes and Loads: Suit various mechanical design requirements, from micro-automation to heavy industrial robotics.
• Reliable in Harsh Environments: Thanks to corrosion-protected surfaces and robust bearing elements.
• Versatile Applications: Compatible with servo systems, guide rails, and actuator assemblies.
