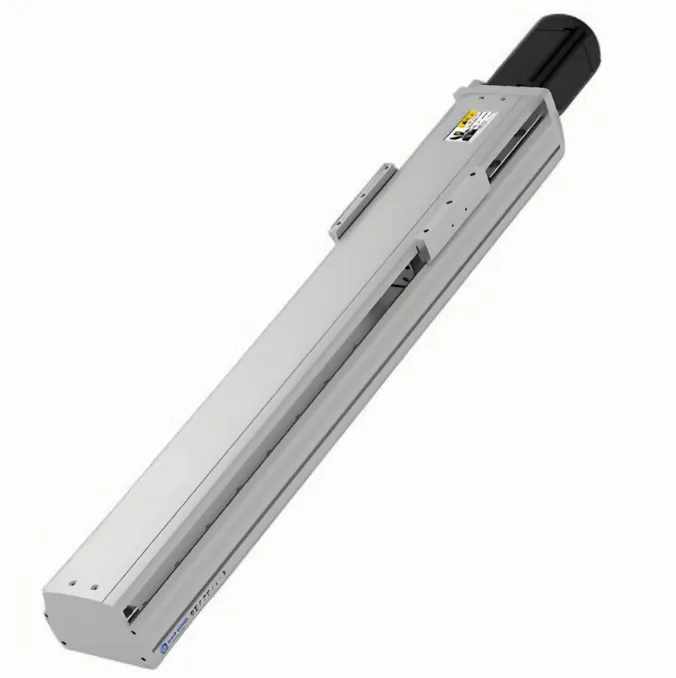

LDB14 Dustproof Belt Linear Module & Sliding Table for Precise Motion

Industry Trends and the Evolution of Linear Motion Systems

The landscape of industrial automation is undergoing a profound transformation, driven by an insatiable demand for higher precision, increased operational speed, enhanced reliability, and greater efficiency. In this dynamic environment, linear motion systems are fundamental components, serving as the backbone for countless automated processes. Modern manufacturing and assembly lines require motion solutions that not only deliver exceptional accuracy but also withstand challenging operational conditions, including the presence of dust, debris, and corrosive agents. This imperative has led to significant innovations in linear module design, pushing boundaries in material science, mechanical engineering, and control integration.

Contemporary industry trends indicate a strong shift towards modular, integrated solutions that offer simplified installation, reduced maintenance, and greater flexibility for customization. End-users are increasingly prioritizing systems that minimize total cost of ownership (TCO) through extended service life and energy-efficient operation. Furthermore, the push towards Industry 4.0 and smart manufacturing necessitates linear modules capable of seamless integration with advanced control systems, offering real-time data for predictive maintenance and optimized performance. It is within this context that specialized products like the LDB14 Linear Module Belt Linear Sliding Table Dustproof Linear Motion Module emerge as critical enablers for next-generation automation, addressing specific industrial challenges with purpose-built engineering.

Dust and environmental contaminants, for instance, are pervasive issues in many industrial settings, leading to premature wear, increased friction, and ultimately, system failure in unprotected linear guides. The development of robust dustproof mechanisms has thus become a paramount concern, directly impacting the longevity and consistent performance of automation equipment. Moreover, the demand for linear modules that can perform across extreme temperature ranges or in highly corrosive environments, such as those found in petrochemical or water treatment plants, necessitates the use of specialized materials and surface treatments.

Understanding the LDB14 Linear Module Belt Linear Sliding Table Dustproof Linear Motion Module: Core Features and Technical Specifications

The LDB14 Linear Module Belt Linear Sliding Table Dustproof Linear Motion Module represents a pinnacle of precision engineering, designed to meet the rigorous demands of modern industrial automation. This integrated linear motion system combines a robust structural profile, a high-efficiency belt drive mechanism, and an advanced dustproof sealing solution, making it ideal for applications requiring high speed, accuracy, and reliability in challenging environments. Its construction typically involves an extruded aluminum alloy profile serving as the base, incorporating precision-machined guide rail seats and a channel for the belt drive system.

At its core, the LDB14 Linear Module Belt Linear Sliding Table Dustproof Linear Motion Module utilizes a synchronous belt drive, preferred for its high-speed capabilities and quieter operation compared to ball screw alternatives in certain applications. The belt, often a high-tensile polyurethane (PU) with embedded steel cords, is pre-tensioned to minimize backlash and ensure consistent, repeatable motion. Precision linear guides, typically H-type or U-type with recirculating ball bearings, are integrated within the profile, providing stable support and ultra-low friction movement for the slider (carriage). The innovative dustproof design is achieved through a seamlessly integrated sealing strip, often a flexible, durable stainless steel or composite material, that covers the guide rail and belt channel, effectively preventing ingress of dust, chips, and liquid splashes.

Key Technical Specifications of the LDB14 Series

Manufacturing Process Flow for LDB14 Linear Modules

The production of the LDB14 Linear Module Belt Linear Sliding Table Dustproof Linear Motion Module follows a meticulously controlled process to ensure consistent quality and performance:

1. Material Sourcing & Pre-treatment: High-grade aluminum alloys (e.g., 6063-T5 or 6061-T6) are selected for their strength-to-weight ratio and corrosion resistance. High-carbon chromium bearing steel (GCr15) is procured for guide rails. Polyurethane (PU) belts with steel tension members are sourced from certified suppliers. All incoming materials undergo stringent quality checks against international standards.
2. Profile Extrusion & CNC Machining: The aluminum base profile is extruded to precise dimensions. Subsequently, critical surfaces, guide rail seating areas, and mounting points are subjected to multi-axis CNC machining. This process achieves micron-level tolerances for straightness, parallelism, and flatness, essential for the module's overall accuracy.
3. Linear Guide Rail Precision Grinding & Assembly: The steel guide rails are precision-ground to achieve exceptional surface finish and geometric accuracy (e.g., to ISO 1101 standards). These rails are then meticulously integrated into the machined aluminum profile, ensuring optimal alignment. Recirculating ball bearing carriages are fitted and pre-loaded to eliminate play and enhance rigidity.
4. Belt Drive System Integration: The high-tensile PU timing belt is installed, guided by precision-machined pulleys. A critical step involves precise tensioning of the belt to ensure optimal engagement with the pulleys, minimize elasticity-induced errors, and reduce backlash, thereby contributing to the module's high repeatability.
5. Dustproof Sealing Mechanism Integration: The specialized dustproof sealing strip (e.g., stainless steel strip, composite elastomer) is carefully integrated along the entire length of the module, covering the open areas of the guide rail and belt channel. This design ensures maximum protection against particulate matter and liquid splashes, upholding specified IP ratings (e.g., IP54/IP65).
6. Motor Mounting & Accessory Integration: Precision-machined motor adapter plates are attached, allowing for seamless integration of various stepper or servomotors. Provisions for limit switches, sensors, and cable management systems are incorporated, ensuring comprehensive functionality.
7. Surface Treatment & Finishing: The aluminum profile undergoes an anodizing process. This electrochemical treatment enhances corrosion resistance, hardness, and provides an aesthetic, durable finish, crucial for longevity in demanding industrial environments.
8. Rigorous Testing & Quality Control: Each LDB14 Linear Module Belt Linear Sliding Table Dustproof Linear Motion Module undergoes a series of stringent tests, including:
   • Geometric Accuracy Testing (straightness, parallelism, flatness, adhering to ISO standards).
   • Positional Accuracy and Repeatability Testing (VDI/DGQ 3441, ISO 230-2).
   • Load Capacity and Deflection Analysis under static and dynamic conditions.
   • Noise and Vibration Analysis to ensure smooth and quiet operation.
   • Environmental Sealing Tests to validate IP ratings against dust and water ingress.
   • Life Cycle Testing: Accelerated tests simulate operational stress to estimate and validate the L10 service life (e.g., 20,000 km or more).
9. Final Assembly & Packaging: Components are carefully assembled, lubricated (where necessary with long-life lubricants), and then securely packaged to prevent damage during transit, ensuring the product arrives in pristine condition ready for installation.

Technical Advantages and Performance Metrics

The design and manufacturing excellence of the LDB14 Linear Module Belt Linear Sliding Table Dustproof Linear Motion Module imbue it with a suite of technical advantages that directly translate into operational benefits for industrial applications:

• Superior Dust Protection (IP54/IP65): The integrated sealing mechanism provides robust protection against particulate matter, chips, and liquid splashes. This is crucial for maintaining performance and extending the service life of internal components, especially in environments like woodworking, machining, or material handling. This significantly reduces downtime and maintenance costs associated with contamination.
• High Speed and Acceleration Capabilities: The belt-driven system allows for much higher linear speeds and rapid accelerations compared to traditional ball screw drives, making it ideal for high-throughput applications such as packaging, sorting, and automated assembly where cycle times are critical. Speeds up to 5 m/s are achievable, dramatically increasing productivity.
• Excellent Positional Repeatability: Despite its high speed, the LDB14 Linear Module Belt Linear Sliding Table Dustproof Linear Motion Module maintains a positional repeatability of ±0.02 mm. This precision is vital for applications like pick-and-place robotics, dispensing, and inspection systems where consistent, accurate positioning is non-negotiable.
• Energy Efficiency: The low-friction linear guides and efficient synchronous belt drive minimize energy consumption, contributing to lower operational costs and aligning with broader industrial sustainability goals. This efficiency translates to less power required for motion, particularly beneficial in continuous operation.
• Corrosion Resistance: The anodized aluminum alloy profile provides inherent resistance to corrosion, while critical internal steel components can be treated or selected for enhanced resilience against rust and chemical exposure. This makes the module suitable for use in wash-down areas, food processing, or humid environments.
• Long Service Life & Low Maintenance: Engineered with durable materials and precision components, the LDB14 Linear Module Belt Linear Sliding Table Dustproof Linear Motion Module is designed for extended operational periods with minimal maintenance requirements. The robust dust protection and high-quality bearings contribute directly to its L10 life expectancy, reducing the frequency of interventions.
• Modular and Adaptable Design: Its modular construction allows for flexible integration into existing systems and easy configuration for various stroke lengths, load requirements, and motor types, offering versatility for diverse application needs.

Application Scenarios and Industry Impact

The versatility and robust performance characteristics of the LDB14 Linear Module Belt Linear Sliding Table Dustproof Linear Motion Module make it an indispensable component across a multitude of industrial sectors. Its ability to combine high speed, precision, and environmental protection opens up new possibilities for automation in challenging conditions.

Target industries benefiting significantly from this technology include:

• Petrochemical Industry: For automated sampling systems, valve actuation in corrosive environments, or precise positioning of sensors and monitoring equipment where dust, chemical vapors, and moisture are prevalent. The corrosion resistance and sealing are paramount here.
• Metallurgy and Heavy Industry: Handling of raw materials, precise cutting, welding, or inspection in environments notorious for metal dust, slag, and extreme temperatures. The robust dust protection and high load capacity are critical.
• Water Supply & Drainage: Actuation of sluice gates, precise dosing systems, or automated inspection of water treatment facilities where moisture, sediment, and chemical exposure are common. Corrosion resistance is a key advantage.
• Packaging and Palletizing: High-speed pick-and-place operations, accurate package alignment, or robotic palletizing where rapid, repetitive motion and continuous operation are essential. The speed and repeatability significantly boost throughput.
• Automated Assembly & Robotics: For robotic arms, gantry systems, and automated workstations requiring precise linear movement for component placement, fastening, or dispensing tasks, especially in environments where fine dust from components might be present.
• Semiconductor Manufacturing: While not a cleanroom-certified product, its dustproof design can significantly reduce particulate generation from its own components and protect internal mechanisms in less stringent cleanroom adjacent areas or when integrated with external filtration.
• Medical Device Manufacturing: For automated testing, assembly, or handling of sterile components where maintaining a clean operational environment and high precision is critical, often integrating with specialized enclosures.
• Printing and Laser Cutting: Providing stable, high-speed movement for print heads or laser cutting optics, ensuring consistent quality and throughput in environments that can produce paper dust or fine material particles.

The impact of integrating the LDB14 Linear Module Belt Linear Sliding Table Dustproof Linear Motion Module is seen in increased operational uptime due to reduced maintenance, enhanced product quality through precise positioning, and improved safety by automating hazardous manual tasks. Its robust design ensures reliability even in the most demanding industrial settings.

Vendor Comparison: Choosing the Right Linear Motion Partner

Selecting the appropriate linear motion module for industrial automation is a critical decision that impacts system performance, longevity, and total cost of ownership. While many vendors offer linear motion solutions, understanding the distinct advantages of the LDB14 Linear Module Belt Linear Sliding Table Dustproof Linear Motion Module through a comparative lens highlights its value proposition.

Below is a comparative analysis illustrating how the LDB14 series stands against generic alternatives in key performance areas:

This comparison highlights the YDMotion LDB14 series' focus on providing a superior blend of speed, precision, and environmental resilience, particularly with its integrated dustproof design and robust construction, which often surpasses the capabilities of standard or economy offerings in the market. Its enhanced repeatability and faster operational speeds directly translate into higher productivity and better product quality for demanding applications.

Customized Solutions for Unique Industrial Demands

Recognizing that off-the-shelf solutions may not always perfectly align with every unique industrial requirement, YDMotion offers extensive customization capabilities for the LDB14 Linear Module Belt Linear Sliding Table Dustproof Linear Motion Module. This flexibility ensures that clients can deploy linear motion systems perfectly tailored to their specific application, maximizing efficiency and performance.

Customization options for the LDB14 series include, but are not limited to:

• Stroke Lengths: Beyond standard offerings, modules can be manufactured to precise stroke lengths, from very short movements up to 6 meters, accommodating large-scale gantry systems or compact workstations.
• Motor Integration: Adaptable mounting plates and coupling mechanisms allow for integration with a wide range of motors, including stepper motors for cost-effective positioning, servomotors for high-dynamic and high-precision tasks, and even specific brand-name motors to match existing control architectures.
• Sensor & Feedback Systems: Customization extends to integrating various position feedback devices such as absolute or incremental encoders, proximity sensors, and limit switches to meet specific control requirements, safety interlocks, or homing procedures.
• Mounting Configurations: Specialized mounting brackets, T-slots, or drilling patterns can be incorporated to facilitate seamless integration into existing machine frames or unique structural designs.
• Environmental Adaptations: For applications in extreme temperatures, vacuum environments, or those requiring even higher levels of chemical resistance, specialized materials, lubricants, and sealing solutions can be specified (e.g., enhanced IP65/IP66 ratings).
• Multi-Axis Systems: The modularity of the LDB14 Linear Module Belt Linear Sliding Table Dustproof Linear Motion Module allows for easy configuration into multi-axis gantry systems (XY, XYZ) for complex 3D motion, often with customized cable management solutions.

YDMotion's engineering team works closely with clients from initial concept to final deployment, providing expert consultation and design support to ensure the customized solution not only meets technical specifications but also optimizes operational performance and budget. This commitment to tailored solutions underscores a partnership approach, delivering precise answers to complex automation challenges.

Real-World Application Case Studies

The practical deployment of the LDB14 Linear Module Belt Linear Sliding Table Dustproof Linear Motion Module in diverse industrial settings showcases its robust capabilities and tangible benefits. These case studies highlight its performance in demanding applications where precision, speed, and environmental protection are paramount.

Case Study 1: High-Speed Sorting in Logistics Warehouses

A major e-commerce logistics provider sought to upgrade its package sorting lines to increase throughput and reduce errors. The existing systems struggled with wear and tear from dust and cardboard fibers, leading to frequent maintenance and inconsistent sorting accuracy. They required a linear motion solution capable of high-speed, repetitive movements with reliable precision in a continuously operating, dusty environment.

Solution: Multiple YDMotion LDB14 Linear Module Belt Linear Sliding Table Dustproof Linear Motion Module units, configured for X-axis movement, were integrated into the sorting system. The modules were selected for their ability to achieve linear speeds of up to 4 m/s and their IP54 dustproof rating, which effectively protected internal components from warehouse debris.

Outcome: The new system achieved a 30% increase in sorting capacity, processing over 10,000 packages per hour. The positional repeatability of ±0.02 mm significantly reduced mis-sorts. Crucially, maintenance intervals were extended by 50% due to the effective dust protection, resulting in substantial cost savings and improved operational efficiency. The robust design proved capable of 24/7 operation with minimal downtime.

Case Study 2: Precision Dispensing in Electronics Manufacturing

An electronics manufacturer needed an automated solution for applying a microscopic amount of adhesive to sensitive circuit board components. The process demanded extremely high positional accuracy and consistent, clean operation to prevent contamination and ensure product integrity. Ball screw systems were too slow for the desired cycle time, and open belt drives risked particle generation.

Solution: A customized YDMotion LDB14 Linear Module Belt Linear Sliding Table Dustproof Linear Motion Module was chosen for its superior repeatability and integrated dustproof design. Equipped with a servomotor, the module provided the necessary dynamic performance for rapid dispensing cycles while maintaining a clean operational environment. The sealed design prevented any internal wear particles from contaminating the workspace.

Outcome: The manufacturer achieved a dispensing accuracy within ±0.02 mm, leading to a significant reduction in material waste and rework. The cycle time for the adhesive application was cut by 25%, boosting overall production speed. The clean operation ensured zero component contamination, upholding stringent quality standards for high-value electronic assemblies.

Commitment to Quality and Customer Trust

YDMotion is built on a foundation of unwavering commitment to quality, reliability, and customer satisfaction, embodying the highest standards of Authoritativeness and Trustworthiness in the B2B sector. Our dedication ensures that every LDB14 Linear Module Belt Linear Sliding Table Dustproof Linear Motion Module delivered meets and exceeds the rigorous expectations of industrial professionals.

• Certifications and Compliance: Our manufacturing processes adhere strictly to international quality management systems, notably ISO 9001:2015. This certification attests to our systematic approach to quality assurance, from material procurement to final product inspection. Furthermore, our products comply with relevant CE (Conformité Européenne) directives, ensuring they meet European safety, health, and environmental protection requirements. Our robust testing protocols, including those for geometric accuracy, repeatability (ISO 230-2), and environmental sealing, are a testament to our commitment to data-driven performance verification.
• Warranty Commitments: We stand behind the quality of our LDB14 Linear Module Belt Linear Sliding Table Dustproof Linear Motion Module with a standard 12-month warranty against manufacturing defects. Extended warranty options are available to provide additional peace of mind for critical applications, underscoring our confidence in product durability and reliability.
• Lead Time & Fulfillment: Understanding the importance of timely project execution, YDMotion optimizes its production and supply chain. Standard LDB14 Linear Module Belt Linear Sliding Table Dustproof Linear Motion Module configurations typically have a lead time of 2-3 weeks. For customized solutions or high-volume orders, a dedicated project manager will provide accurate lead time estimates, typically ranging from 4-6 weeks, and ensure transparent communication throughout the fulfillment process.
• Comprehensive Customer Support: Our dedicated technical support team comprises experienced engineers ready to assist with product selection, integration, troubleshooting, and maintenance guidance. Support is available through various channels, including phone, email, and online resources. We pride ourselves on responsive and knowledgeable assistance, ensuring our partners can maximize the performance and longevity of their YDMotion products. With over a decade of experience in linear motion solutions, YDMotion has served a broad spectrum of clients, from SMEs to multinational corporations, fostering long-term partnerships built on trust and mutual success.

Frequently Asked Questions (FAQ)

Q1: What is the typical service life of the LDB14 Linear Module?

A1: The LDB14 Linear Module Belt Linear Sliding Table Dustproof Linear Motion Module is designed for a long service life, typically achieving an L10 life of 20,000 km or more under specified load and speed conditions. Regular maintenance and proper operation contribute to maximizing this lifespan.

Q2: Can the LDB14 operate in wet or wash-down environments?

A2: Yes, the LDB14 Linear Module Belt Linear Sliding Table Dustproof Linear Motion Module comes standard with an IP54 dustproof rating, offering protection against dust ingress and splashing water. For applications requiring higher resistance to water jets or more rigorous wash-downs, an optional IP65 rating can be specified with additional sealing measures.

Q3: What kind of motor can be attached to the LDB14 module?

A3: The LDB14 series is highly adaptable and can accommodate various motor types, including NEMA standard stepper motors, servomotors, and even specific brand motors. We provide standard motor adapter plates, and custom plates can be designed to match your existing motor inventory or specific application requirements.

Q4: What maintenance is required for the LDB14 Linear Module?

A4: Thanks to its dustproof design and pre-lubricated components, the LDB14 Linear Module Belt Linear Sliding Table Dustproof Linear Motion Module requires minimal maintenance. Periodic inspection of the sealing strip for integrity, occasional cleaning of the outer surface, and re-lubrication of specific components (as per the manual) are generally sufficient to ensure optimal performance over time.

Q5: Is customization available for specific application needs?

A5: Absolutely. YDMotion specializes in providing tailored linear motion solutions. We offer extensive customization options for stroke length, load capacity, motor integration, sensor configuration, mounting patterns, and environmental adaptations to perfectly match your unique industrial application.

References

1. ISO 9001:2015. Quality management systems – Requirements. International Organization for Standardization.
2. ISO 230-2:2014. Test code for machine tools – Part 2: Determination of accuracy and repeatability of positioning of numerically controlled axes. International Organization for Standardization.
3. VDI/DGQ 3441. Statistical Testing of the Operational Accuracy of Machine Tools. Verein Deutscher Ingenieure / Deutsche Gesellschaft für Qualität.
4. Slocum, A. H. (1992). Precision Machine Design. Prentice Hall.
