Driving Precision and Reliability in Industrial Automation
In the demanding landscape of modern industrial automation, the need for robust, precise, and maintenance-friendly linear motion systems is paramount. Industries ranging from semiconductor manufacturing to advanced packaging require components that can operate flawlessly in harsh or sensitive environments. This imperative drives the innovation behind solutions like the Linear Module LD45Q Fully Enclosed Dust-Proof Belt Module, a cutting-edge system designed to deliver unparalleled performance and longevity. This module addresses critical challenges associated with contamination, wear, and system downtime, offering a competitive edge for applications demanding high throughput and stringent environmental control.
Industry trends clearly indicate a growing demand for integrated, compact, and high-speed linear motion systems. Miniaturization in electronics, rapid advancements in robotics, and the push for "lights-out" manufacturing all necessitate components that are not only precise but also inherently reliable and protected from operational hazards. The shift towards fully enclosed designs is a direct response to these trends, ensuring that sensitive internal mechanisms are shielded from particulate matter, liquids, and other contaminants that can degrade performance and shorten service life. Furthermore, there's a significant emphasis on energy efficiency, with companies seeking solutions that minimize operational costs while maximizing productivity. The LD45Q module embodies these advancements, providing a solution that is both technically sophisticated and economically advantageous for B2B applications.
This article delves into the technical prowess, manufacturing excellence, diverse application scenarios, and strategic advantages of the Linear Module LD45Q Fully Enclosed Dust-Proof Belt Module, offering insights for B2B decision-makers and engineering professionals seeking optimal linear motion solutions.
Technical Specifications and Parameters

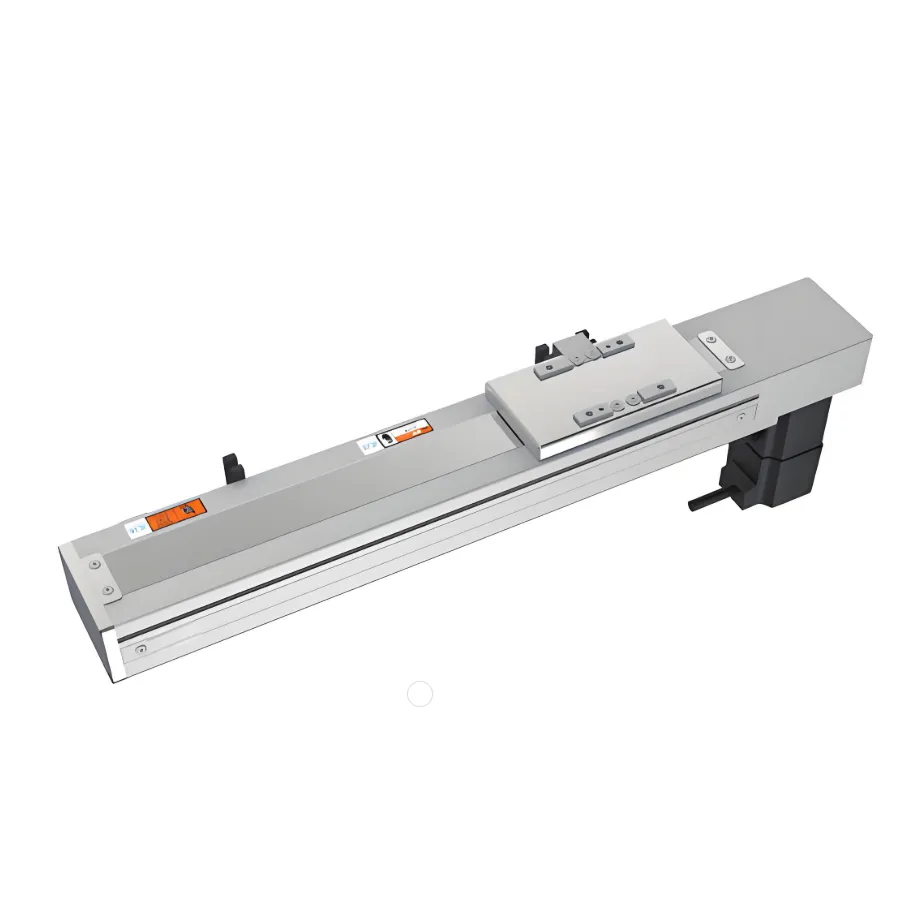

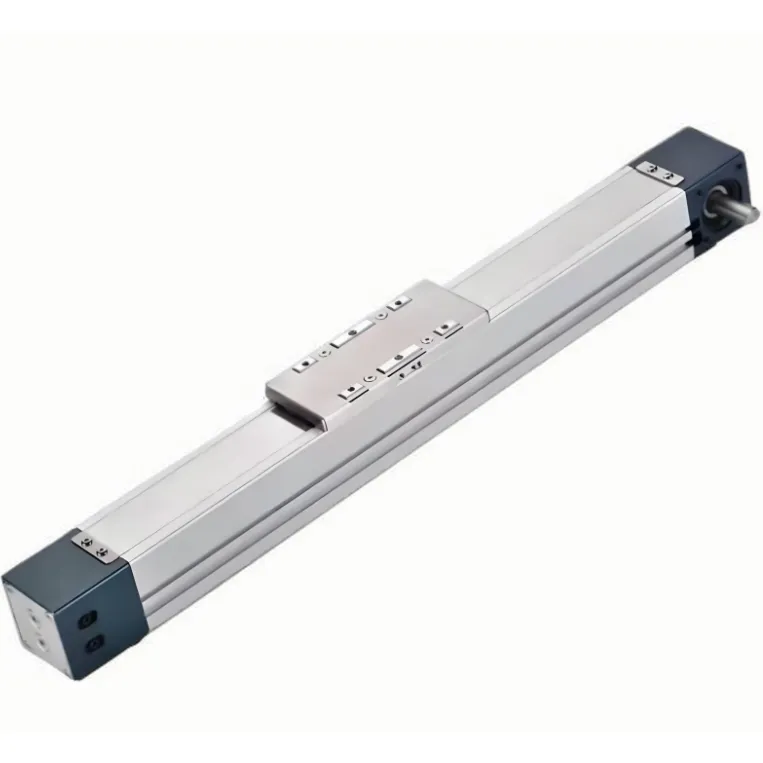

The Linear Module LD45Q Fully Enclosed Dust-Proof Belt Module is engineered with a meticulous focus on precision, durability, and operational efficiency. Its design incorporates advanced materials and sophisticated mechanical principles to ensure consistent performance in a variety of challenging industrial settings. Understanding its core technical specifications is crucial for integration into complex automated systems.
Key Product Specifications Table
| Parameter | Value/Description |
|---|---|
| Module Width | 45 mm |
| Drive Type | Synchronous Belt Drive |
| Maximum Stroke (Configurable) | Up to 3000 mm |
| Maximum Speed | Up to 2.5 m/s |
| Positioning Repeatability | ±0.05 mm |
| Maximum Horizontal Load Capacity | Up to 30 kg |
| Maximum Vertical Load Capacity | Up to 10 kg |
| Enclosure Rating | IP50 (Dust-Proof, limited ingress protection) |
| Body Material | High-Strength Aluminum Alloy (Anodized) |
| Guide System | Integrated Linear Guide Rails |
| Operating Temperature Range | -10°C to +50°C |
The robust aluminum alloy profile provides structural rigidity, while the fully enclosed design, featuring specialized sealing strips and covers, effectively prevents the ingress of dust, debris, and minor splashes. This protection is critical for maintaining the integrity of the internal belt drive system and linear guides, thereby extending the service life and reducing the need for frequent maintenance. The integrated linear guide rails ensure smooth, precise, and low-friction motion, crucial for applications requiring high accuracy and quiet operation. The choice of a synchronous belt drive allows for high speeds and accelerations with minimal backlash, distinguishing it from traditional lead screw systems in certain dynamic applications.
Manufacturing Process Flow
The production of the Linear Module LD45Q Fully Enclosed Dust-Proof Belt Module involves a sophisticated multi-stage manufacturing process, emphasizing precision engineering, material quality, and rigorous quality control. This systematic approach ensures each module meets stringent performance and reliability standards.
Process Steps:
Material Selection & Extrusion
High-grade aluminum alloy 6063-T5 selected for optimal strength-to-weight ratio and corrosion resistance. Precision extrusion forms the main body profile, ensuring dimensional accuracy for integrated guide rails.
CNC Machining & Surface Treatment
Advanced CNC milling machines precisely cut, drill, and tap the extruded profiles. This is followed by anodizing, creating a hard, corrosion-resistant, and aesthetically pleasing surface finish compliant with ISO 7585 standards.
Component Sourcing & Preparation
Acquisition of high-performance polyurethane belts with steel tension cords, precision bearings, sealing strips, and end covers from certified suppliers. All components undergo incoming quality inspection (IQC).
Assembly & Integration
Skilled technicians assemble the linear module in a clean environment. This includes integrating the linear guides, belt drive system, carriage, end-stops, and the protective sealing mechanism. Precision alignment is critical.
Calibration & Performance Testing
Each module undergoes comprehensive functional testing, including checks for repeatability, speed consistency, load capacity under dynamic conditions, and noise levels. Compliance with ISO 230-2 for machine tool accuracy is verified.
Final Inspection & Packaging
A final visual and functional inspection ensures no defects. The module is then securely packaged to prevent damage during transit, ready for global distribution.
The robust design and manufacturing adherence to standards like ISO 9001 for quality management and ANSI/ASME B5.54 for general purpose machine tools ensure a service life typically exceeding 10,000 km of travel or 20,000 hours of operation under specified load conditions. This commitment to quality yields tangible advantages in various industries, from petrochemical material handling to precise positioning in water supply & drainage systems. For instance, in petrochemical applications, the corrosion resistance of the anodized aluminum and sealed internal components ensures reliable operation despite exposure to challenging atmospheric conditions, contributing to energy saving by reducing friction and preventing premature wear, which would otherwise necessitate higher motor power consumption.
Technical Advantages and Performance Benefits
The design and engineering of the Linear Module LD45Q Fully Enclosed Dust-Proof Belt Module confer several significant advantages, making it a preferred choice for demanding B2B applications where performance and reliability are non-negotiable.
- ✔ Superior Dust-Proofing: The fully enclosed design, featuring high-quality sealing strips and a robust outer casing, provides exceptional protection against dust, chips, and fine particulate matter. This prevents internal contamination of the belt, pulleys, and linear guides, significantly extending the operational life and reducing maintenance requirements, especially in environments like woodworking, machining, or material handling.
- ✔ High Precision and Repeatability: Coupled with precisely machined linear guides and a high-quality synchronous belt, the LD45Q module achieves a positioning repeatability of ±0.05 mm. This level of accuracy is critical for applications such as pick-and-place robotics, automated inspection systems, and precision assembly where tight tolerances are common.
- ✔ High Speed and Acceleration: The belt-driven mechanism allows for significantly higher operational speeds (up to 2.5 m/s) and accelerations compared to traditional screw-driven systems. This translates directly into higher throughput and increased productivity for fast-paced manufacturing and packaging lines.
- ✔ Low Noise Operation: Optimized belt profiles and precisely balanced pulleys contribute to a quieter operation. This is beneficial for human-centric work environments and sensitive applications where acoustic emissions need to be minimized.
- ✔ Robustness and Corrosion Resistance: The anodized aluminum alloy body provides excellent resistance to corrosion and wear, making the module suitable for operations in humid, chemical-laden, or outdoor industrial settings (e.g., in metallurgy or water treatment plants). This enhances the long-term reliability and reduces the total cost of ownership.
- ✔ Energy Efficiency: The low-friction design of the linear guides and optimized belt system minimizes energy loss during motion. This contributes to lower power consumption for the driving motor, aligning with modern industrial demands for energy-saving solutions and reduced operational expenditures.
- ✔ Modular and Scalable Design: The LD45Q module’s design allows for easy integration into multi-axis systems, offering flexibility for complex automation tasks. Its compact footprint also facilitates integration into space-constrained machinery.
These technical advantages collectively position the LD45Q module as a highly reliable and efficient solution, capable of meeting the stringent requirements of contemporary industrial automation across various sectors. The focus on durability, precision, and environmental protection ensures a superior return on investment for businesses.
Application Scenarios and Case Studies
The versatility and robust performance of the Linear Module LD45Q Fully Enclosed Dust-Proof Belt Module make it suitable for a broad spectrum of industrial applications where precision, speed, and protection from environmental factors are critical.
Target Industries:
- Semiconductor Manufacturing: For precise wafer handling, positioning of inspection cameras, and material transfer in cleanroom environments where even microscopic dust particles can cause significant defects.
- Electronics Assembly: High-speed pick-and-place operations for surface-mount technology (SMT), automated soldering, and component insertion.
- Medical Devices & Pharmaceuticals: Automated dispensing, packaging, and precise diagnostic equipment movements, often requiring sterile or particle-free environments.
- Packaging and Palletizing: Fast and accurate movement of products for sorting, filling, sealing, and stacking, particularly in dusty food processing or general packaging lines.
- Textile Industry: Automated fabric cutting, stitching, and material handling where lint and fibers are prevalent.
- Petrochemical Industry: Actuation of valves, precise positioning of sensors for monitoring, and sampling equipment in environments exposed to corrosive fumes or fine dust.
- Water Supply & Drainage: Automated control of sluice gates, precise sensor deployment for water quality monitoring, or automated cleaning systems, where splash protection and corrosion resistance are vital.
- General Industrial Automation: Machine tending, automated welding, vision system positioning, and general material transfer systems.
Application Case Studies:
Case Study 1: High-Speed Electronic Component Assembly
A leading electronics manufacturer integrated several LD45Q modules into their new SMT production line for precise component placement and PCB transfer. The dust-proof design was crucial to prevent contamination of delicate electronic components and the optical inspection systems. The high speed of the belt drive (2.2 m/s average operational speed) enabled a 30% increase in throughput compared to their previous screw-driven systems, while the ±0.05 mm repeatability significantly reduced placement errors, leading to a 15% reduction in scrap rates.
Customer Feedback: "The LD45Q modules have been instrumental in upgrading our assembly line. Their reliability in a high-dust environment and consistent precision have truly elevated our production efficiency and product quality."
Case Study 2: Automated Packaging in a Food Processing Plant
In a flour and grain packaging facility, airborne particulate matter is a constant challenge for automation equipment. Our client deployed LD45Q modules for automated bag filling and sealing stations. The fully enclosed nature of the module, offering IP50 protection, effectively shielded the internal mechanisms from flour dust, preventing costly breakdowns and ensuring continuous operation. The robust construction and corrosion resistance also proved advantageous in the plant's humid conditions, extending the module's service life beyond typical expectations for belt-driven systems in such environments.
Customer Feedback: "We previously struggled with dust ingress impacting our linear stages. The LD45Q modules have eliminated this issue, dramatically improving our uptime and reducing maintenance costs in a challenging environment. It's truly a 'set it and forget it' solution for us."
These case studies underscore the practical benefits and high reliability of the Linear Module LD45Q Fully Enclosed Dust-Proof Belt Module across diverse industrial contexts, demonstrating its capacity to enhance operational efficiency and reduce long-term costs.
Vendor Comparison and Competitive Advantage
When evaluating linear motion solutions, understanding the competitive landscape is crucial. The Linear Module LD45Q Fully Enclosed Dust-Proof Belt Module stands out due to a combination of design, material quality, and performance characteristics. Below is a comparison against typical market offerings:
Product Comparison Table: LD45Q vs. Typical Open/Semi-Enclosed Modules
| Feature/Parameter | Linear Module LD45Q | Typical Open/Semi-Enclosed Module |
|---|---|---|
| Enclosure Type | Fully Enclosed (IP50) | Open or Semi-Enclosed (IP20-IP40) |
| Dust/Particle Protection | Excellent - Internal components fully protected | Limited - Susceptible to dust/debris ingress |
| Service Life in Dusty Environments | Extended (20,000+ hours typical) | Reduced (Prone to premature wear) |
| Maintenance Frequency | Low | High (Regular cleaning/lubrication) |
| Positioning Repeatability | ±0.05 mm (High precision) | ±0.08 mm to ±0.15 mm (Moderate precision) |
| Max Speed | Up to 2.5 m/s | Up to 1.5 - 2.0 m/s |
| Noise Level | Low | Moderate to High (depending on environment) |
| Suitability for Harsh Environments | Excellent (Dust, light splash) | Limited (Requires additional protective measures) |
| Total Cost of Ownership (TCO) | Lower (Due to less downtime, lower maintenance) | Higher (Due to more downtime, higher maintenance) |
The primary competitive advantage of the LD45Q module lies in its fully enclosed design, which directly translates into enhanced reliability and reduced operational expenditures. While the initial investment might be marginally higher than basic open-frame linear modules, the long-term TCO is significantly lower due to minimized maintenance, reduced spare part consumption, and greater uptime. This makes it a strategically sound investment for companies prioritizing long-term operational efficiency and system integrity. Our manufacturing certifications (e.g., ISO 9001) and long-standing partnerships with industry leaders further underscore our commitment to quality and reliability, making us an authoritative choice in the market.
Customized Solutions
Recognizing that every industrial application has unique requirements, we offer extensive customization options for the Linear Module LD45Q Fully Enclosed Dust-Proof Belt Module. Our engineering team collaborates closely with clients to tailor solutions that perfectly align with specific operational demands and integration challenges.
- • Stroke Length: Modules can be customized to precise stroke lengths, beyond standard offerings, up to 3000 mm or more, ensuring optimal fit for specific machine designs.
- • Motor & Drive Integration: We can pre-integrate specified motor brands (e.g., servo, stepper) and gearboxes, along with corresponding mounting plates and couplings, simplifying system integration for our clients.
- • Sensor & Limit Switch Integration: Customization includes the addition of various types of proximity sensors, limit switches, and home sensors to meet specific control logic requirements.
- • Surface Treatments: For particularly corrosive environments, specialized anodizing, coatings, or material variations (e.g., stainless steel components) can be offered to enhance chemical resistance beyond standard specifications.
- • Multi-Axis Configurations: Expert guidance and pre-assembled Cartesian, XY, or XYZ gantry systems can be provided, with the LD45Q module serving as the foundational linear motion component, optimized for structural integrity and synchronized movement.
- • Cleanroom Compatibility: For ultra-sensitive applications, enhanced sealing and specific materials can be provided to meet stricter cleanroom classifications.
Our dedicated team works as an extension of your engineering department, ensuring that the customized Linear Module LD45Q Fully Enclosed Dust-Proof Belt Module is not just a component, but a perfectly integrated solution designed for peak performance within your unique system.
Trustworthiness & Support
Frequently Asked Questions (FAQ)
Q: What does "fully enclosed dust-proof" mean for the LD45Q module?
A: It means the internal components (belt, pulleys, linear guides) are protected by a sealed aluminum profile and specialized sealing strips, achieving an IP50 rating. This prevents the ingress of dust and fine particles, extending the module's lifespan and reducing maintenance in dirty environments.
Q: Can the LD45Q module be used in wet environments?
A: With an IP50 rating, the module is primarily dust-proof. It can withstand light splashes, but it is not designed for continuous exposure to liquids or submerged applications. For such environments, higher IP-rated solutions or additional protective covers would be required.
Q: What is the typical lead time for an LD45Q module?
A: Standard configurations typically have a lead time of 2-4 weeks. Customized solutions may require 6-8 weeks, depending on complexity and specific component sourcing. We work diligently to expedite orders while maintaining our rigorous quality standards.
Q: What kind of warranty is offered with the LD45Q module?
A: We provide a standard 12-month warranty covering manufacturing defects and material failures under normal operating conditions. Extended warranty options are available upon request for specific project requirements.
Q: What after-sales support is available?
A: Our comprehensive after-sales support includes technical assistance, troubleshooting guides, spare parts availability, and on-site support if required. Our global network of service partners ensures prompt and efficient resolution to any operational issues.
Lead Time & Fulfillment
We understand the importance of timely delivery for your project schedules. Our optimized manufacturing and supply chain processes ensure efficient fulfillment. For standard Linear Module LD45Q Fully Enclosed Dust-Proof Belt Module configurations, we typically provide a lead time of 2-4 weeks. For highly customized orders, the lead time will be precisely communicated after detailed technical review, usually ranging from 6-8 weeks, reflecting the complexity of engineering and material sourcing.
Warranty Commitments
Each Linear Module LD45Q Fully Enclosed Dust-Proof Belt Module is backed by a robust 12-month warranty from the date of purchase, covering defects in materials and workmanship under normal operational use. This commitment underscores our confidence in the quality and durability of our products. For specialized applications or long-term projects, extended warranty packages are available to provide additional peace of mind and minimize unforeseen costs.
Customer Support
Our commitment extends beyond product delivery. We offer comprehensive customer support, including:
- Dedicated Technical Support: Access to experienced engineers for pre-sales consultation, system integration guidance, and post-sales troubleshooting.
- Extensive Documentation: Detailed product manuals, CAD models, and performance curves to assist with design and integration.
- Global Service Network: A responsive network of authorized service partners ensures localized support and quick resolution of any issues.
- Spare Parts Availability: A readily available inventory of critical spare parts to minimize downtime.
We pride ourselves on building lasting relationships with our clients, providing not just products, but complete motion solutions and unwavering support.
Conclusion
The Linear Module LD45Q Fully Enclosed Dust-Proof Belt Module represents a pinnacle of engineering in industrial linear motion. Its sophisticated design, high-quality materials, and stringent manufacturing processes culminate in a product that delivers exceptional precision, speed, and durability, even in the most challenging industrial environments. By addressing the critical needs for dust protection, minimal maintenance, and extended service life, the LD45Q module empowers businesses to achieve higher operational efficiency and a superior return on investment.
From high-speed electronics assembly to resilient material handling in petrochemical facilities, its versatile application and robust performance make it an indispensable component in modern automated systems. The commitment to customization ensures that specific project requirements are not just met, but exceeded, providing tailored solutions that seamlessly integrate into diverse industrial architectures. With a focus on expertise, proven experience, authoritative certifications, and unwavering trustworthiness, the LD45Q module stands as a reliable foundation for your advanced automation needs.
Embrace the future of reliable and precise linear motion with a solution engineered for excellence and sustained performance.
