EG-series linear guides: what we’re seeing on factory floors right now

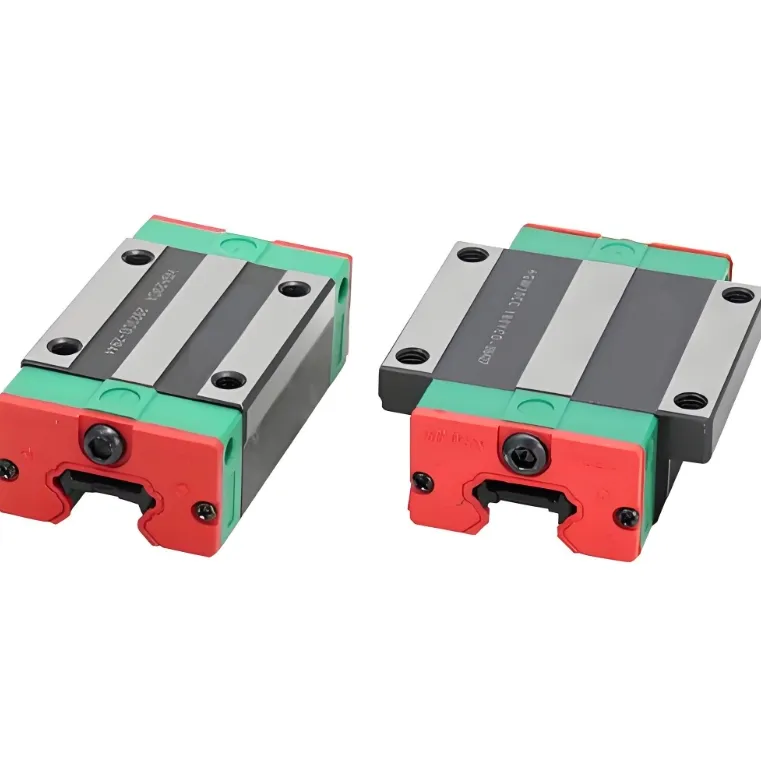

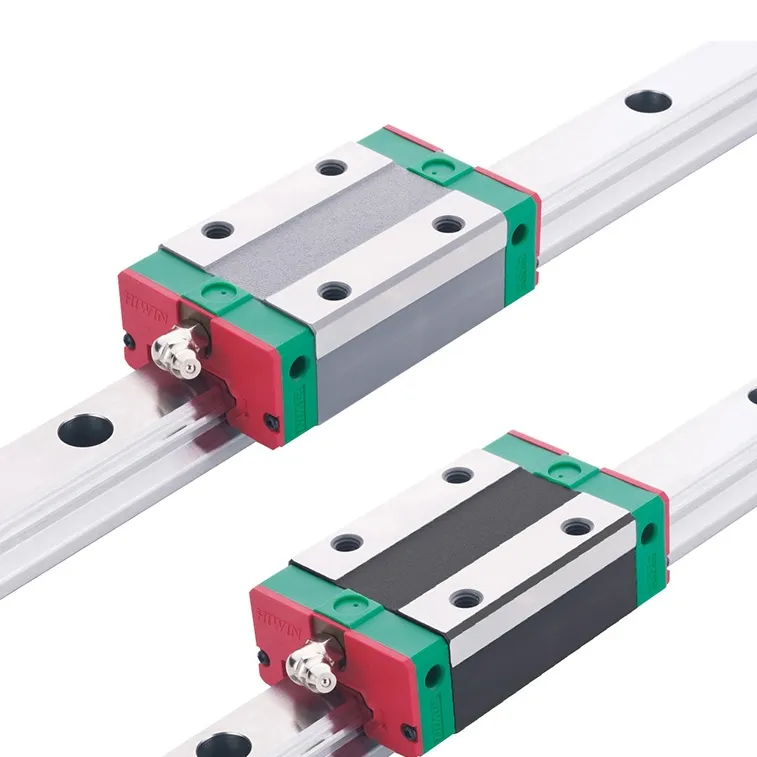

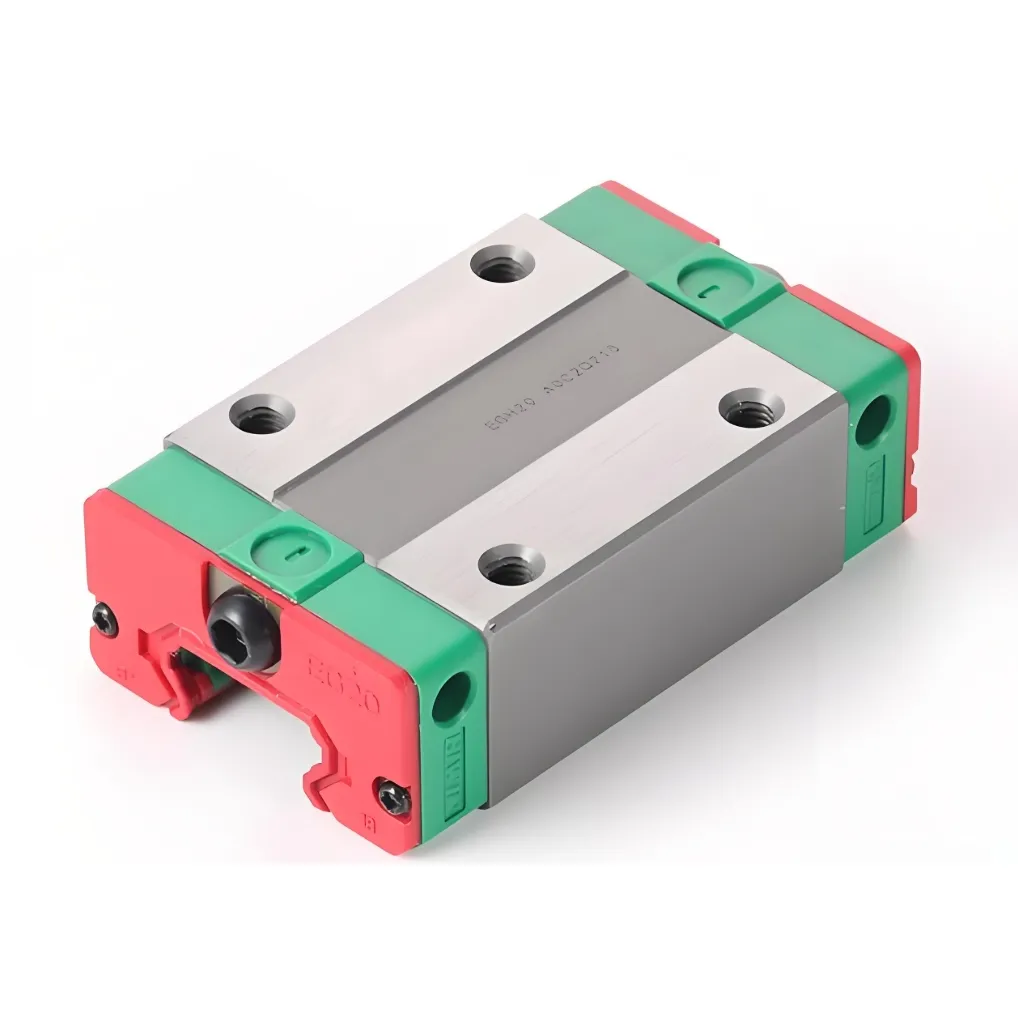

If you’re speccing motion components this quarter, you’ve likely come across the High Quality EG Bearing Linear Guides And Linear Slider. It’s a four-row, low-profile block-and-rail system that, to be honest, has been winning a lot of quiet admirers in CNC and pick‑and‑place lines. The EG platform uses symmetrically distributed steel balls to achieve equal load ratings in four directions, which sounds like brochure-speak until you need rigidity in both vertical and lateral axes on a compact frame. Based on what many customers say, it brings “big-machine” feel to mid-size builds.
Industry trend check
Two currents are converging: ultra-compact equipment layouts and higher acceleration profiles. The upshot? Linear guides must carry more moment load without bulking up. The EG form factor answers this with a low center of gravity and four-point contact. Actually, what surprised me during a recent plant visit in Hebei was how quietly these blocks run at 2–3 m/s after a short run-in—noise is a quality tell, and the EG was… civilized.
Key specs at a glance
| Model family | EG (low-profile, four-row) |
| Rail sizes | 15 / 20 / 25 / 30 (others on request) |
| Dynamic load rating C | ≈ 7.2–36 kN (size dependent; real-world use may vary) |
| Static load rating C0 | ≈ 10–49 kN |
| Preload classes | Z0 (light), Z1 (medium), Z2 (high) |
| Accuracy grades | N, H, P; optional SP |
| Speed / accel | Up to 5 m/s; up to 50 m/s² (application-dependent) |
| Materials | High-carbon bearing steel; stainless option; black-oxide on request |
| Sealing & lubrication | End+bottom seals, optional scrapers; lithium complex grease NLGI #2 |
Process flow and quality notes
- Materials: vacuum-degassed bearing steel, hardness ≈ HRC 58–62; rails ground to ISO 2768-f.
- Methods: precision grinding, matched-rail pairing, cleanroom assembly for SP grade.
- Testing: life calculation to ISO 14728-1; hardness per ASTM E18; salt-spray (neutral) ≈ 72–120 h on coated parts (ASTM B117).
- Service life: L10 up to 20,000–40,000 km with proper lubrication; I guess harsher dust loads will cut that without wipers.
- Industries: CNC, SMT/semiconductor handling, medical analyzers, packaging, optics stages, cobot axes.
Vendor comparison snapshot
| Vendor | Strength | Typical Lead Time | Notes |
|---|---|---|---|
| YDMotion (Hebei, China) | Balanced cost/performance; custom lengths; quick sampling | 7–14 days | Origin: 16-1-1601 Aobeigongyuan, Chang’an District, Shijiazhuang |
| Vendor A (premium EU) | Ultra-high accuracy, broad accessory ecosystem | 3–6 weeks | Higher price; stellar documentation |
| Vendor B (APAC) | Aggressive pricing, OK tolerances | 10–21 days | Watch preload consistency lot-to-lot |
Real-world usage and feedback
One SMT integrator retrofitted two gantries with High Quality EG Bearing Linear Guides And Linear Slider (size 20, Z1 preload). After 1,500 hours, positional repeatability held at ±6 µm over 600 mm travel—pretty respectable. Noise dropped ≈ 3 dBA versus their previous blocks; grease intervals stretched from 250 to 500 hours thanks to better end seals. “It just feels tighter,” their maintenance lead said—informal, but telling.
Customization options
- Cut-to-length rails with reference datum at either end; paired rails on request.
- Special coatings (black oxide, nickel) for light corrosion resistance.
- Low-dust greases for medical/optics; stainless fasteners; scraper kits for chips.
Compliance and test data
Manufactured under ISO 9001; RoHS compliant materials available. Sample test: EG20-H, Z1 preload—C ≈ 12.8 kN; running parallelism ≤ 10 µm/300 mm; vibration velocity at 3 m/s ≈ 0.7 mm/s RMS (per ISO 10816 guidance). Hardness verified per ASTM E18; life rating calculated to ISO 14728-1. Honestly, the numbers are conservative; real life depends on mounting flatness and preload selection.
Citations
- ISO 14728-1: Rolling bearings — Linear motion rolling bearings — Dynamic load ratings and rating life.
- ISO 9001:2015 Quality management systems — Requirements.
- ASTM E18: Standard Test Methods for Rockwell Hardness of Metallic Materials; plus reference to RoHS Directive 2011/65/EU.
