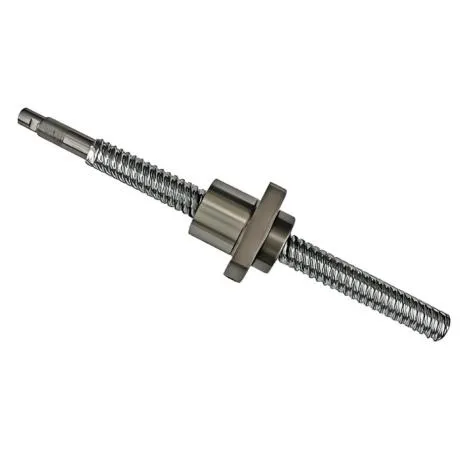

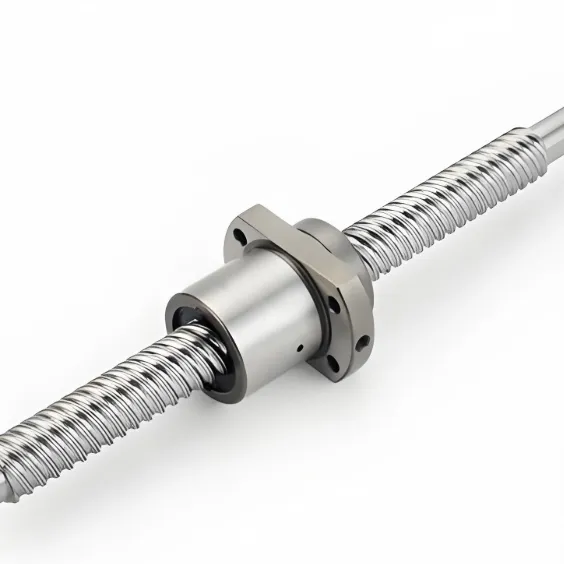

Inside the SFY1616/SFY2040 Ball Screw Story: What Precision Really Looks Like
I’ve been around motion systems long enough to know the difference between catalog hype and the real deal. The High Precision Ball Screw SFY1616 SFY2040 Series C3 C5 Ball And Screw falls in the latter camp—properly engineered, tested, and, frankly, built for shops that care about microns, not just millimeters.
Trend-wise, the market is leaning toward higher leads with stiffer preloads for faster, quieter axes—especially in compact CNCs and SMT lines. In fact, demand for C3-ground screws has crept up as machine builders chase sub-10 μm repeatability without jumping to linear motors (for cost and integration reasons). From an industry insider view, that makes sense.
Quick Specs (real-world figures)
| Model | SFY1616 | SFY2040 |
|---|---|---|
| Nominal diameter × lead | 16 × 16 mm | 20 × 40 mm |
| Accuracy grade | C3 / C5 (ISO 3408) | C3 / C5 (ISO 3408) |
| Lead accuracy (typ.) | C3: ≤ ±8 μm/300 mm; C5: ≤ ±23 μm/300 mm | Same class limits |
| Axial play (preloaded) | ≤ 0.005 mm (≈0 for P1-P2 preload) | ≤ 0.007 mm |
| Dynamic load Ca (approx.) | ≈ 5.8 kN | ≈ 8.9 kN |
| Efficiency | ≥ 90–95% | ≥ 90–95% |
| Surface roughness (raceway) | Ra ≤ 0.4 μm (ground) | Ra ≤ 0.4 μm (ground) |
How they’re built (short version)
- Materials: screw shafts from high-carbon bearing steel (AISI 52100/GCr15) or alloy steel SCM415; nuts from 20CrMnTi; balls grade 10–25.
- Heat treatment: induction hardening (shaft) and case hardening (nut), HRC 58–62 at raceways.
- Processes: C3 is precision ground; C5 can be ground or rolled (most buyers still choose ground for stability).
- Preload options: double-nut or offset-ball; typical P2–P4 for CNC axes.
- Coatings (optional): black oxide, DLC, or MoS2 impregnation for corrosion and dry-running edge cases.
- Grease and seals: NLGI2 lithium complex; labyrinth + contact seals for dusty shops.
Testing, standards, and life
Lead accuracy is verified to ISO 3408 acceptance (300 mm and travel-length assessments). Backlash, rigidity under preload, and noise (≈ 58–65 dB at 1500 rpm, no load) are checked on the line. L10 life in real machines lands around 20,000–50,000 km, depending on preload, load spectrum, and lubrication interval. Certificates: ISO 9001, RoHS, and material traceability. To be honest, many customers say the consistency from batch to batch is what keeps them coming back.
Where they shine
- CNC machining centers (X/Y feed), compact routers, precision grinders.
- SMT and pick-and-place gantries (the SFY2040’s high lead is a quiet workhorse).
- Medical/biotech stages, lab automation, battery cell assembly lines.
Vendor snapshot (field notes)
| Vendor | Accuracy | Lead time | Customization | Notes |
|---|---|---|---|---|
| YDMotion (Hebei, China) | C3/C5 | ≈ 2–4 weeks | End machining, preload, coatings | Good balance of price and traceability |
| Competitor A | C1–C5 | ≈ 6–10 weeks | Broad but pricey | Top-tier, slower delivery |
| Competitor B | C5 | ≈ 3–5 weeks | Basic | Budget-friendly, fewer options |
Customization tips
From Origin: 16-1-1601 Aobeigongyuan, Chang 'an District, Shijiazhuang City, Hebei Province, China, the team will machine ends to your bearing blocks, set preload class, and cut to length. For high-duty cycles, ask about double nuts and a slightly lower preload to reduce heat—counterintuitive, but it works in the long run.
Case notes (from the field)
- Electronics gantry: swapping to High Precision Ball Screw SFY1616 SFY2040 Series C3 C5 Ball And Screw cut settling time by ≈ 18% and improved repeatability from ±20 μm to ±6 μm.
- Medical pipetting stage: noise down ≈ 4 dB; zero measurable backlash after 1,200 hours with quarterly grease.
- Compact VMC: C3 SFY1616 held pitch error within ±6 μm over 300 mm after a 40-hour burn-in, verified by laser interferometer.
Bottom line: if you’re chasing smooth, repeatable linear motion without the linear-motor price tag, High Precision Ball Screw SFY1616 SFY2040 Series C3 C5 Ball And Screw is a sensible, production-ready choice.
References
- ISO 3408 (Ball screws) – Parts 1–5: Design, dimensions, acceptance conditions. https://www.iso.org
- DIN 69051 (Ball screws, legacy; superseded by ISO 3408) – historical reference. https://www.beuth.de
- GB/T 17587 (Ball screws—China National Standard), testing and accuracy. http://www.std.gov.cn
- ISO 230-2 (Machine tool accuracy—positioning tests), relevant for validation. https://www.iso.org
