The KK Series Linear Module represents a breakthrough in industrial automation technology, combining modular design with advanced engineering to deliver unmatched performance and versatility. Developed by HEBEI YIDI IMPORT AND EXPORT TRADING CO.,LTD., this product is designed to meet the evolving demands of modern manufacturing environments.

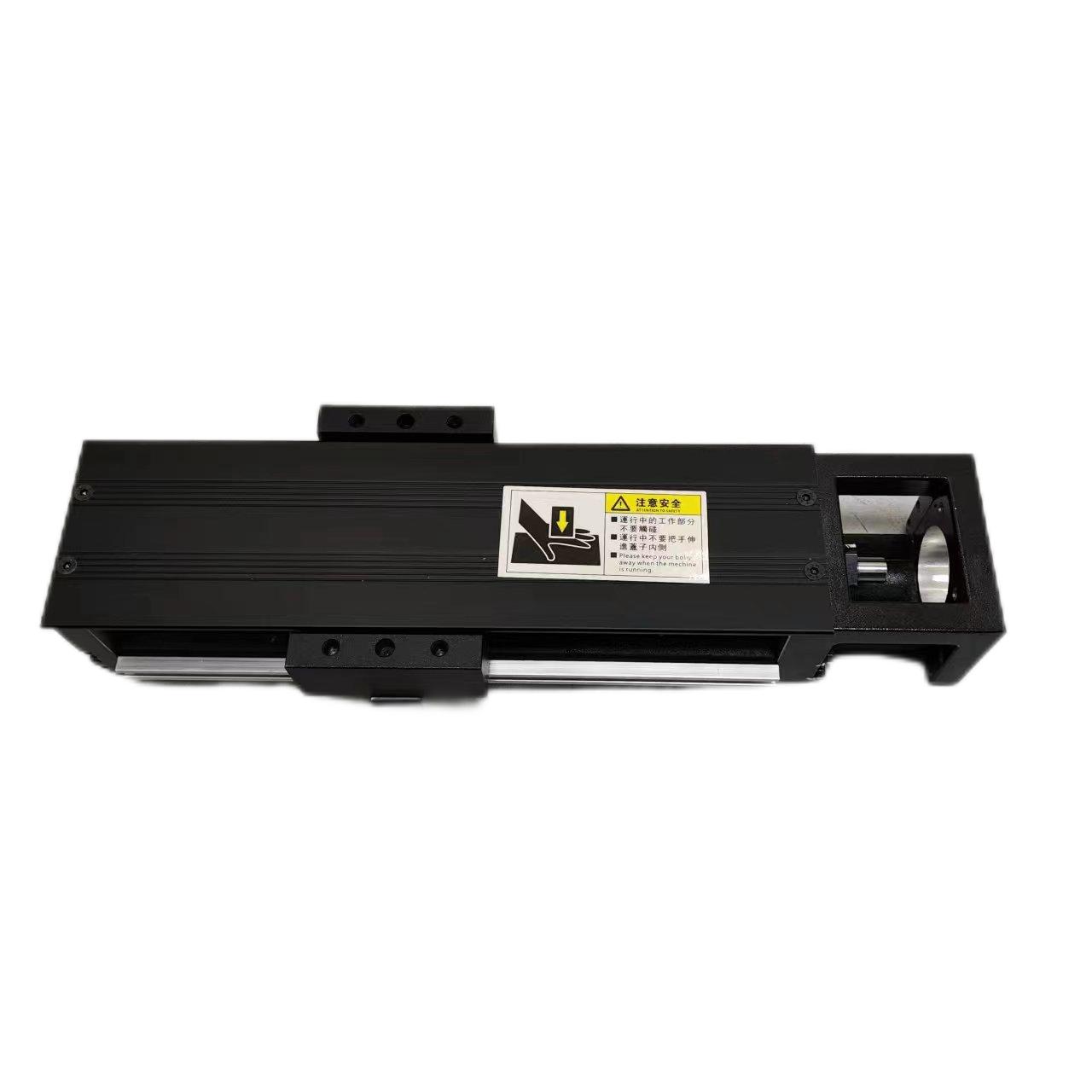

Image: Modular design of the KK Series Linear Module
Product Overview
The KK Series Linear Module is a high-precision automated motion unit that integrates linear guides, ball screws (or synchronous belts), and drive systems. This modular approach allows for flexible configuration, enabling users to optimize space and reduce maintenance costs while improving production efficiency and reliability.
Core Components and Technical Specifications
The module's design incorporates three critical components:
- Transmission Components: Ball screws, synchronous belts (for long strokes), or gear racks (for heavy-duty scenarios).
- Guiding Components: High-quality steel linear guide rails for smooth and precise motion.
- Drive Units: Servo motors, stepper motors, or cylinders to suit diverse application requirements.
Product Specifications Table
| Model | Stroke Range (mm) | Load Capacity (kg) | Drive Type | Speed (mm/s) | Accuracy (μm) |
|---|---|---|---|---|---|
| KK86 | 50-1000 | 200-500 | Ball Screw | 300-800 | ±5 |
| KK60 | 30-800 | 150-400 | Synchronous Belt | 200-600 | ±10 |
Image: Synchronous belt drive configuration
Key Features and Advantages
The KK Series Linear Module excels in several critical areas:
- Modular Design: Facilitates easy combination and expansion, reducing system complexity and maintenance costs.
- Flexibility: Offers a wide range of strokes, loads, and drive modes to adapt to various industrial automation needs.
- High Precision: Ensures consistent performance with accuracy up to ±5 μm, critical for applications like semiconductor manufacturing.
- Durability: Constructed with high-strength materials to withstand demanding environments.
- Space Efficiency: Optimized layout minimizes footprint while maximizing operational capacity.

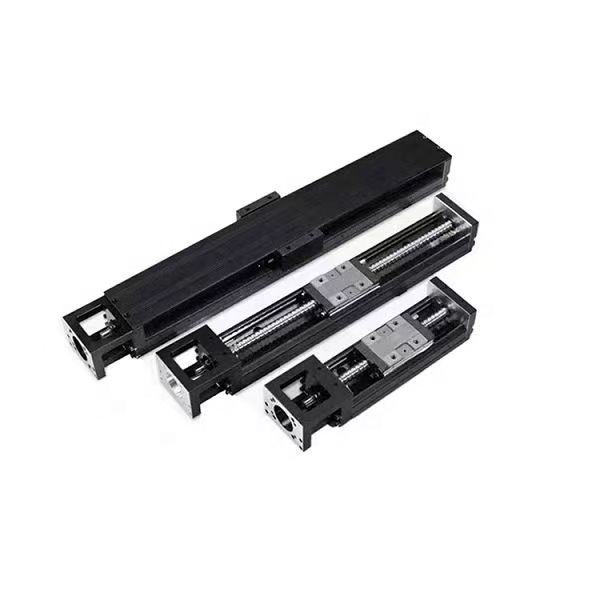

Image: Ball screw linear actuator configuration
Applications in Industrial Automation
The versatility of the KK Series Linear Module makes it suitable for a wide range of applications:
- Automotive Manufacturing: Used in assembly lines for precise component positioning and welding.
- Electronics Production: Ideal for PCB assembly and semiconductor handling due to high accuracy.
- Medical Equipment: Ensures reliable motion control in diagnostic devices and surgical robots.
- Logistics and Packaging: Enhances efficiency in conveyor systems and automated storage solutions.
- 3D Printing: Provides stable linear motion for high-precision additive manufacturing.
Company Background: HEBEI YIDI IMPORT AND EXPORT TRADING CO.,LTD.
As a leading supplier of motion control solutions, HEBEI YIDI IMPORT AND EXPORT TRADING CO.,LTD. has established itself as a trusted name in the industry. The company specializes in designing and manufacturing high-performance linear motion systems, catering to global clients across multiple sectors. With a focus on innovation and quality, HEBEI YIDI ensures that its products meet the highest standards of reliability and efficiency.
Industry Standards and Compliance
The KK Series Linear Module adheres to international standards for precision engineering. According to the National Institute of Standards and Technology (NIST), "Precision manufacturing relies on rigorous measurement and calibration protocols to ensure consistency and reliability in industrial applications." This aligns with the module's design philosophy, which emphasizes accuracy and durability. NIST's research on metrology underscores the importance of standardized measurements in advancing technological innovation.
Conclusion
The KK Series Linear Module exemplifies the synergy between modular design and cutting-edge engineering. Its adaptability, precision, and robust construction make it an essential component in modern industrial automation. By partnering with HEBEI YIDI IMPORT AND EXPORT TRADING CO.,LTD., businesses can leverage this technology to enhance productivity and stay competitive in a rapidly evolving market.
