The Uncompromising Standards of 3-Axis Modules
In the realm of industrial automation, precision is non-negotiable. 3-axis linear modules represent the pinnacle of motion control technology, engineered to meet the most demanding standards in manufacturing, robotics, and beyond. These modules—comprising X, Y, and Z axes—deliver micron-level accuracy, repeatability, and speed, making them indispensable for tasks requiring flawless movement, such as CNC machining, semiconductor assembly, and high-speed pick-and-place operations.
!["Engineered for Perfection: Where 3-Axis Modules Meet Your Uncompromising Standards"](https://www.ydmotion.com/images/11-3674.webp ""Engineered for Perfection: Where 3-Axis Modules Meet Your Uncompromising Standards"")
Read More About YIDI Linear 3-AXIS Module
Core Functional Advantages
1. Precision Redefined
The core advantage of 3-axis modules lies in their ability to translate digital commands into physical motion with near-perfect fidelity. Advanced servo motors, ball screw mechanisms, and linear guides work in harmony to achieve 0.01mm positioning accuracy, ensuring that every movement aligns with the design intent. This level of precision eliminates waste, reduces rework, and enhances product consistency—critical in industries like aerospace and medical device manufacturing.
Key functional features include:
- Customizable Stroke Lengths: Available in a wide range of stroke lengths to accommodate diverse application scenarios.
- Adaptive Load Capacity: Engineered to handle varying load requirements, ensuring optimal performance across different industrial settings.
- Multiple Drive Modes: Supports ball screw, synchronous belt, and gear rack configurations to suit specific operational needs.

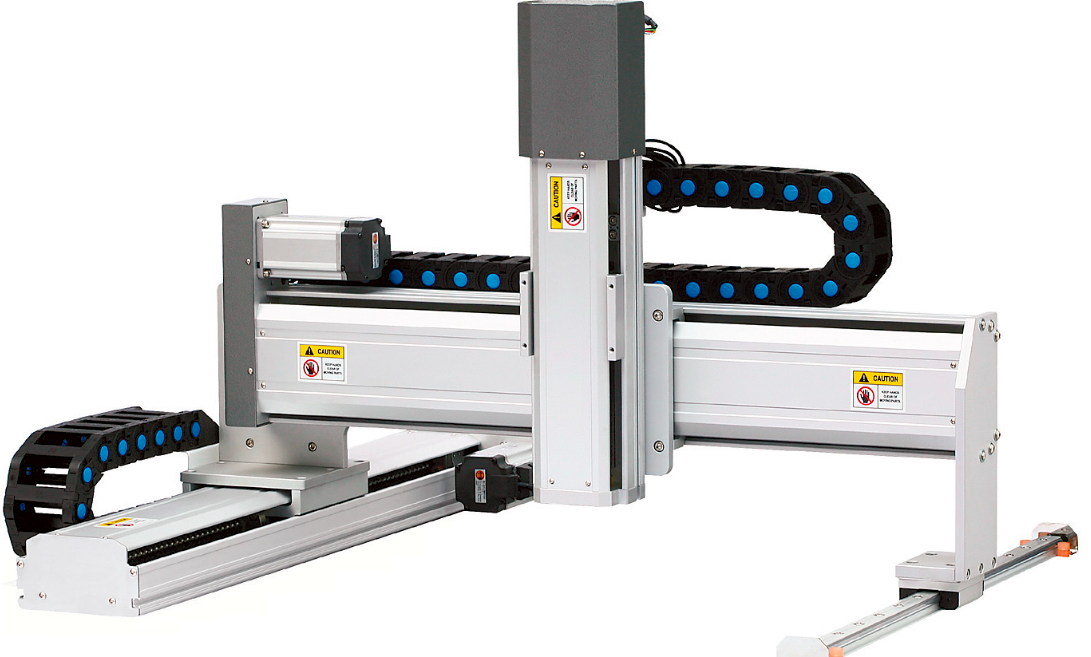

!["Engineered for Perfection: Where 3-Axis Modules Meet Your Uncompromising Standards"](https://www.ydmotion.com/images/1758613339535. ""Engineered for Perfection: Where 3-Axis Modules Meet Your Uncompromising Standards"")
Read More About Linear Module
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | KK86, KK60 |
| Stroke Range | 50mm - 2000mm |
| Load Capacity | 100N - 5000N |
| Drive Modes | Ball Screw, Synchronous Belt, Gear Rack |
| Precision | ±0.02mm (ball screw mode) |
| Speed Range | 5 - 100mm/s |
!["Engineered for Perfection: Where 3-Axis Modules Meet Your Uncompromising Standards"](https://www.ydmotion.com/images/11-3615.webp ""Engineered for Perfection: Where 3-Axis Modules Meet Your Uncompromising Standards"")
Read More About Linear Module
2. Adaptability Across Industries
Unlike rigid automation systems, 3-axis modules are highly configurable. They can be integrated into existing production lines or scaled for custom applications. For example:
-
Electronics: Enabling precise PCB component placement in compact spaces.
-
Automotive: Facilitating robotic welding with flawless trajectory control.
-
Pharmaceutical: Ensuring sterile fill-finish operations with zero contamination risk.
This versatility stems from modular designs that allow engineers to tailor speed, load capacity, and stroke length to specific needs.
3. The Future of Motion Control
As Industry 4.0 evolves, 3-axis modules are becoming smarter. Embedded sensors and IoT connectivity enable real-time performance monitoring, predictive maintenance, and adaptive adjustments. Some models now incorporate AI-driven path optimization, further reducing cycle times and energy consumption. This convergence of mechanical precision and digital intelligence heralds a new era of "self-correcting" automation.
Conclusion
Conclusion: Perfection as a Benchmark
For engineers and manufacturers, 3-axis modules are more than components—they are the embodiment of uncompromising standards. From their inception to their future iterations, these modules continue to push the boundaries of what’s possible, proving that in automation, perfection is not a destination but a perpetual pursuit.
