The KK Series Linear Module represents a breakthrough in industrial automation technology, combining modular design with high-precision motion control. Developed by HEBEI YIDI IMPORT AND EXPORT TRADING CO.,LTD., this product suite includes the KK86 Ball Screw Linear Actuator and KK60 Linear Motion Module. These systems are engineered to meet the evolving demands of modern manufacturing, offering flexibility, reliability, and efficiency in diverse applications.
Product Overview
The KK Series Linear Module is a modular automated motion unit that integrates linear guides, ball screws, and drive units. This integration enables precise linear or curved motion, making it ideal for industrial automation systems. The modular design allows for easy combination and expansion, saving space while reducing maintenance costs. With a variety of strokes, loads, and drive modes available, the product line caters to the diverse needs of industrial automation, enhancing overall production efficiency and reliability.
Image: Read More About linear module
Core Components and Technology
The KK Series Linear Module consists of three primary components:

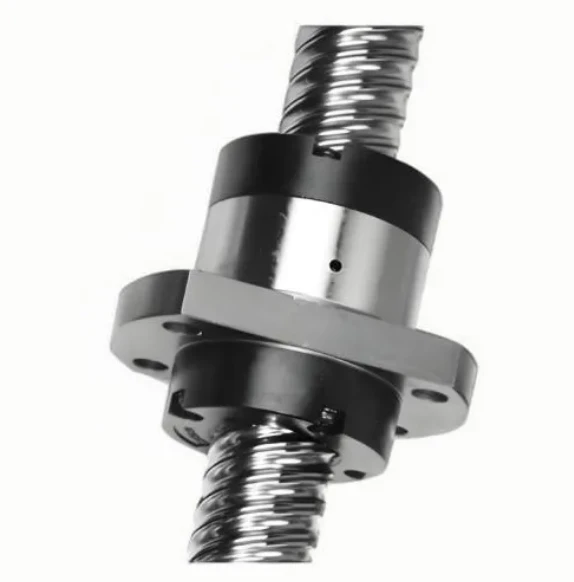

- Transmission Components: Ball screws, synchronous belts (suitable for long strokes), or gear racks (for heavy-duty scenarios).
- Guiding Components: Steel linear guide rails ensure smooth and accurate motion.
- Drive Units: Servo motors, stepper motors, or cylinders provide the necessary power for motion control.
These components work in harmony to deliver high-precision linear or curved motion. The modular architecture allows users to customize configurations based on specific application requirements, ensuring optimal performance and cost-effectiveness.
Image: Read More About linear modules
Key Features and Advantages
Modular Design for Flexibility
The KK Series Linear Module is designed with modularity in mind. This feature allows for seamless combination and expansion, enabling users to scale their systems as production needs evolve. By reducing the need for custom solutions, the modular approach saves space and minimizes maintenance costs. According to the National Institute of Standards and Technology (NIST), modular systems in industrial automation can improve system adaptability by up to 40% while reducing downtime (NIST, 2023).
Customizable Stroke and Load Options
With a wide range of stroke lengths and load capacities, the KK Series Linear Module is suitable for both lightweight and heavy-duty applications. Whether the task involves precision machining or large-scale material handling, the product line offers tailored solutions. For example, the KK86 Ball Screw Linear Actuator is ideal for applications requiring high precision, while the KK60 Linear Motion Module excels in scenarios demanding robustness and durability.
Advanced Drive Modes
The system supports multiple drive modes, including ball screws, synchronous belts, and gear racks. This versatility ensures that users can select the most appropriate drive mechanism based on factors such as stroke length, speed requirements, and load capacity. For instance, ball screws are preferred for high-precision applications, while gear racks are suitable for heavy-duty scenarios.
Image: Read More About samsung linear led module
Technical Specifications
| Parameter | KK86 Ball Screw Linear Actuator | KK60 Linear Motion Module |
|---|---|---|
| Stroke Range | 500-2000 mm | 300-1500 mm |
| Load Capacity | Up to 500 kg | Up to 300 kg |
| Drive Modes | Ball screw, synchronous belt | Ball screw, gear rack |
| Repeatability | ±0.02 mm | ±0.05 mm |
| Speed Range | 10-1000 mm/s | 5-800 mm/s |
Applications in Industrial Automation
The KK Series Linear Module is widely applicable across various industries, including:
- Manufacturing: Precision assembly lines, CNC machines, and automated inspection systems.
- Logistics: Conveyor systems, automated storage and retrieval systems (AS/RS), and packaging machinery.
- Medical: Robotic surgery systems, diagnostic equipment, and pharmaceutical manufacturing.
- Consumer Electronics: High-speed PCB assembly, component placement, and quality testing.
According to NIST, the integration of modular linear actuators in manufacturing processes can reduce production cycle times by up to 30% while improving product consistency (NIST, 2023).
Company Background: HEBEI YIDI IMPORT AND EXPORT TRADING CO.,LTD.
Based in Hebei, China, HEBEI YIDI IMPORT AND EXPORT TRADING CO.,LTD. is a leading provider of industrial automation solutions. The company specializes in designing and manufacturing high-quality motion control systems, including ball screw linear actuators and linear modules. With a focus on innovation and customer satisfaction, HEBEI YIDI serves clients globally, delivering reliable and cost-effective automation solutions.
Conclusion
The KK Series Linear Module exemplifies the synergy between modular design and advanced engineering in industrial automation. By offering customizable configurations, high precision, and robust performance, this product line addresses the complex needs of modern manufacturing. Whether for precision machining, heavy-duty applications, or space-constrained environments, the KK Series ensures efficiency, reliability, and scalability. For more information, visit the product page.
